Overview Control Elements; View Motherboard - D+H WRZ Originalbetriebsanleitung

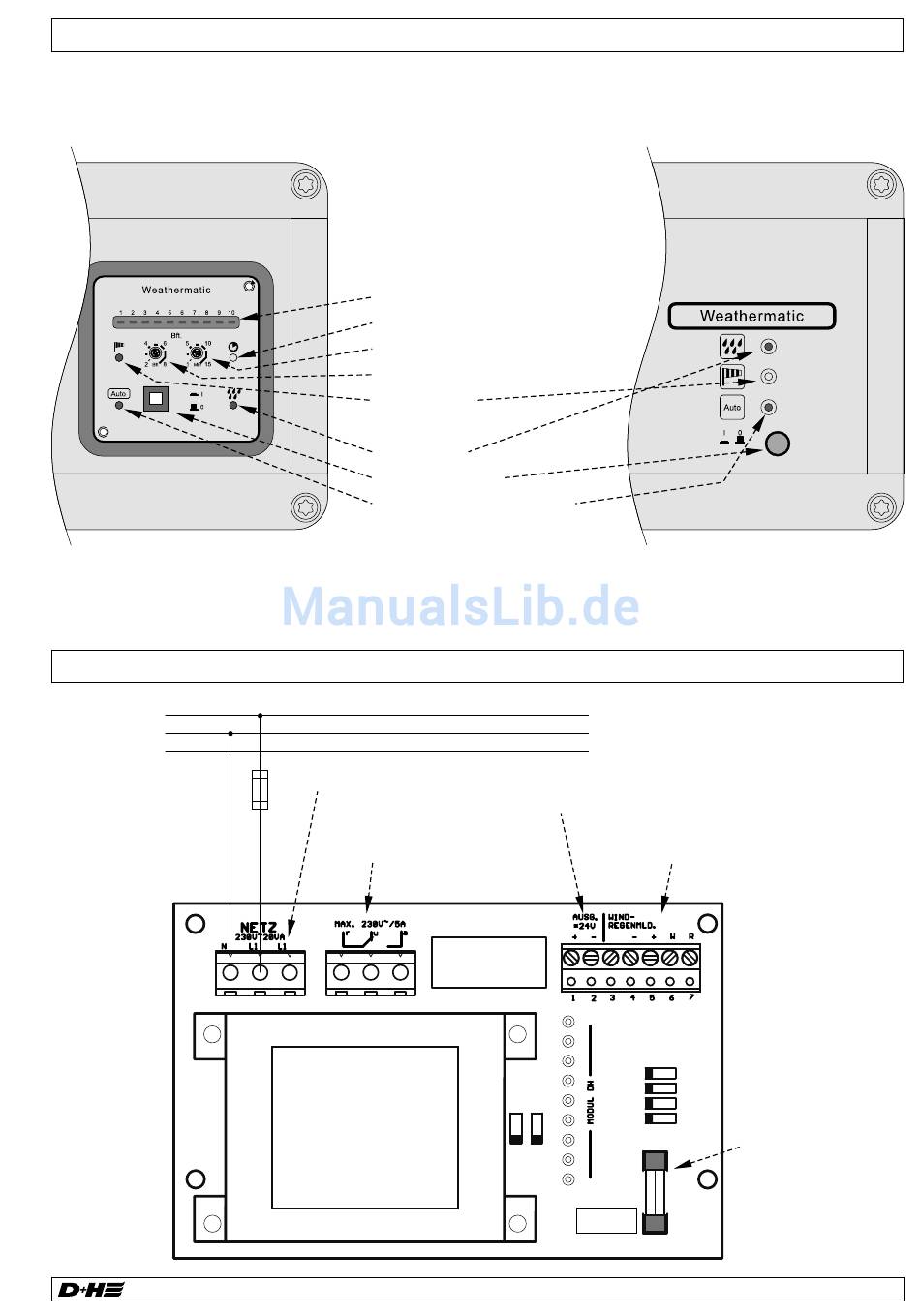

Overview control elements

WRZ 8000

View motherboard

L
N
PE
230 V AC,
50 Hz
99.820.19 3.0/10/13
Display wind speed
Display wind signal memory function
Adjustment signal storage time
Adjustment wind force
Display wind
Display rain
Automatic switch
Display automatic ON/OFF
Mains supply
Switching output for
230 V AC drives
English
24 V DC connecxtion
for TRL 8
24 V DC connection for
wind/rain transmitter
1 2 3 4 5 6
F1,25A
WRZ
7
Fuse for
24 V DC outputs
(Spare fuse in
the cover)
9/12
WRZ / WRZ 8000
