Product information
2.1
Minimum system requirements
Your Mixmaster is designed to operate with any Automotive PC Oscilloscope from
Pico Technology. Please check that your computer meets the requirements stated in
the User Manual for the oscilloscope.
2.2

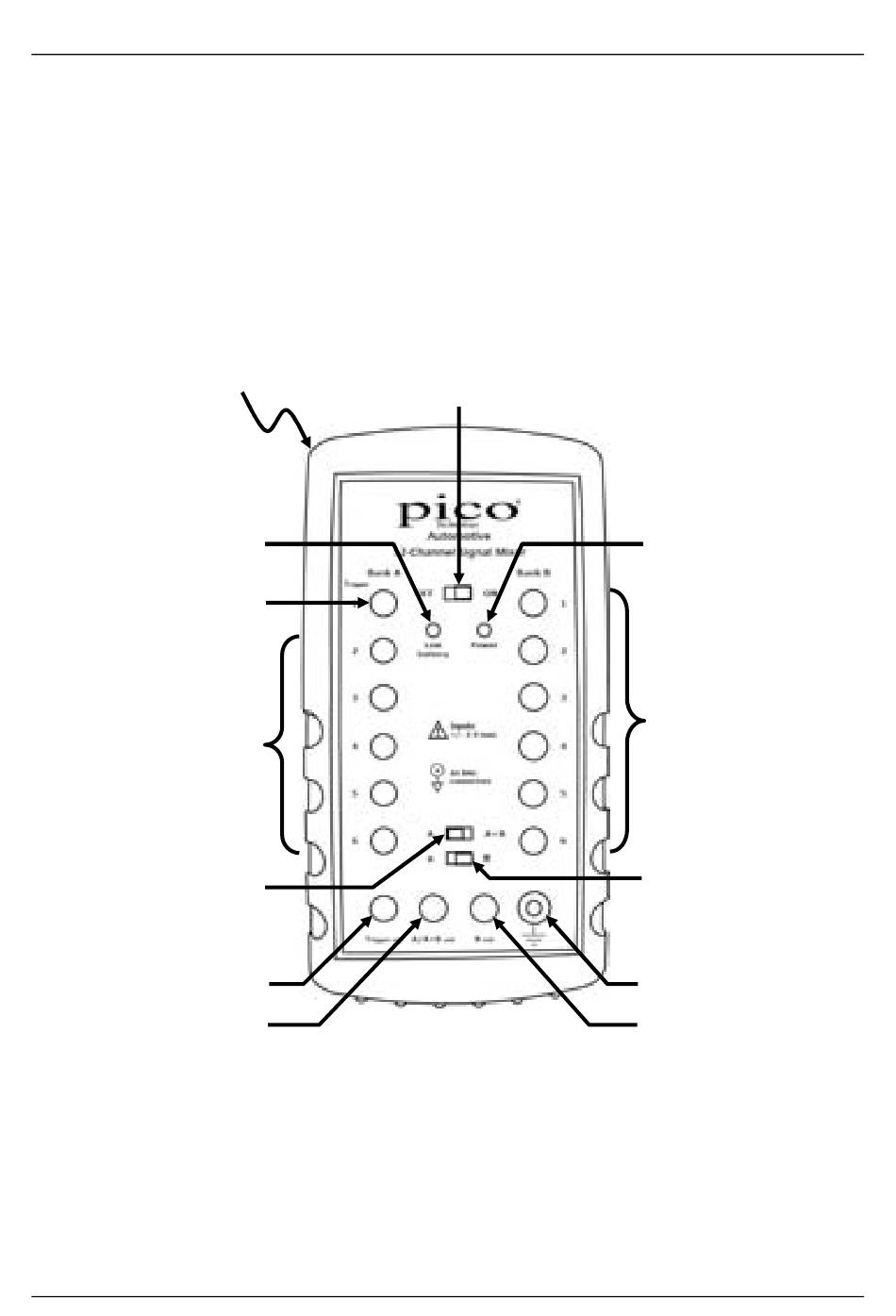

Connectors and controls
Battery compartment
underneath
Low battery indicator
Bank A cylinder 1
and trigger input
Bank A
cylinders 2 to 6
Output A selector switch
Trigger output
Output A
DO120-1
inputs
Power
switch
Mixmaster User Guide
Power indicator
Bank B
cylinders 1 to 6
inputs
Bank B polarity switch
Ground terminal
Output B
