Appearance; Control Panel - PRO Intellect Technology 6024S Gebrauchsanweisung

3
2
5
4
Fig.1
1
2
3
4
5
6
Fig.2
6

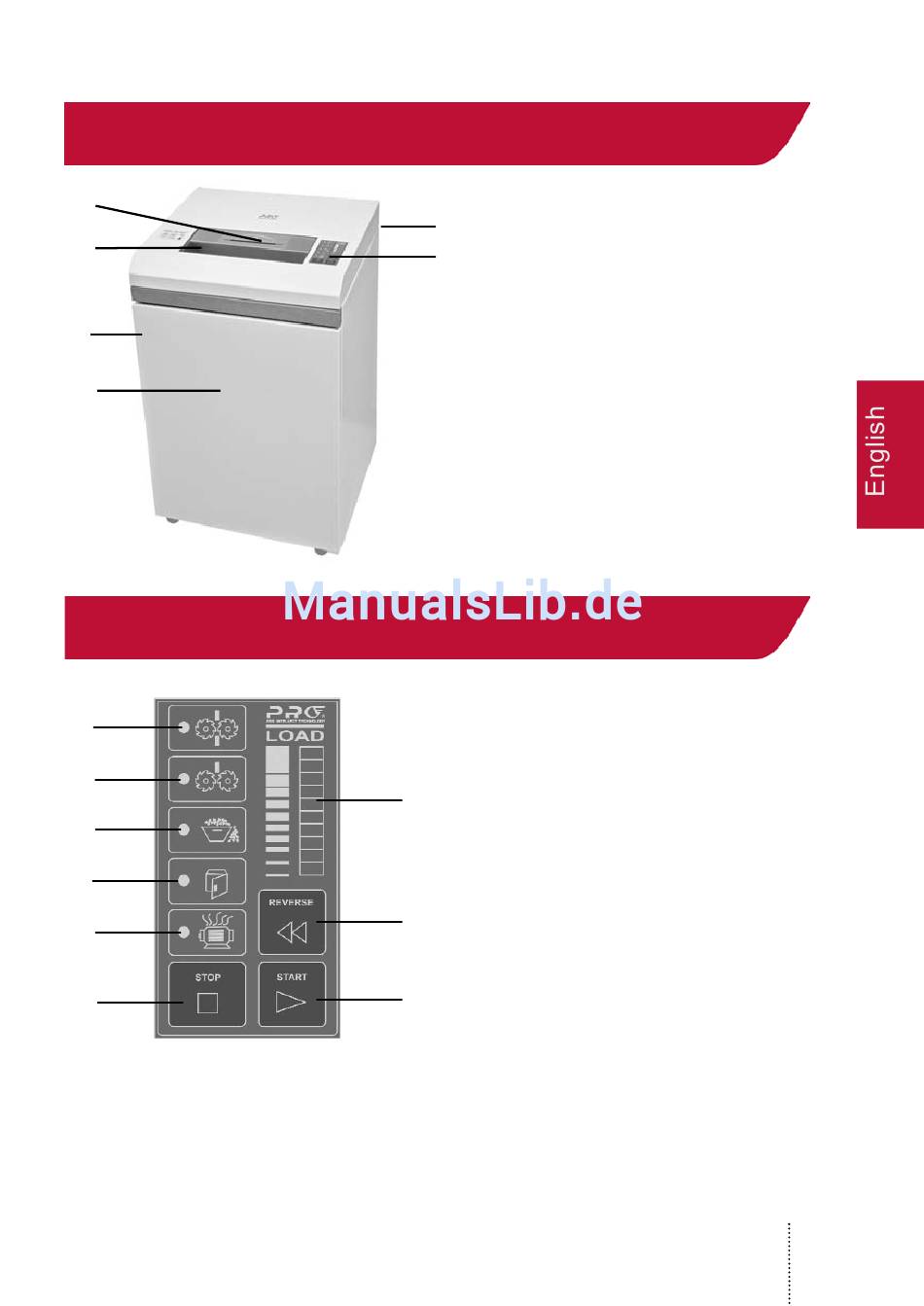

1. Control panel

1
2. Paper receiving chute
3. CD receiving chute
4. Opening door
5. Door opening handle
6. Power switcher
(on the back panel)
1. Start indicator
2. Reverse motion indicator
3. Waste bin overloading indicator
4. Opened door indicator. Shows, that the door
is not opened.
5. Shredder engine overheating indicator
9
6. 'Stop' button stops motion of shredder
7. 'Start' button switches on the engine for 1
minute (until the sheet in the receiving chute is
terminated, if start indicator is on).
8. 'Reverse' button of back motion switches on
8
the engine in the opposite direction (reverse)
for 1,5 sec.
9. Receiving chute loading indicator. The below
segment of the indictor shows the existence of
7
network. The larger number of working
indicators corresponds with the higher loading.
In case of overloading the max value shown of
the indicator, shredder stops and reverse
motion is turned on.

Appearance

Control panel
11
