Qlima S 2335 Bedienungsanleitung Seite 45

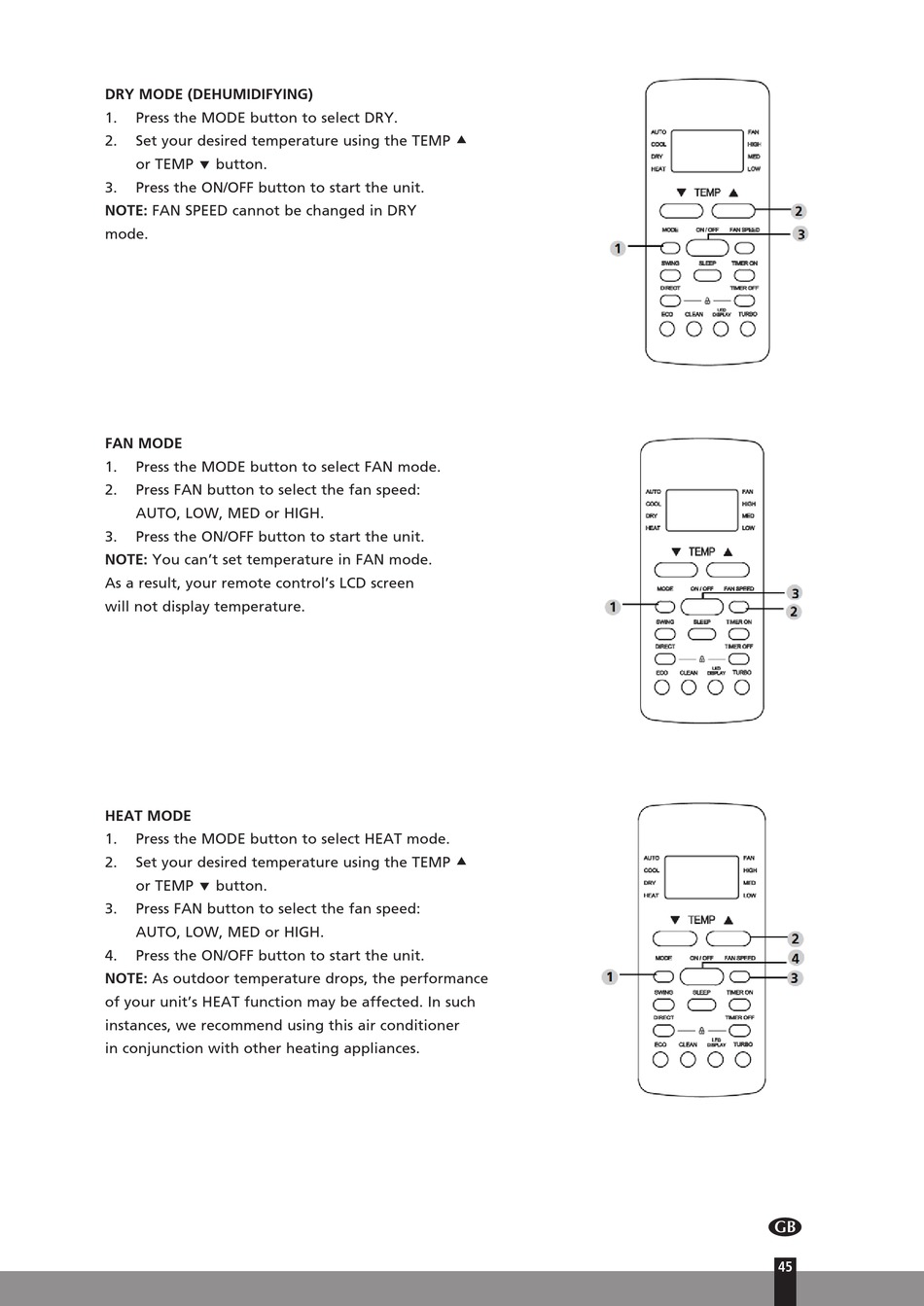

DRY MODE (DEHUMIDIFYING)
1. Press the MODE button to select DRY.
2. Set your desired temperature using the TEMP 
or TEMP ‚ button.
3. Press the ON/OFF button to start the unit.
NOTE: FAN SPEED cannot be changed in DRY
mode.
FAN MODE
1. Press the MODE button to select FAN mode.
2. Press FAN button to select the fan speed:
AUTO, LOW, MED or HIGH.
3. Press the ON/OFF button to start the unit.
NOTE: You can't set temperature in FAN mode.
As a result, your remote control's LCD screen
will not display temperature.
HEAT MODE
1. Press the MODE button to select HEAT mode.
2. Set your desired temperature using the TEMP 
or TEMP ‚ button.
3. Press FAN button to select the fan speed:
AUTO, LOW, MED or HIGH.
4. Press the ON/OFF button to start the unit.
NOTE: As outdoor temperature drops, the performance
of your unit's HEAT function may be affected. In such
instances, we recommend using this air conditioner
in conjunction with other heating appliances.
4
45
