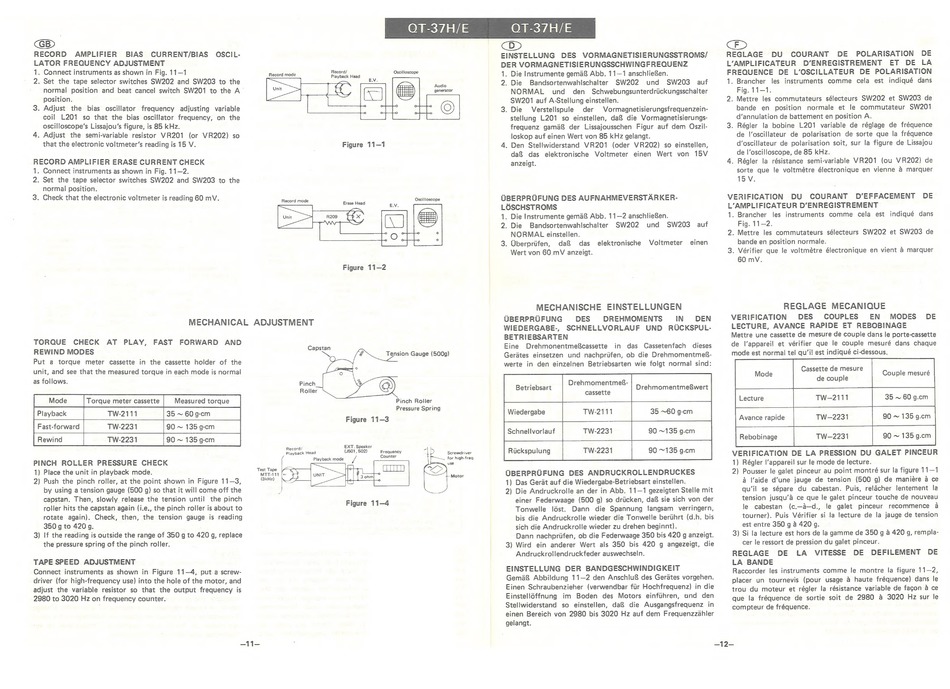

RECORD
AMPLIFIER
BIAS
CURRENT/BIAS
OSCIL-
LATOR
FREQUENCY
ADJUSTMENT
1. Connect instruments as shown in Fig. 11—1
2. Set the tape selector switches SW202
and SW203
to the
normal
position
and beat cancel switch SW201
to the A-
position.
3. Adjust
the
bias
oscillator
frequency
adjusting
variable
coil
L201
so that the bias oscillator frequency,
on the
oscilloscope's Lissajou's figure, is 85 kHz.
4. Adjust
the semi-variable
resistor VR201
(or VR202)
so
that the electronic voltmeter's reading is 15 V.
RECORD AMPLIFIER ERASE CURRENT CHECK
1. Connect instruments as shown in Fig. 11—2.
2. Set the tape selector switches SW202
and SW203
to the
normal position.
3. Check that the electronic voltmeter is reading 60 mV.
Record mode
Record/
Playback Head
QT-37H/E
Oscilloscope
Audio
generator
Figure
11-1
Record mode
Erase Head
Oscilloscope
Figure
11-2
MECHANICAL
ADJUSTMENT
TORQUE
CHECK
AT
PLAY,
FAST
FORWARD
AND
REWIND MODES
Put
a torque
meter
cassette
in the cassette
holder of the
unit, and see that the measured torque in each mode is normal
as follows.
|
Mode
| Torque meter cassette
Measured torque
Playback
TW-2111
35 ~ 60 g-cm
TW-2231
90 ~ 135 g-cm
TW-2231
90 ~ 135 g-cm
Fast-forward
|
Rewind
PINCH
ROLLER
PRESSURE
CHECK
1) Place the unit in playback mode.
2) Push the pinch roller, at the point shown in Figure 11—3,
by using a tension gauge (500 g) so that it will come off the
capstan. Then, slowly release the tension until
the pinch
roller hits the capstan again (i.e., the pinch roller is about to
rotate
again). Check,
then, the tension gauge
is reading
350 g to 420 g.
3) If the reading is outside the range of 350 g to 420 g, replace
the pressure spring of the pinch roller.
TAPE SPEED
ADJUSTMENT
Connect
instruments
as shown
in Figure 11-4,
put a screw-
driver (for high-frequency use) into the hole of the motor, and
adjust the variable
resistor so that the output frequency
is
2980 to 3020 Hz on frequency counter.
Test Tape
Capstan
Pinch
Roller
Record/
Playback Head
Playback mode
mtt-111
[+
3
(3kHz)
-11—-
Tension Gauge (500g)
Pinch Roller
Pressure Spring
Figure 11-3
EXT. Speaker
(J501, 502)
Frequency
al
Screwdriver
is
Counter
—
for high-freq
mo}
@),
3 ohm
Motor
©
2
Figure 11—4
QT-37H/E
CD)
EINSTELLUNG
DES.
VORMAGNETISIERUNGSSTROMS/
DER VORMAGNETISIERUNGSSCHWINGFREQUENZ
1. Die Instrumente gema& Abb. 11—1 anschliefen.
2. Die
3. Die
Bandsortenwahlschalter
SW202
und
SW203
auf
NORMAL
und
den
Schwebungsunterdriickungsschalter
SW201 auf A-Stellung einstellen.
Verstellspule
der
Vormagnetisierungsfrequenzein-
stellung
L201
so einstellen, daf& die Vormagnetisierungs-
frequenz gama&
der Lissajousschen
Figur auf dem Oszil-
loskop auf einen Wert von 85 kHz gelangt.
4. Den
Stellwiderstand
VR201
(oder VR202)
so einstellen,
da&
das
elektronische
Voltmeter
einen
Wert
von
15V
anzeigt.
UBERPRUFUNG DES AUFNAHMEVERSTARKER-
LOSCHSTROMS
1.
2. Die
Die Instrumente gema& Abb. 11—2 anschliefen.
Bandsortenwahlschalter
SW202
und
SW203
auf
NORMAL einstellen.
MECHANISCHE
EINSTELLUNGEN
UBERPRUFUNG
DES
DREHMOMENTS
IN
DEN
WIEDERGABE-,
SCHNELLVORLAUF
UND
RUCKSPUL-
BETRIEBSARTEN
Eine
DrehmonentmeRcassette
in das
Cassetenfach
dieses
Gerates
einsetzen
und nachprifen, ob die Drehmomentmef-
werte
in den einzelnen
Betriebsarten wie folgt normal sind:
DrehmomentmeBR-
cassette
Betriebsart
DrehmomentmeRwert
Wiedergabe
TW-2111
35 ~60 g-cm
Schnellvorlauf
TW-2231
90 ~135 g-cm
TW-2231
90 ~135 g.cm
Rickspulung
UBERPRUFUNG
DES
ANDRUCKROLLENDRUCKES
1) Das Gerat auf die Wiedergabe-Betriebsart einstellen.
Dann nachpriifen, ob die Federwaage 350 bis 420 g anzeigt.
3) Wird
ein anderer Wert als 350 bis 420 g angezeigt, die
Andruckrollendruckfeder auswechseln.
EINSTELLUNG
DER
BANDGESCHWINDIGKEIT
Gema&
Abbildung
11—2 den Anschlu& des Gerates vorgehen.
Einen Schraubenzieher
(verwendbar fiir Hochfrequenz)
in die
Einstell6ffnung
im
Boden
des
Motors
einfiihren,
und
den
Stellwiderstand
so
einstellen,
da&
die Ausgangsfrequenz
in
einen Bereich von 2980 bis 3020 Hz auf dem Frequenzzahler
gelangt.
REGLAGE
DU
COURANT
DE
POLARISATION
DE
L'AMPLIFICATEUR
D'ENREGISTREMENT
ET
DE
LA
FREQUENCE
DE
L'OSCILLATEUR
DE
POLARISATION
1. Brancher
les instruments
comme
cela
est
indiqué
dans
Fig. 11-1.
2. Mettre
les commutateurs
sélecteurs SW202
et SW203 de
bande
en
position
normale
et le commutateur
SW201
d'annulation de battement en position A.
3. Régler
la bobine
L201
variable de réglage de fréquence
de |'oscillateur
de polarisation
de sorte que la fréquence
d'oscillateur de polarisation soit, sur la figure de Lissajou
de I'oscilloscope, de 85 kHz.
4. Régler la résistance
semi-variable VR201
(ou VR202)
de
sorte
que
le voltmétre électronique en vienne a marquer
15V.
VERIFICATION
DU
COURANT
D'EFFACEMENT
DE
L'AMPLIFICATEUR
D'ENREGISTREMENT
1. Brancher
les instruments
comme
cela
est
indiqué
dans
Fig. 11-2.
2. Mettre
les commutateurs
sélecteurs
SW202
et SW203
de
bande en position normale.
3. Vérifier que le voltmétre électronique en vient 4 marquer
60 mV.
REGLAGE
MECANIQUE
VERIFICATION
DES
COUPLES
EN
MODES
DE
LECTURE,
AVANCE
RAPIDE
ET REBOBINAGE
Mettre une cassette de mesure de couple dans le porte-cassette
de
l'appareil
et vérifier que
le couple
mesuré
dans chaque
mode est normal tel qu'i! est indiqué ci-dessous.
Cassette de mesure
;
Couple mesuré
de couple
Lecture
TW-2111
90 ~ 135 g.cm
Avance rapide
TW—2231
Rebobinage
TW-2231
VERIFICATION
DE LA PRESSION
DU GALET
PINCEUR
1) Régler l'appareil sur le mode de lecture.
3) Si la lecture est hors de la gamme de 350 g a 420 g, rempla-
cer le ressort de pression du galet pinceur.
LA BANDE
Raccorder
les instruments comme
le montre
la figure 11—2,
placer un
tournevis
(pour usage a haute fréquence) dans le
trou du moteur et régler la résistance variable de fagon a ce
que la fréquence
de sortie soit de 2980
a 3020 Hz sur le
compteur de fréquence.
=4o=
