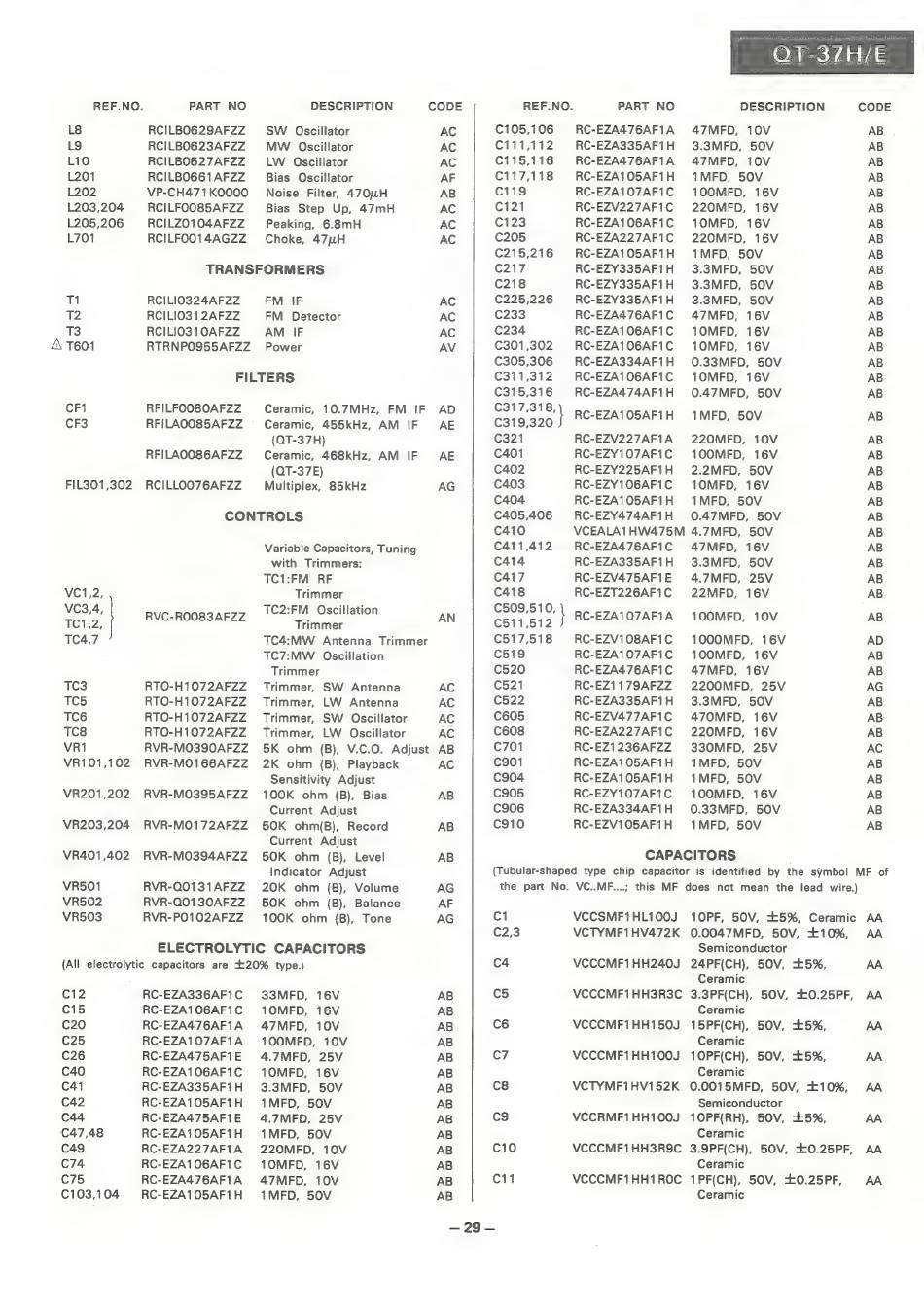

OT-37H/E |
REF.NO. PART NO DESCRIPTION CODE REF.NO. PART NO DESCRIPTION CODE
L8 RCILBOG29AFZZ SW Oscillator AC C105,106 RC-EZA476AF1A 47MFD, 10V AB.
L9 RCILBO623AFZZ MW Oscillator AC C111,112 RC-EZA335AF1H 3.3MFD, 50V AB
L1i0 RCILBO627AFZZ LW Oscillator AC C115,116 RC-EZA476AF1A 47MFD, 10V AB
L201 RCILBOG61AFZZ Bias Oscillator AF C117,118 RC-EZA105AF1H 1MFD, 50V AB
L202 VP-CH471KO000 Noise Filter, 4704H AB c119 RC-EZA107AF1C 100MFD, 16V AB
L203,204 RCILFOO85AFZZ Bias Step Up, 47mH AC C121 RC-EZV227AF1C 220MFD, 16V AB
L205,206 RCILZO104AFZZ Peaking, 6.8mH AC C123 RC-EZA106AF1C 10MFD, 16V AB
L701 RCILFOO14AGZZ_ Choke, 47H AC C205 RC-EZA227AF1C 220MFD, 16V AB
C215,216 RC-EZA105AF1H 1MEFD, 50V AB
TRANSFORMERS C217 RC-EZY335AF1H 3.3MFD, 50V AB
C218 RC-EZY335AF1H 3.3MFD, 50V AB
11 RCILIO324AFZZ FM IF AC C225,226 RC-EZY335AF1H 3.3MFD, 50V AB
T2 RCILIO312AFZZ FM Detector AC C233 RC-EZA476AF1C 47MFD, 16V AB
T3 RCILIO310AFZZ° AM IF AC C234 RC-EZA106AF1C 10MFD, 16V AB
A T601 RTRNPOOSS5AFZZ Power AV C301,302 RC-EZA106AF1C 10MFD, 16V AB
C305,306 RC-EZA334AF1H 0.33MFD, 50V AB
FILTERS C311,312 RC-EZA106AF1C 10MFD, 16V AB
C315,316 RC-EZA474AF1H 0.47MFD, 50V AB
CF1 RFILFOOSOAFZZ = Ceramic, 10.7MHz, FM IF AD C317,318,
CF3 RFILAOOS5AFZZ_~ = Ceramic, 455kHz, AM IF AE ¢319,320 } REBZMEPMEIE, tMED. BOY AB
(QT-37H) C321 RC-EZV227AF1A 220MFD, 10V AB
RFILAOO86AFZZ Ceramic, 468kHz, AM IF AE C401 RC-EZY107AF1C 100MFD, 16V AB
(QT-37E) C402 RC-EZY225AF1H 2.2MFD, 50V AB
FIL301,302 RCILLOO76AFZZ Multiplex, 85kHz AG C403 RC-EZY106AF1C 10MFD, 16V AB
C404 RC-EZA105AF1H 1MFD, 50V AB
CONTROLS C405,406 RC-EZY474AF1H 0.47MFD, 50V AB
C410 VCEALA1HW475M 4.7MFD, 50V AB
Variable Capacitors, Tuning C411,412 RC-EZA476AF1C 47MFD, 16V AB
with Trimmers: C414 RC-EZA335AF1H 3.3MFD, 50V AB
TC1:FM RF C417 RC-EZV475AF1E 4.7MFD, 25V AB
VC1,2, Trimmer C418 RC-EZT226AF1C 22MFD, 16V AB
VC3,4, TC2:FM Oscillation C509,510,
11.2, RVC-ROO83AFZZ witha AN 511.512 \ RC-EZA107AF1A 100MFD, 10V AB
TC4,7 TC4:MW Antenna Trimmer C517,518 RC-EZV108AF1C 1000MFD, 16V AD
TC7:MW Oscillation C519 RC-EZA107AFiC 10OMFD, 16V AB
Trimmer C520 RC-EZA476AF1C 47MFD, 16V AB
Iic3 RTO-H1072AFZZ Trimmer, SW Antenna AC C521 RC-EZ1179AFZZ 2200MFD, 25V AG
TC5 RTO-H1072AFZZ Trimmer, LW Antenna AC C522 RC-EZA335AF1H 3.3MFD, 50V AB
TC6 RTO-H1072AFZZ Trimmer, SW Oscillator AC C605 RC-EZV477AF1C 470MFD, 16V AB
TCs RTO-H1072AFZZ Trimmer, LW Oscillator AC c608 RC-EZA227AF1C 220MFD, 16V AB
VR1 RVR-MO390AFZZ 5K ohm (B), V.C.O. Adjust AB C701 RC-EZ1236AFZZ 330MFD, 25V AC
VR101,102 RVR-MO166AFZZ 2K ohm (B), Playback AC cg01 RC-EZA105AF1H 1MFD, 50V AB
Sensitivity Adjust C904 RC-EZA105AF1H 1MFD, 50V AB
VR201,202 RVR-MO395AFZZ 100K ohm (B), Bias AB C905 RC-EZY1O7AF1C 100MFD, 16V AB
Current Adjust C906 RC-EZA334AF1H 0O.33MFD, 50V AB
VR203,204 RVR-MO172AFZZ 50K ohm(B), Record AB c910 RC-EZVIO5AF1H 1MFD, 50V AB
Current Adjust
VR401,402 RVR-MO394AFZZ 50K ohm (B), Level AB CAPACITORS
Indicator Adjust (Tubular-shaped type chip capacitor is identified by the symbol MF of
VR501 RVR-Q0131AFZZ 20K ohm (B), Volume AG the part No. VC..MF....; this MF does not mean the lead wire.)
VR502 RVR-Q0130AFZZ 50K ohm (B), Balance AF
VR503 RVR-PO102AFZZ 100K ohm (B), Tone AG C1 VCCSMF1HL100J 10PF, 50V, +5%, Ceramic AA
C23 VCTYMF1HV472K 0.0047MFD, 50V, +10%, AA
ELECTROLYTIC CAPACITORS Semiconductor
(All electrolytic capacitors are +20% type.) c4 VCCCMF1HH240J 24PF(CH), 50V, £5%, AA
Ceramic
C12 RC-EZA336AF1C 33MFD, 16V AB C5 VCCCMF1HH3R3C 3.3PF(CH), 50V, +0.25PF, AA
C15 RC-EZA106AF1C 10MFD, 16V AB Ceramic
C20 RC-EZA476AF1A 47MFD, 10V AB C6 VCCCMF1HH150J 15PF(CH), 50V, +5%, AA
C25 RC-EZA107AFiA 100MFD, 10V AB Ceramic
C26 RC-EZA475AF1E 4.7MFD, 25V AB C7 VCCCMF1HH100J 10PF(CH), 50V, £5%, AA
C40 RC-EZA106AF1C 10MFD, 16V AB Ceramic
C41 RC-EZA335AF1H 3.3MFD, 50V AB cs VCTYMF1HV152K 0.0015MFD, 50V, +10%, AA
C42 RC-EZA105AF1H 1MFD, 50V AB Semiconductor
C44 RC-EZA475AF1E 4.7MEFD, 25V AB cg VCCRMF1HH100J 10PF(RH), 50V, +5%, AA
C47,48 RC-EZA105AF1H 1MFD, 50V AB Ceramic
c49 RC-EZA227AF1A 220MED, 10V AB C10 VCCCMF1HH3R9C 3.9PF(CH), 50V, £0.25PF, AA
C74 RC-EZA106AF1C 10MFD, 16V AB Ceramic
C75 RC-EZA476AF1A 47MED, 10V AB cea | VCCCMF1HH1ROC 1PF(CH), 50V, +0.25PF, AA
C103,104 RC-EZA105AF1H 1MFD, 50V AB Ceramic
— 29 —
