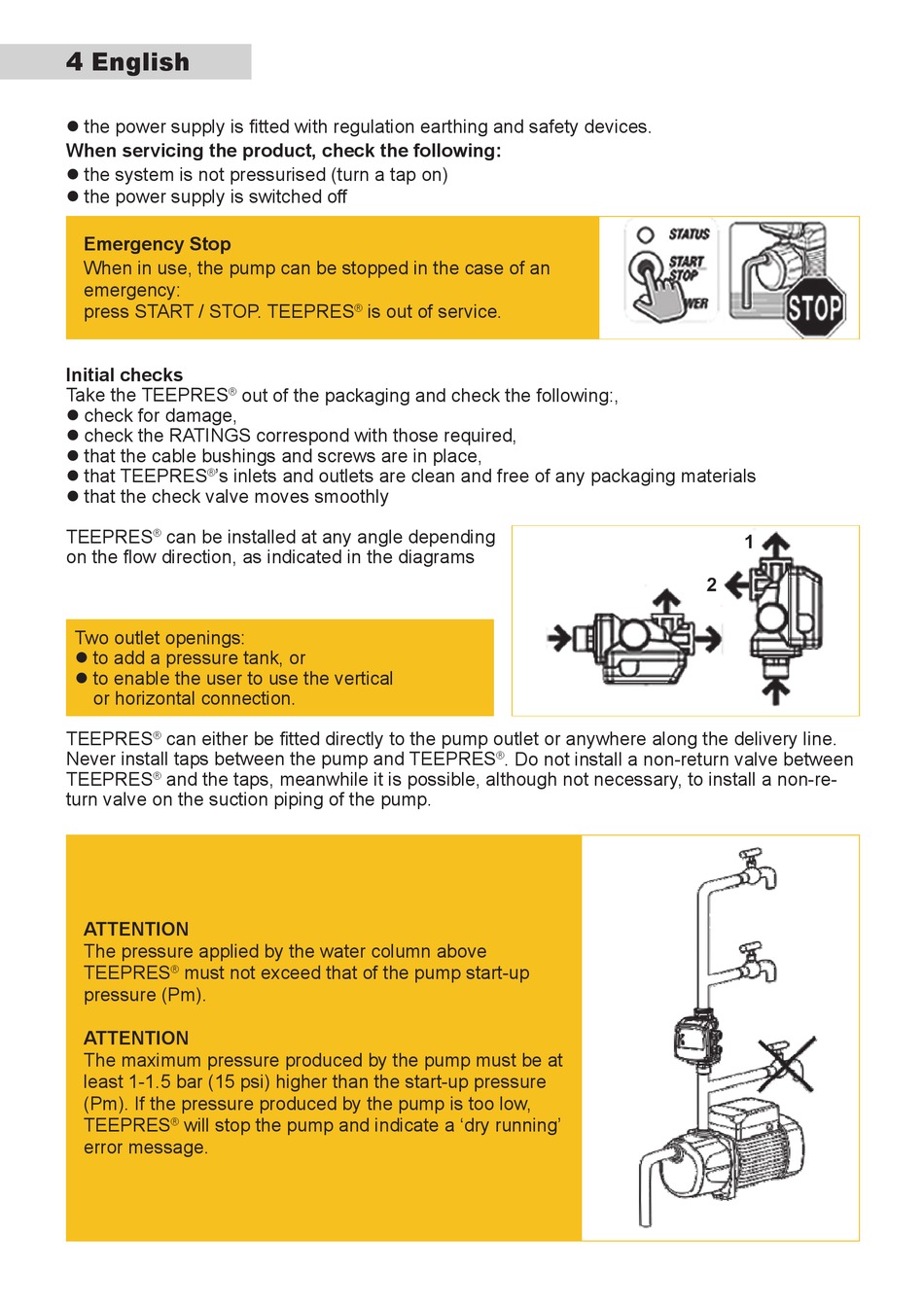

4 English
l the power supply is fitted with regulation earthing and safety devices.
When servicing the product, check the following:
l the system is not pressurised (turn a tap on)
l the power supply is switched off
Emergency Stop
When in use, the pump can be stopped in the case of an
emergency:
press START / STOP. TEEPRES
Initial checks
Take the TEEPRES
®
l check for damage,
l check the RATINGS correspond with those required,
l that the cable bushings and screws are in place,
l that TEEPRES 's inlets and outlets are clean and free of any packaging materials
®
l that the check valve moves smoothly
TEEPRES can be installed at any angle depending
®
on the flow direction, as indicated in the diagrams
Two outlet openings:
l to add a pressure tank, or
l to enable the user to use the vertical
or horizontal connection.
TEEPRES can either be fitted directly to the pump outlet or anywhere along the delivery line.
®
Never install taps between the pump and TEEPRES
TEEPRES and the taps, meanwhile it is possible, although not necessary, to install a non-re-
®
turn valve on the suction piping of the pump.
ATTENTION
The pressure applied by the water column above
TEEPRES must not exceed that of the pump start-up
®
pressure (Pm).
ATTENTION
The maximum pressure produced by the pump must be at
least 1-1.5 bar (15 psi) higher than the start-up pressure
(Pm). If the pressure produced by the pump is too low,
TEEPRES will stop the pump and indicate a 'dry running'
®
error message.
is out of service.
®
out of the packaging and check the following:,
. Do not install a non-return valve between
®
1
2
