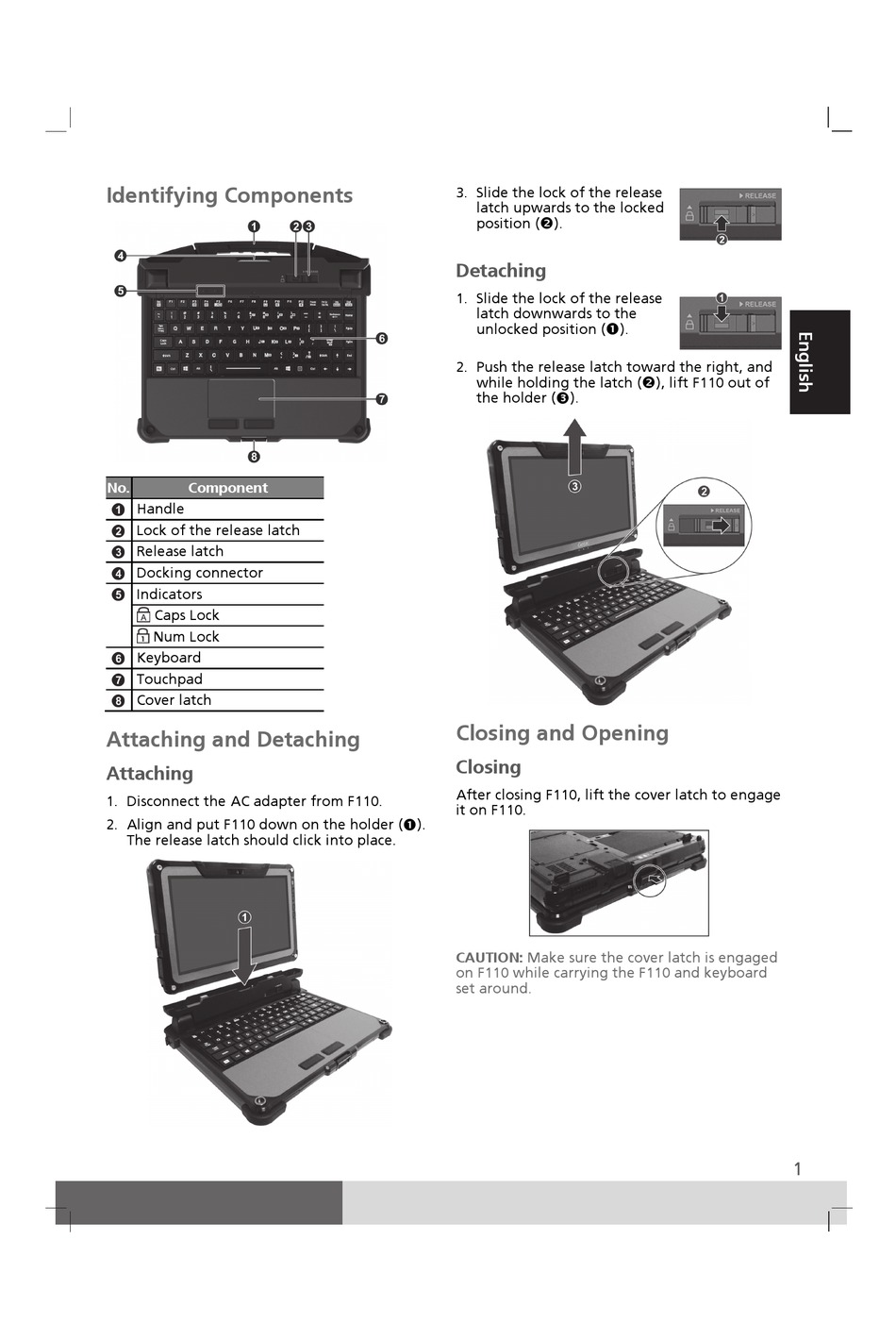

Identifying Components
No. Component
Handle
Lock of the release latch
Release latch
Docking connector
Indicators
Caps Lock
Num Lock
Keyboard
Touchpad
Cover latch
Attaching and Detaching
Attaching
1. Disconnect the AC adapter from F110.
2. Align and put F110 down on the holder (
The release latch should click into place.
3. Slide the lock of the release
latch upwards to the locked

position ( ).
Detaching
1. Slide the lock of the release
latch downwards to the
unlocked position (
2. Push the release latch toward the right, and
while holding the latch (

the holder ( ).
Closing and Opening
Closing
After closing F110, lift the cover latch to engage
it on F110.

).
CAUTION: Make sure the cover latch is engaged
on F110 while carrying the F110 and keyboard
set around.

).

), lift F110 out of
1
