Equipment for use in locations where it is unlikely that children will be present.
■
Your device meets guidelines for exposure to radio waves (SAR, Specific Absorption
■
Rate) when kept in a close distance to your body. By the head is 1.78 W/Kg (10 g) and
worn on the body and by limbs is 1.95 W/Kg (10 g).
Device layout
(see illustration on page 2)
1. Ear-piece | 2. Headset | RSM interface | 3. Eyelet | 4. Proximity / Light sensor
5. Multifunction key right | 6. Power key with fingerprint sensor | 7. Touchscreen
8. Loudspeakers | 9. Microphone | 10. USB-C interface | 11. Multifunction key left
12. Volume key | 13. Front camera | 14. Alarm key | 15. Notification LED
16. Rear camera | 17. Noise canceling microphone | 18. Flash LED
19. Battery | 20. NFC antenna | 21. Charging contacts

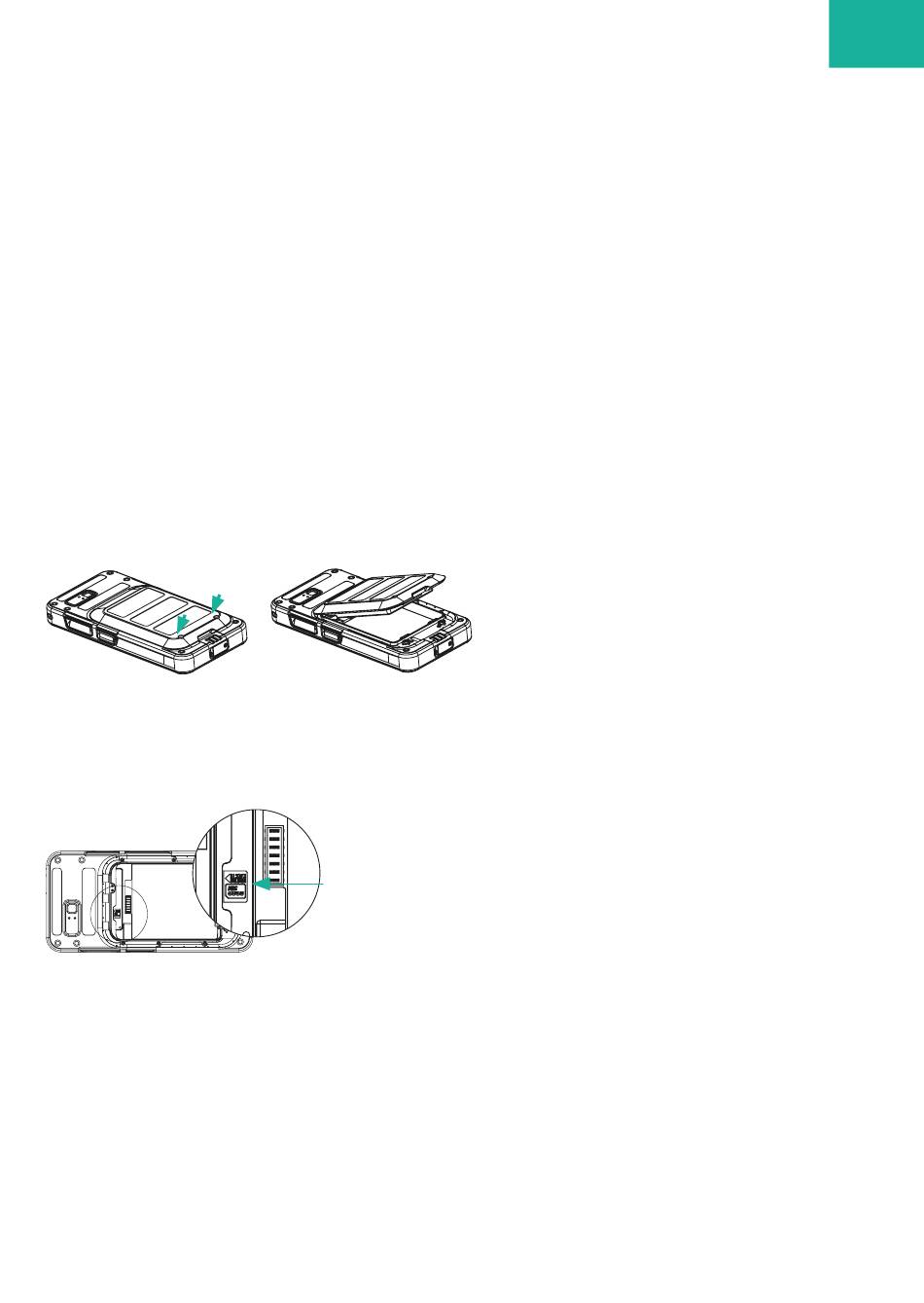

Inserting the SIM card and the battery pack
Step 1
Unscrew the two cover screws in a counterclockwise direction and remove the battery.
Step 2
Insert the nano-SIM card with the gold-colored contacts facing downwards by pushing
it upward in the designated slot.
