Technical Data; Installation Instructions - Plamen Maestral N Technische Anweisungen

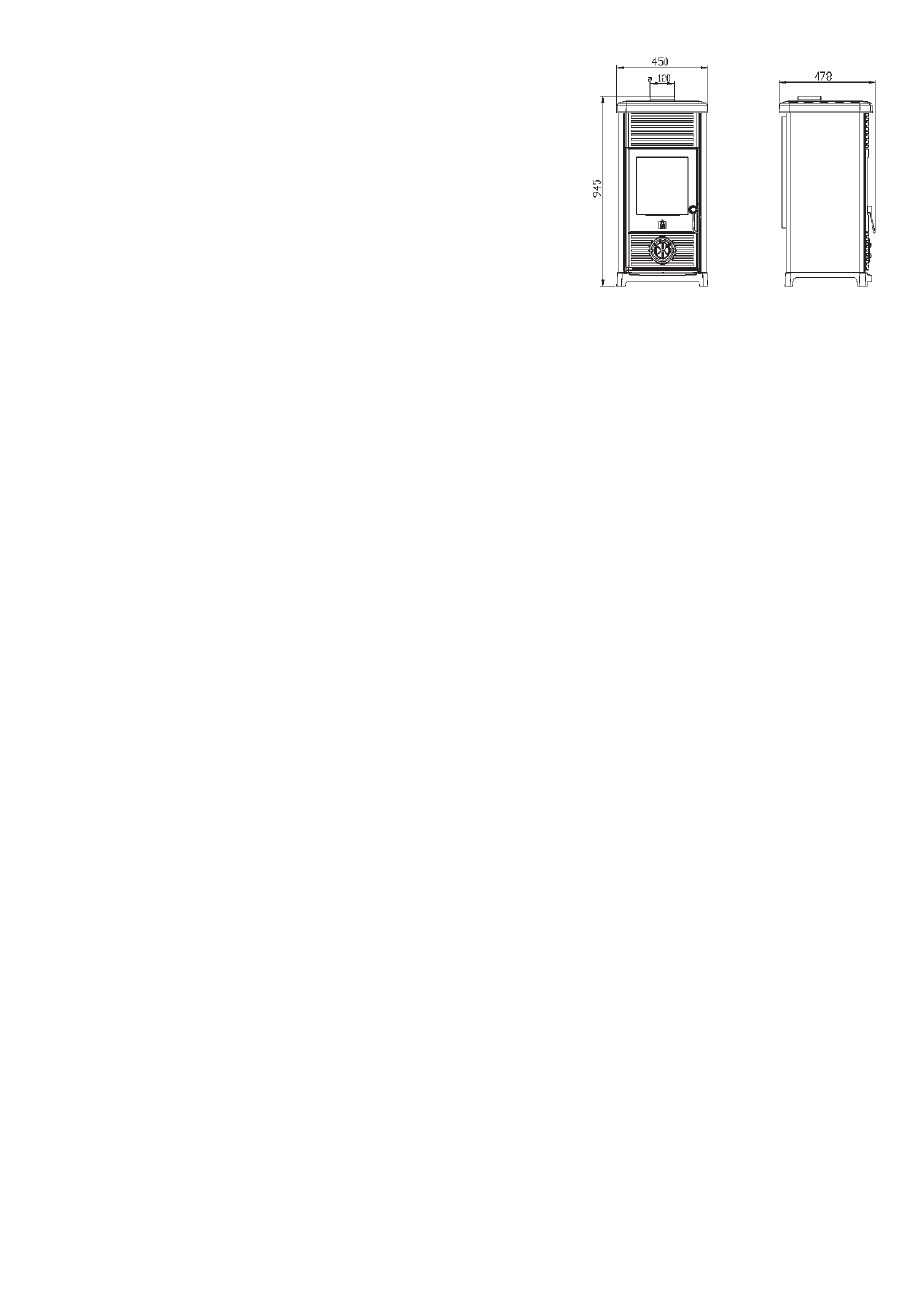

TECHNICAL DATA:

MEASUREMENTS W x H x D:
WEIGHT:
IZVEDBA po EN 13 240:
FLUE OUTLET – top:
REQUIRED CHIMNEY DRAUGHT:
FLUE GAS TEMPERATURE:
RATED OUTPUT:
FLUE GAS FLOW RATE:

INSTALLATION INSTRUCTIONS

The stove is delivered in a carton box placed on a shipping pallet. It is recommendable to unpack the
stove at the place of installation.
Flue pipe outlet is provided on the top plate of the stove.
Ambient conditions
If the stove is to be installed in a room with combustible or heat sensitive flooring, a solid non-
combustible floor protector is required under the stove. The floor protector should be dimensioned to
extend at least 20 cm to the lateral and rear sides and 40 cm to the front of the stove.
The minimum clearance between the stove and materials sensitive to heat within the area directly
exposed to heat in front of the stove shall be 80 cm.
The stove should be positioned on a level surface, in a room with sufficient fresh air supply to support
the combustion.
If an aspirator (hood) or any other air consuming device is installed in the same room, make sure to
provide.
Chimney connection
Common (standard) stovepipes and elbows of nominal diameter 120 mm may be used to connect the
stove to the chimney.
Make sure that the stovepipe and elbow are tightly fastened together and that the connections of the
stovepipe with the flue outlet and with the chimney outlet are firm and tight. The stovepipe shall not
extend beyond the chimney liner, i.e. it must not protrude into the cross section of the chimney.
For good performance, the stove shall be connected to adequate chimney ensuring good draught of
flue gasses, i.e. an under pressure of 10-20 Pa.
The stove shall be installed in full compliance with European, national, as well as local applicable
regulations.
INSTRUCTIONS FOR USE
Suitable fuel
The stove has been designed to burn only wood and wood briquettes.
Use only well-seasoned dry wood to avoid the creation of greasy soot (creosote) buildup, which may
cause clogging of the chimney.
Do not burn household waste, especially not any plastic materials. Many waste materials contain
substances that are harmful to the stove, the chimney and the environment.
45 x 94,5 x 47,8 cm
83 kg
1a
Ø120 mm
12 Pa
324 ºC
6 kW
6,0 g/s
