MSI PM8M2-V Bedienungsanleitung Seite 7

Layout
Top : mouse
Bottom: keyboard
Top : Parallel Port
Bottom:
COM A
VGA port
USB ports
Top: LAN Jack
Bottom: USB
ports
Line-In
Line-Out
Mic
Codec
JSP1
JAUDIO1
COM2
SYS_FAN1

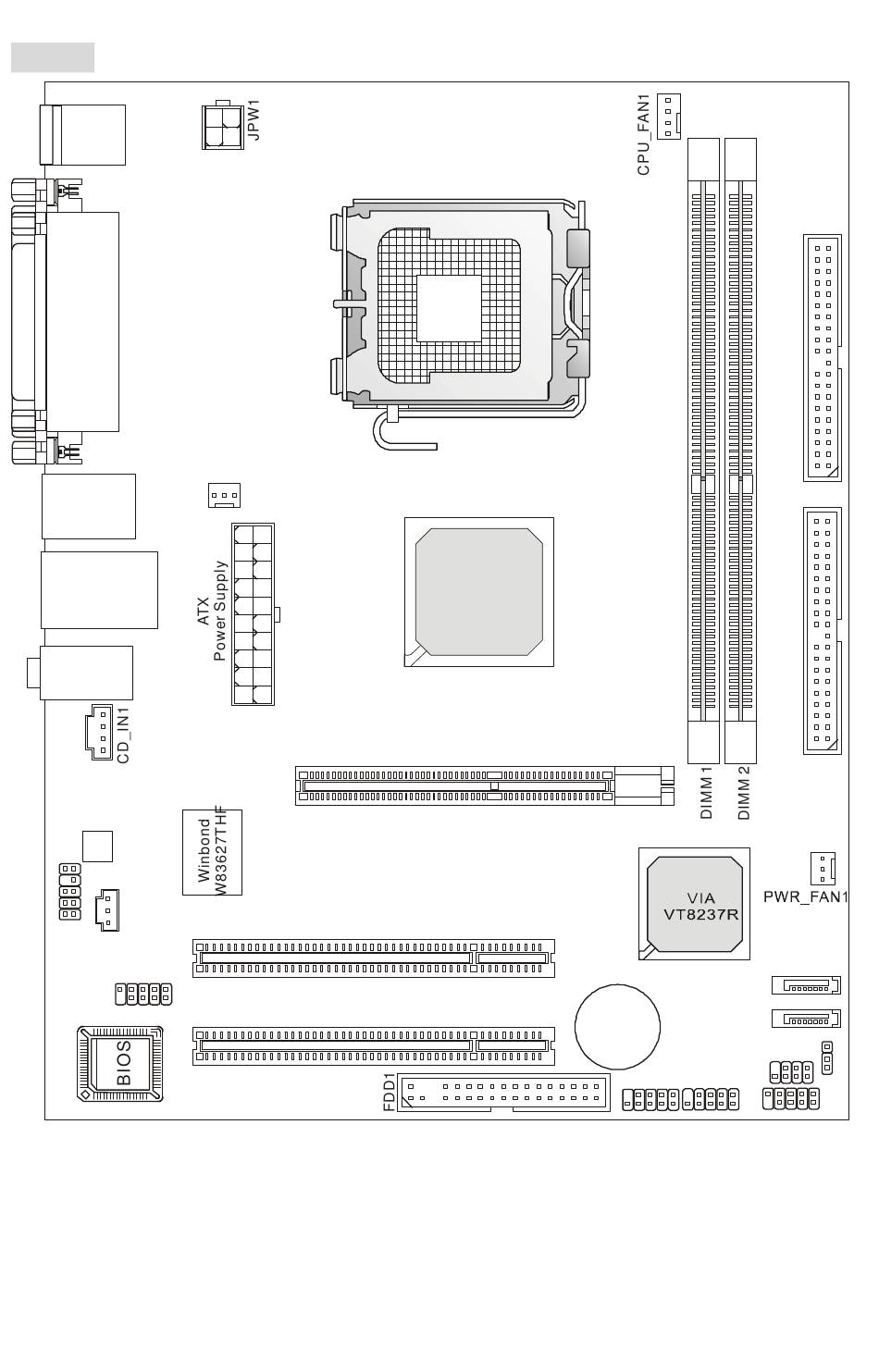

MS-7071 v1.X Micro-ATX Mainboard
VIA
P4M800
(645BGA)
AGP Slot
PCI Slot 1
PCI Slot 2
3
SATA2
SATA1
BATT
+
JUSB1 JUSB2
IDE 2
IDE 1
JFP2
JBAT2
JFP1
