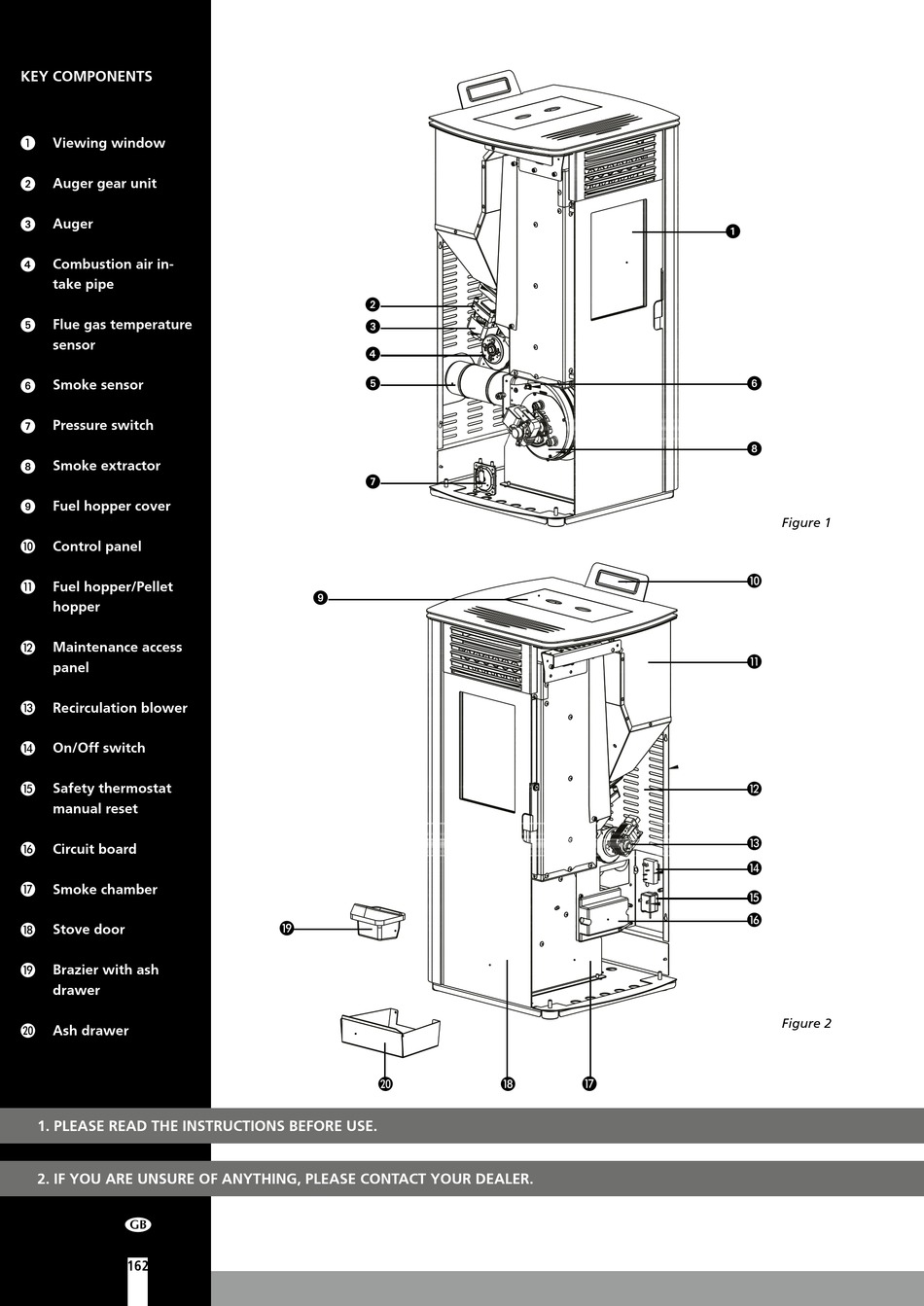

KEY COMPONENTS
Viewing window
A
Auger gear unit
2
Auger
3
Combustion air in-
4
take pipe
Flue gas temperature
5
sensor
Smoke sensor
6
Pressure switch
7
Smoke extractor
8
Fuel hopper cover
9
Control panel
J
K
Fuel hopper/Pellet
hopper
Maintenance access
L
panel
Recirculation blower
M
N
On/Off switch
Safety thermostat
O
manual reset
Circuit board
P
Smoke chamber
Q
Stove door
R
Brazier with ash
S
drawer
Ash drawer
T
1. PLEASE READ THE INSTRUCTIONS BEFORE USE.
1. LEGGERE DAPPRIMA LE INSTRUZIONI D'USO.
2. IN CASO DI DUBBI RIVOLGERSI AL RIVENDITORE DELL'APPARECCHIO.
2. IF YOU ARE UNSURE OF ANYTHING, PLEASE CONTACT YOUR DEALER.
4
162
2
3
4
5
7
9
S
T
R
Q
1
6
8
Figure 1
J
K
L
M
N
O
P
Figure 2
