RECOMMENDED TERMINATION
Tester:
EM Tester Type UCS 500M2, SN: 0499-41
E.U.T.:
OC7171 SN: 2001230402, Supply 230VA
Mode:
Input:
Display:
9.1
Test Conditions
According to:
Antenna Injections Zone 2
Burst
DC powered instrument are tested with power cord and signal input in Zone 2 at conditions
shown in "Antenna Injections" above.
9.2

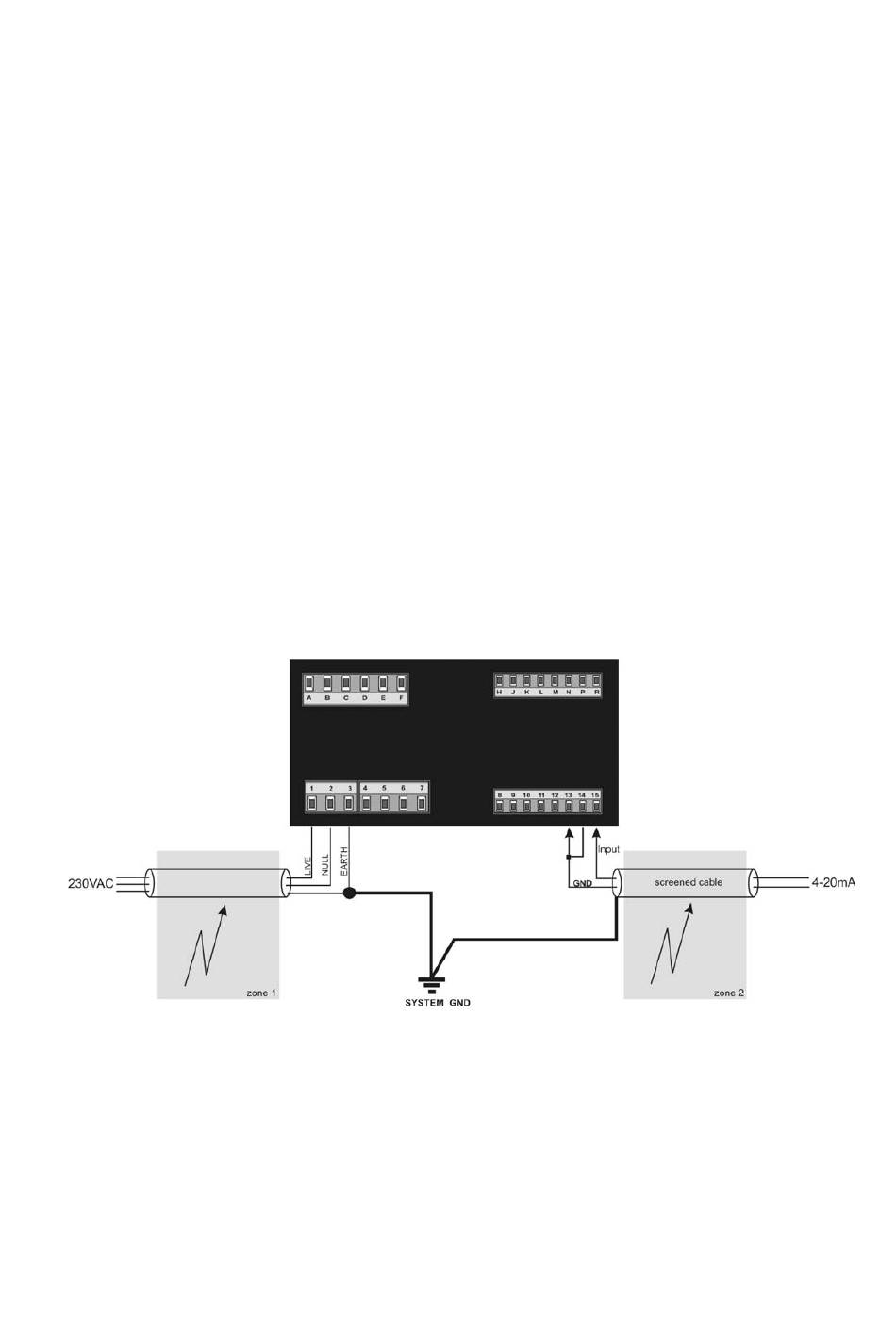

Test Set - Up
9.3
Test Results
Zone 1:
2kV Burst
Zone 2:
2kV Burst
CE Approval No: 409/18-30/2001-4568 from 12.6.2001 VTUE Praque.
UdiC
99998 Hz
99998
Zone 1
IEC 61000-4-4 level 3
EN 50052-2 generic
Voltage 2500V,
Display 99998 without change
Display 99998 without change
Frequency Counter: SCALE = 1, OrdEr = CCCCC
2000V
2000V
f = 5 kHz
fr = 300 ms
td = 15 ms
coupling +/-
