6.1.5.1 Assembly on wall bracket

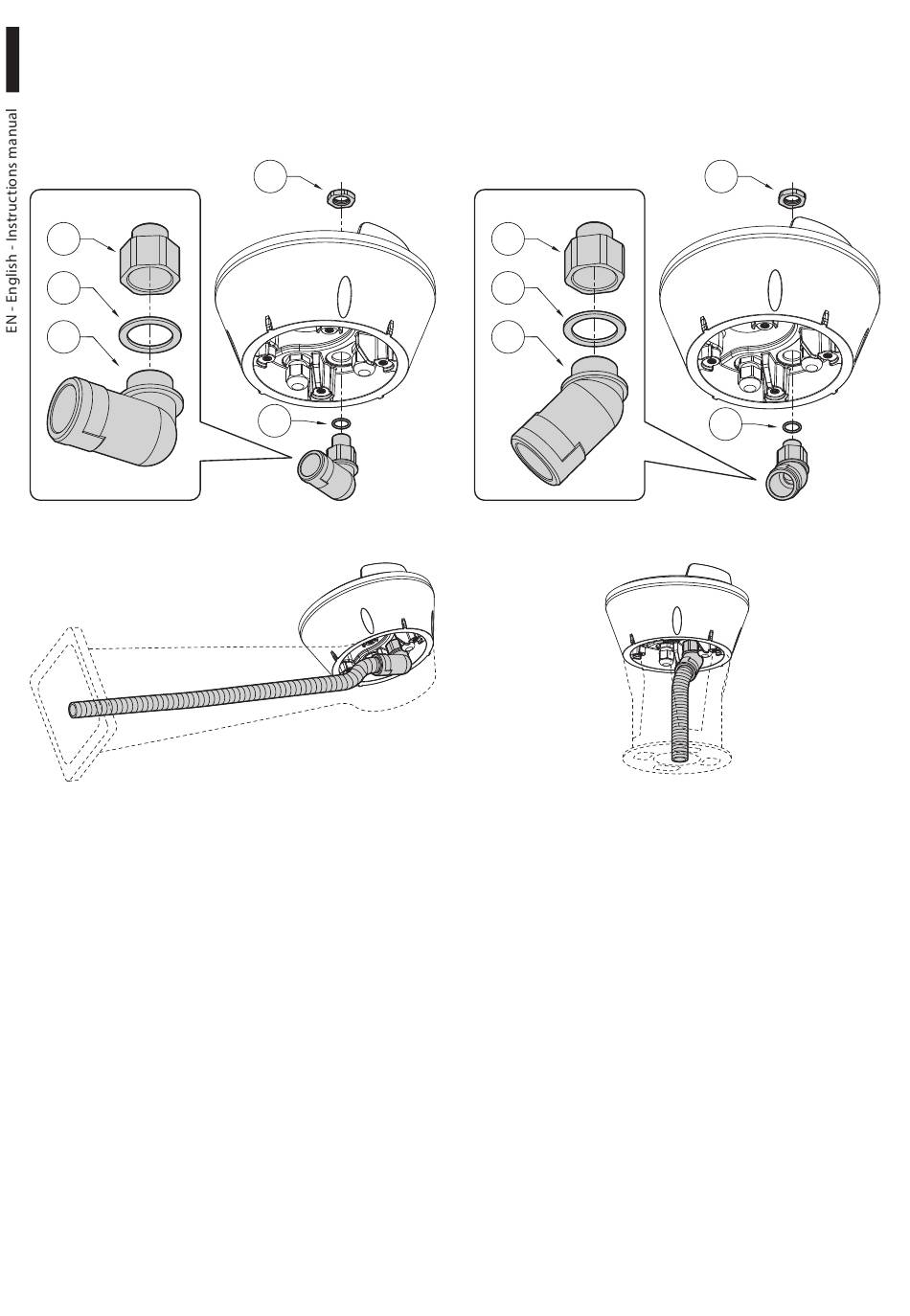

Assemble the junction (01 and 03) with the gasket
(02). Fix the assembled junctions onto the base with
the gasket (04) and the nut of the previously removed
cable gland (05).
03
02
01
Fig. 7
Fig. 8 Complete installation.
6
05
04
6.1.5.2 Assembly on parapet bracket
Assemble the junction (01 and 03) with the gasket
(02). Fix the assembled junctions onto the base with
the gasket (04) and the nut of the previously removed
cable gland (05).
03
02
01
Fig. 9
Fig. 10 Complete installation.
05
04
