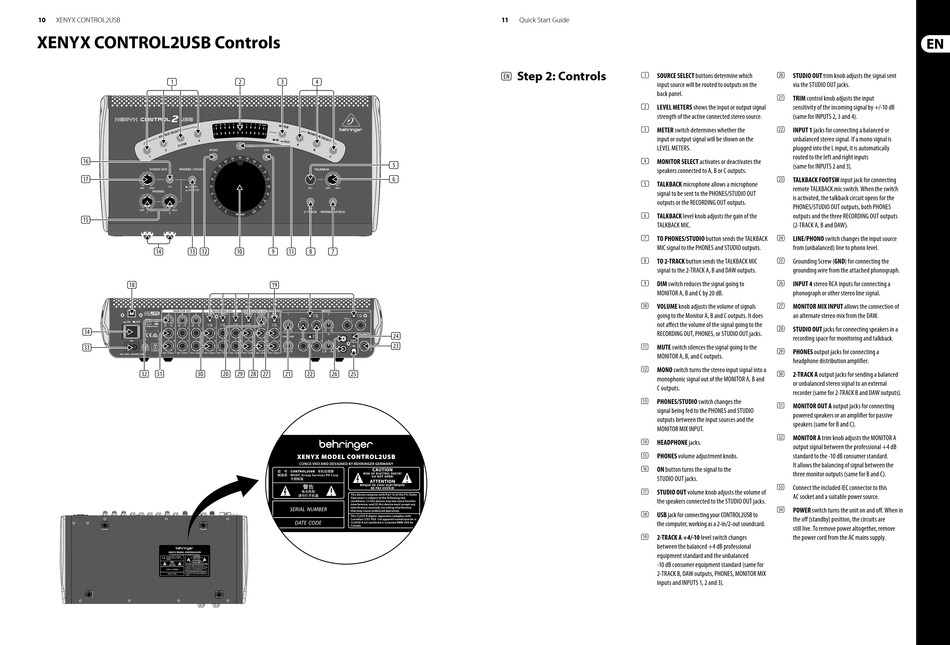

XENYX CONTROL2USB
XENYX CONTROL2USB Controls
(1)
(16)
(17)
(15)
(14)
(13)
(12)
(18)
(34)
(33)
(32) (31)
(30)
(2)
(3)
(4)
(5)
(6)
(10)
(9)
(11)
(8)
(7)
(19)
(24)
(23)
(20)
(29) (28) (27)
(21)
(22)
(26) (25)
11
Quick Start Guide
Step 2: Controls
(EN)
(1)
SOURCE SELECT buttons determine which
input source will be routed to outputs on the
back panel.
(2)
LEVEL METERS shows the input or output signal
strength of the active connected stereo source.
(3)
METER switch determines whether the
input or output signal will be shown on the
LEVEL METERS.
(4)
MONITOR SELECT activates or deactivates the
speakers connected to A, B or C outputs.
(5)
TALKBACK microphone allows a microphone
signal to be sent to the PHONES/STUDIO OUT
outputs or the RECORDING OUT outputs.
(6)
TALKBACK level knob adjusts the gain of the
TALKBACK MIC.
(7)
TO PHONES/STUDIO button sends the TALKBACK
MIC signal to the PHONES and STUDIO outputs.
(8)
TO 2-TRACK button sends the TALKBACK MIC
signal to the 2-TRACK A, B and DAW outputs.
(9)
DIM switch reduces the signal going to
MONITOR A, B and C by 20 dB.
(10)
VOLUME knob adjusts the volume of signals
going to the Monitor A, B and C outputs. It does
not aff ect the volume of the signal going to the
RECORDING OUT, PHONES, or STUDIO OUT jacks.
(11)
MUTE switch silences the signal going to the
MONITOR A, B, and C outputs.
(12)
MONO switch turns the stereo input signal into a
monophonic signal out of the MONITOR A, B and
C outputs.
(13)
PHONES/STUDIO switch changes the
signal being fed to the PHONES and STUDIO
outputs between the input sources and the
MONITOR MIX INPUT.
(14)
HEADPHONE jacks.
(15)
PHONES volume adjustment knobs.
(16)
ON button turns the signal to the
STUDIO OUT jacks.
(17)
STUDIO OUT volume knob adjusts the volume of
the speakers connected to the STUDIO OUT jacks.
(18)
USB jack for connecting your CONTROL2USB to
the computer, working as a 2-in/2-out soundcard.
(19)
2-TRACK A +4/-10 level switch changes
between the balanced +4 dB professional
equipment standard and the unbalanced
-10 dB consumer equipment standard (same for
2-TRACK B, DAW outputs, PHONES, MONITOR MIX
inputs and INPUTS 1, 2 and 3).
(20)
STUDIO OUT trim knob adjusts the signal sent
via the STUDIO OUT jacks.
(21)
TRIM control knob adjusts the input
sensitivity of the incoming signal by +/-10 dB
(same for INPUTS 2, 3 and 4).
(22)
INPUT 1 jacks for connecting a balanced or
unbalanced stereo signal. If a mono signal is
plugged into the L input, it is automatically
routed to the left and right inputs
(same for INPUTS 2 and 3).
(23)
TALKBACK FOOTSW input jack for connecting
remote TALKBACK mic switch. When the switch
is activated, the talkback circuit opens for the
PHONES/STUDIO OUT outputs, both PHONES
outputs and the three RECORDING OUT outputs
(2-TRACK A, B and DAW).
(24)
LINE/PHONO switch changes the input source
from (unbalanced) line to phono level.
(25)
Grounding Screw (GND) for connecting the
grounding wire from the attached phonograph.
(26)
INPUT 4 stereo RCA inputs for connecting a
phonograph or other stereo line signal.
(27)
MONITOR MIX INPUT allows the connection of
an alternate stereo mix from the DAW.
(28)
STUDIO OUT jacks for connecting speakers in a
recording space for monitoring and talkback.
(29)
PHONES output jacks for connecting a
headphone distribution amplifi er.
(30)
2-TRACK A output jacks for sending a balanced
or unbalanced stereo signal to an external
recorder (same for 2-TRACK B and DAW outputs).
(31)
MONITOR OUT A output jacks for connecting
powered speakers or an amplifi er for passive
speakers (same for B and C).
(32)
MONITOR A trim knob adjusts the MONITOR A
output signal between the professional +4 dB
standard to the -10 dB consumer standard.
It allows the balancing of signal between the
three monitor outputs (same for B and C).
(33)
Connect the included IEC connector to this
AC socket and a suitable power source.
(34)
POWER switch turns the unit on and off . When in
the off (standby) position, the circuits are
still live. To remove power altogether, remove
the power cord from the AC mains supply.
