Assembling the trolley
General remarks
Assembling the
trolley
Fig.3
Fig.4
Warning! Work that is not carried out correctly can cause serious injury and
damage. Do not attempt the assembly operations described here until you have
read and completely understood the whole of the "Operating Instructions"
manual.
Caution! Risk of injury from machines toppling over and falling off the trolley.
Check that all the screw connections on the trolley are tight.

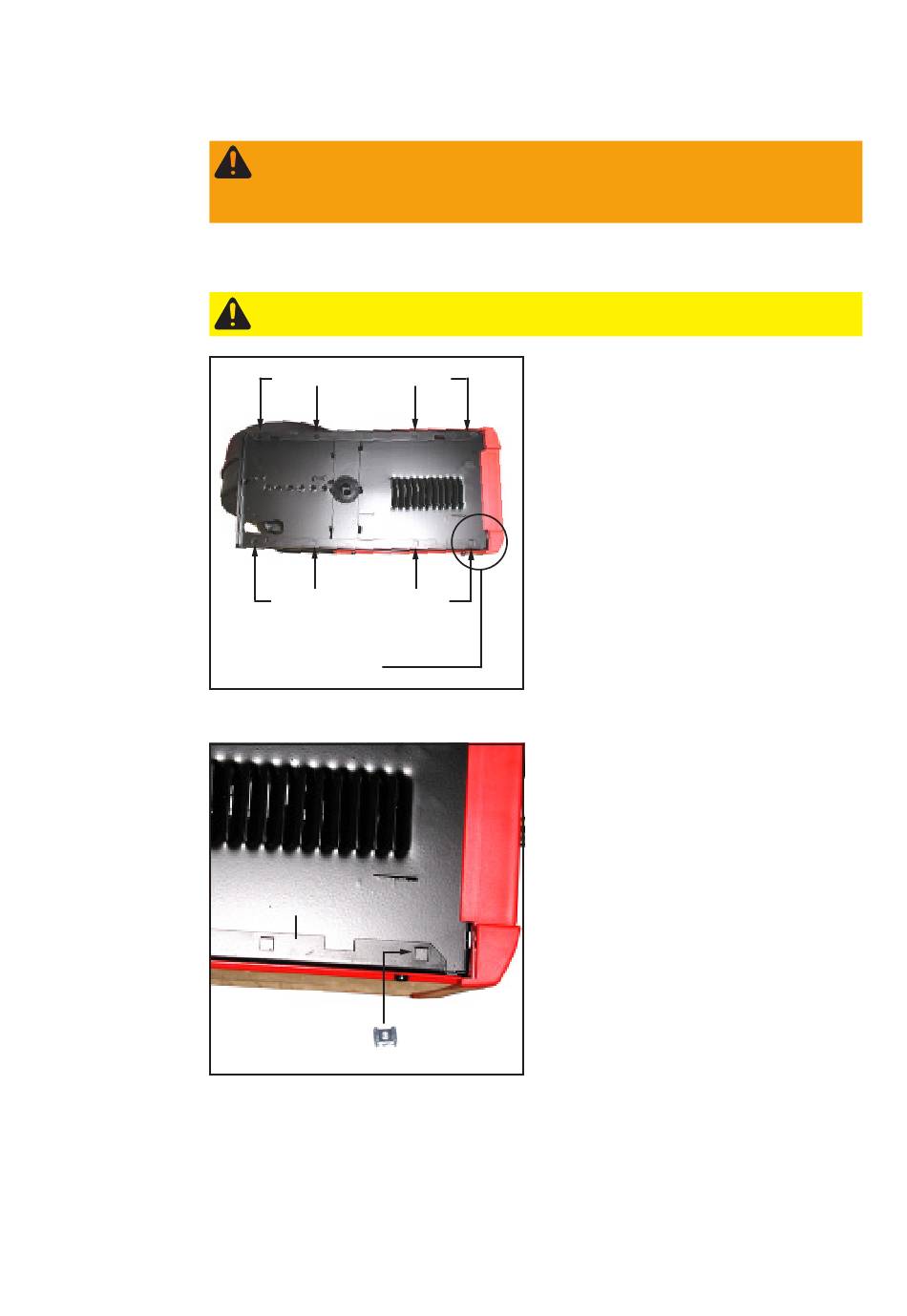

Recesses for captive nuts
Recesses for captive nuts
Close-up Y
Recesses for captive nuts on the underside
of the wirefeeder
Fixing bar
Captive nut
Close-up of view "Y": Inserting the captive
nuts
4 4
1.
Check the screw connections on the
trolley to make sure that these are
tight
Important! Insert the captive nuts
from the inside toward the outside
2.
Insert 8 captive nuts in the recesses
on the underside of the wirefeeder:
-
Place the captive nuts under the
fixing bar on the wirefeeder
-
Insert the captive nuts into the
recesses, from the inside toward
the outside
-
Check that the captive nuts are
sitting tightly in the recesses
