A - CAN :
CoNfigurAtioN
Parrot

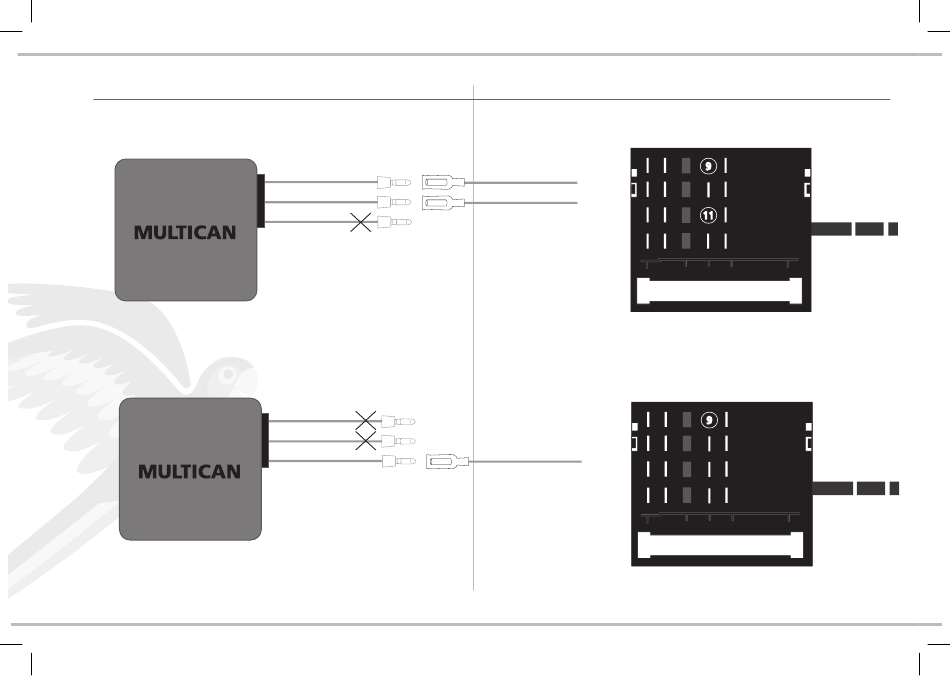

• Connect the green wire corresponding to CAN High to pin 11.
• Connect the white wire corresponding to CAN Low to pin 9.
A - K-B
us CoNfigurAtioN
Parrot
• Connect the purple wire corresponding to K-Bus to pin 9.
Can High
Can Low
K-bus
Can High
Can Low
K-bus
10
BMW
BMW
BmW
CoNNeCtor
BmW
CoNNeCtor
