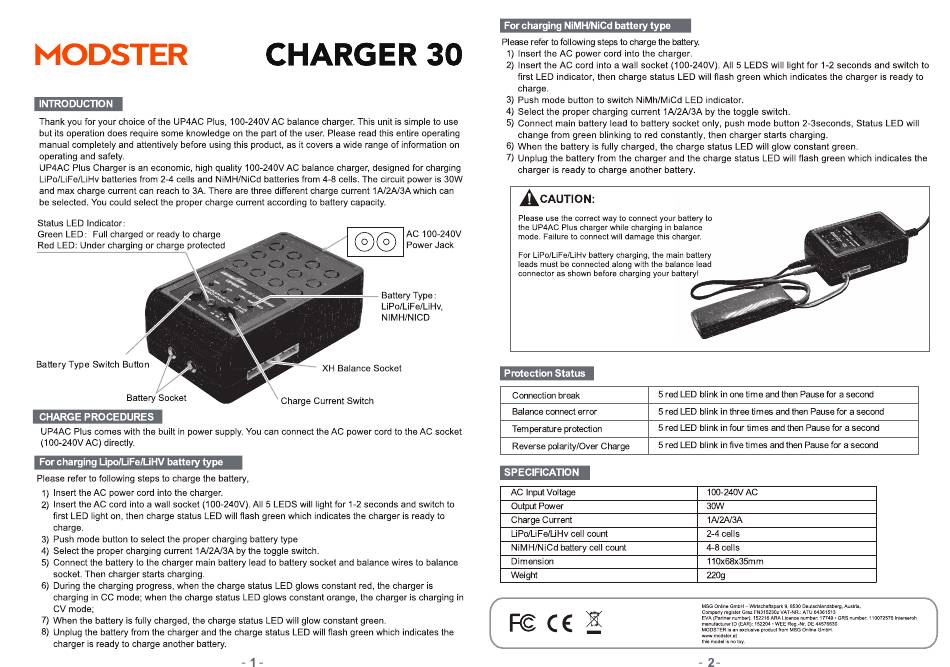

Modster CHARGER 30 Kurzanleitung Seite 2

MODSTER
INTRODUCTION
Thank you for your choice of the UP4AC Plus, 100-240V AC balance charger. This unit is simple to use
but its operation does require some knowledge
manual completely and attentively before using this product, as it covers a wide range of information on
operating and safety.
UP4AC Plus Charger is an economic, high quality 100-240V AC balance charger, designed
LiPo/LiFe/LiHv batteries from 2-4 cells and NiMH/NiCd batteries from 4-8 cells. The circuit power is 30W
and max charge current can reach to 3A. There are three different charge current IA/2A/3A
be selected. You could select the proper charge current according
Status LED Indicator:
Green LED: Full charged or ready to charge
Red LED. Under charging or charge protected
Battery Type Switch Button
Battery Socket
CHARGE PROCEDURES
UP4AC Plus comes with the built in power supply. You can connect the AC power cord to the AC socket
(100-240V AC) directly
For charging Lipo/LiFe/LiHV battery type
Please refer to following steps to charge the battery,
Insert the AC power cord into the charger.
1)
Insert the AC cord into a wall socket (100-240V). All 5 LEDS will light for 1-2 seconds and switch to
2)
first LED light on, then charge status LED will flash green which indicates the charger is ready to
charge.
3) Push mode button to select the proper charging
4) Select the proper charging current IA/2A/3A by the toggle switch
Connect the battery to the charger main battery lead to battery socket and balance wires to balance
5)
socket. Then charger starts charging
6)
During the charging progress, when the charge status LED glows constant
charging in CC mode; when the charge status LED glows constant orange, the charger is charging in
CV mode;
7)
When the battery is fully charged, the charge status LED will glow constant green
8)
Unplug the battery from the charger and the charge status LED will flash green which indicates the
charger is ready to charge another battery
CHARGER
on the part of the user. Please read this entire operating
to battery capacity.
AC
oo
Battery Type :
-9
LiPo/LiFe/LiHv,
NIMH/NICD
XH Balance Socket
Charge Current Switch
battery type
red, the charger is
For charging NiMH/NiCd battery
Please refer to following steps to charge the battery.
30
1) Insert the AC power cord into the charger.
2) Insert the AC cord into a wall socket (100-240V). All 5 LEDS will light for 1-2 seconds and switch to
first LED indicator, then charge status LED will flash green which indicates the charger is ready to
charge.
3) Push mode button to switch NiMh/MiCd
4) Select the proper charging current IA/2A/3A by the toggle switch
5) Connect main battery lead to battery socket only, push mode button 2-3seconds, Status LED will
change from green blinking
6) When the battery is fully charged, the charge status LED will glow constant green
7) Unplug the battery from the charger and the charge status LED will flash green which indicates the
for charging
charger is ready to charge another
which can
ACAUTION:
Please use the correct way to connect your battery to
the UP4AC Plus charger while charging in balance
100-240V
mode. Failure to connect will damage this charger.
Power Jack
For LiPo/LiFe/LiHv
leads must be connected
connector as shown before charging your battery!
Protection Status
Connection break
Balance connect error
Temperature protection
Reverse polarity/Over Charge
SPECIFICATION
AC Input Voltage
Output Power
Charge Current
LiPo/LiFe/LiHv cell count
NiMH/NiCd battery cell count
Dimension
Weight
type
LED indicator.
to red constantly, then charger starts charging
battery
battery charging, the main battery
along with the balance lead
5 red LED blink in one time and then Pause for a second
5 red LED blink in three times
5 red LED blink in four times
5 red LED blink in five times
100-240V AC
30W
1A12AJ3A
2-4 cells
4-8 cells
1 IOx68x35mm
MSG Online GmbH — Wirtschaftspark g, 8530 Deutsch andsberg, Austria,
company register Graz FN315230z VAT-NR_: ATU 64361513
EVA (Partner number): 152216 ARA Licence number 17749 • GRS number: 110072576 Interseroh
manufacturer ID (EAR): 152204 • WEE Reg -Nr_ DE 44576630
MODSTER is an exclusive product from MSG Online GmbH
ww-.v modster at
this model is no toy
-2-
and then Pause for a second
and then Pause for a second
and then Pause for a second
