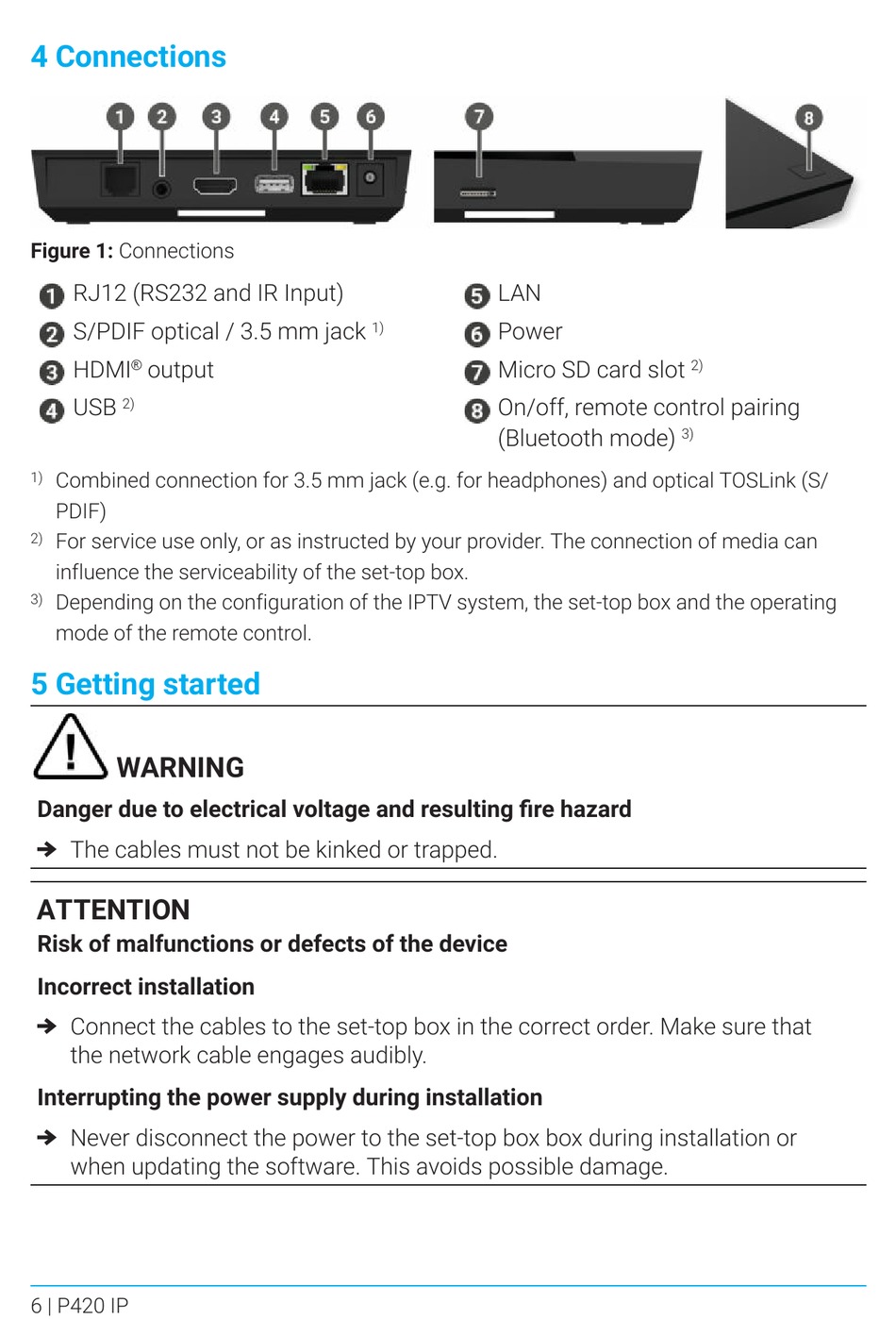

4 Connections
Figure 1: Connections
RJ12 (RS232 and IR Input)
S/PDIF optical / 3.5 mm jack
HDMI output
®
USB
2)
Combined connection for 3.5 mm jack (e.g. for headphones) and optical TOSLink (S/
1)
PDIF)
For service use only, or as instructed by your provider. The connection of media can
2)
influence the serviceability of the set-top box.
Depending on the configuration of the IPTV system, the set-top box and the operating
3)
mode of the remote control.
5 Getting started
WARNING
Danger due to electrical voltage and resulting fire hazard
The cables must not be kinked or trapped.
x
ATTENTION
Risk of malfunctions or defects of the device
Incorrect installation
Connect the cables to the set-top box in the correct order. Make sure that
x
the network cable engages audibly.
Interrupting the power supply during installation
Never disconnect the power to the set-top box box during installation or
x
when updating the software. This avoids possible damage.
6 | P420 IP
LAN
Power
1)
Micro SD card slot
On/off, remote control pairing
(Bluetooth mode)
2)
