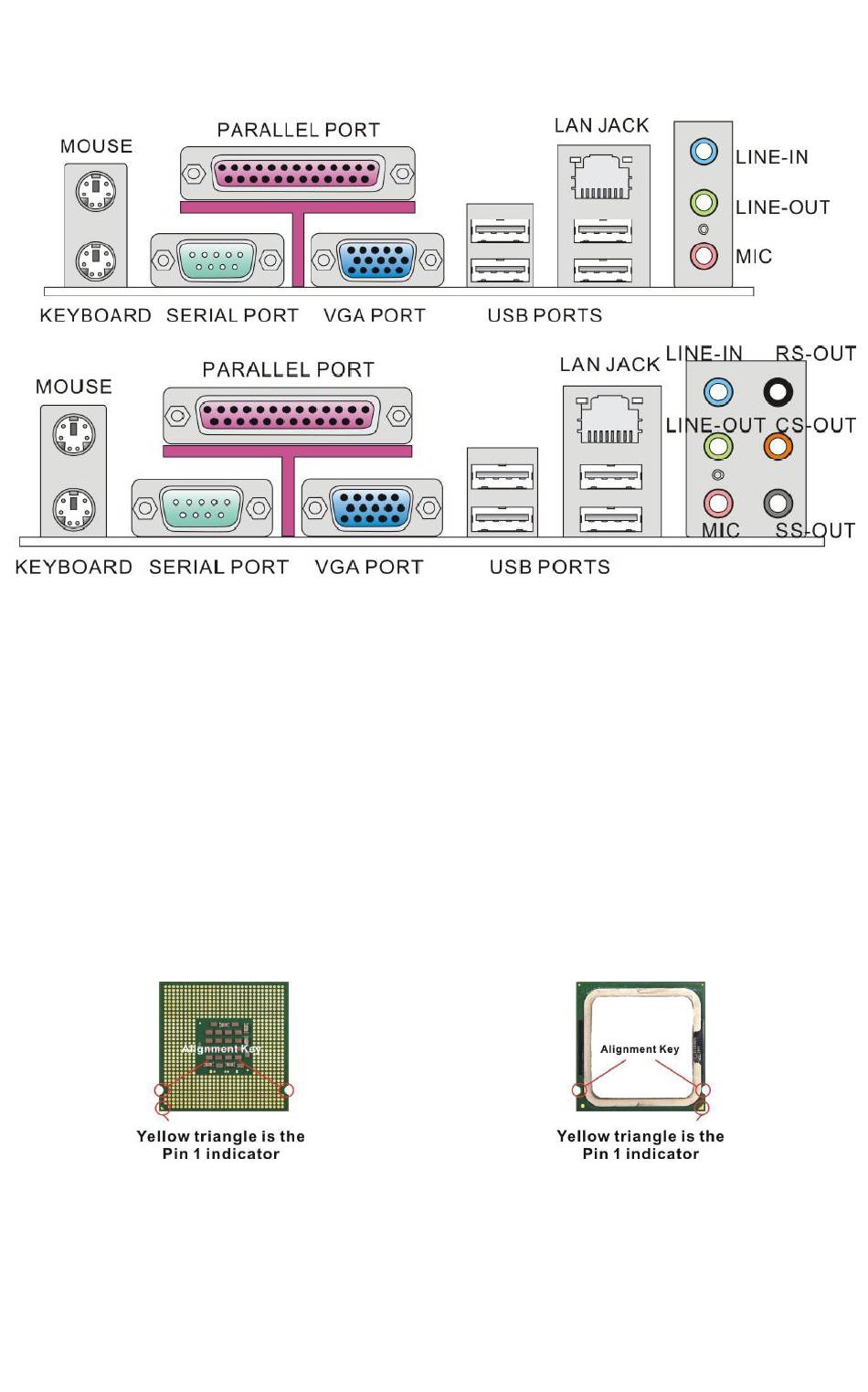

REAR PANEL

The rear panel provides the following connectors:
HARDWARE SETUP
This chapter tells you how to install the CPU, memory modules, and expansion cards, as
well as how to setup the jumpers on the mainboard. It also provides the instructions on
connecting the peripheral devices, such as the mouse, keyboard, etc. While doing the
installation, be careful in holding the components and follow the installation procedures.
CPU & Cooler Installation Procedures for LGA775
When you are installing the CPU, make sure the CPU has a cooler attached on the top to
prevent overheating. Meanwhile, do not forget to apply some thermal paste on CPU before
installing the heat sink/ cooler fan for better heat dispersion.
Follow the steps below to install the CPU & cooler correctly. Wrong installation will cause the
damage of your CPU & mainboard.
Introduction to LGA775 CPU
The pin-pad side of LGA775 CPU The surface of LGA775 CPU
