Final tasks
1
IMPORTANT!
After completing the installation work, the function and tightness of the solenoid
valve must be checked:
-
Check the tightness of the solenoid valve and gas lines:
-
-
NOTE!
To ensure correct functioning of the gas regulator, the inlet pressure at the
wirefeeder or welding machine must be at least 4.5 bar (65 psi) when the target
flow rate is maintained.
▶
16
Mount the right side panel:
iWave DC with 5 screws TX25
iWave AC/DC with 7 screws TX25
Tightening torque = 3 Nm
Press the torch trigger several times to check the correct switching function
of the gas solenoid valve
Pressurize gas line to solenoid valve
Shut off the gas feed at the gas cylinder and observe the pressure gage for
any drop in pressure;
there must be no drop in pressure on the pressure gage for a period of 2 mi-
nutes.
In order to reach the minimum inlet pressure of 4.5 bar (65 psi), it may be
necessary to remove existing flow regulators.

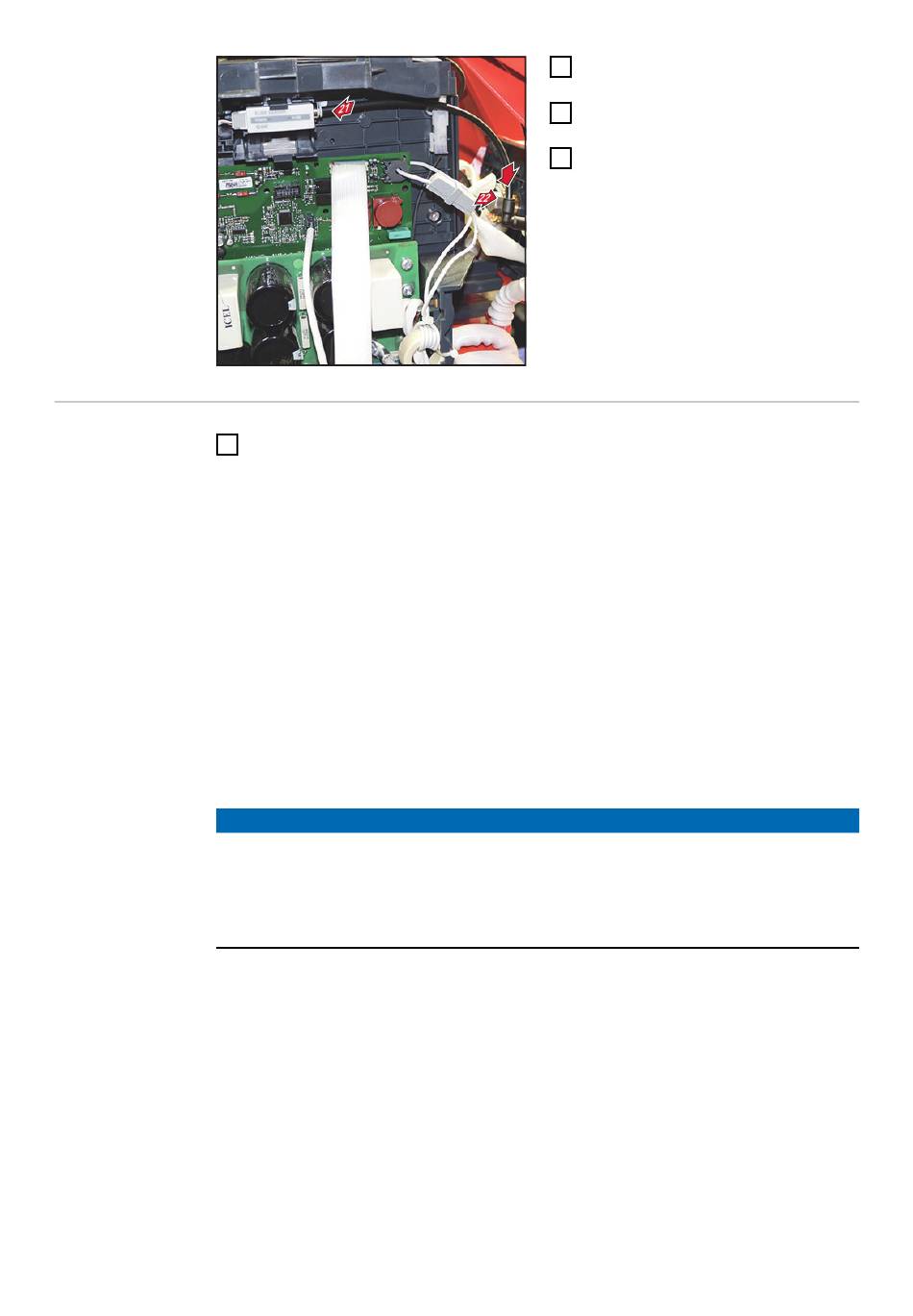

Connect the remaining gas hose
21
piece to the gas sensor
Cut the gas hose to the height of
22
the angle connection
Connect the gas hose to the angle
23
connection
2 3
