Installing the OPT/i TIG gas regulator
Installing the
OPT/i TIG gas
regulator
1
1
2
3
4
3
4
5
6
7
8

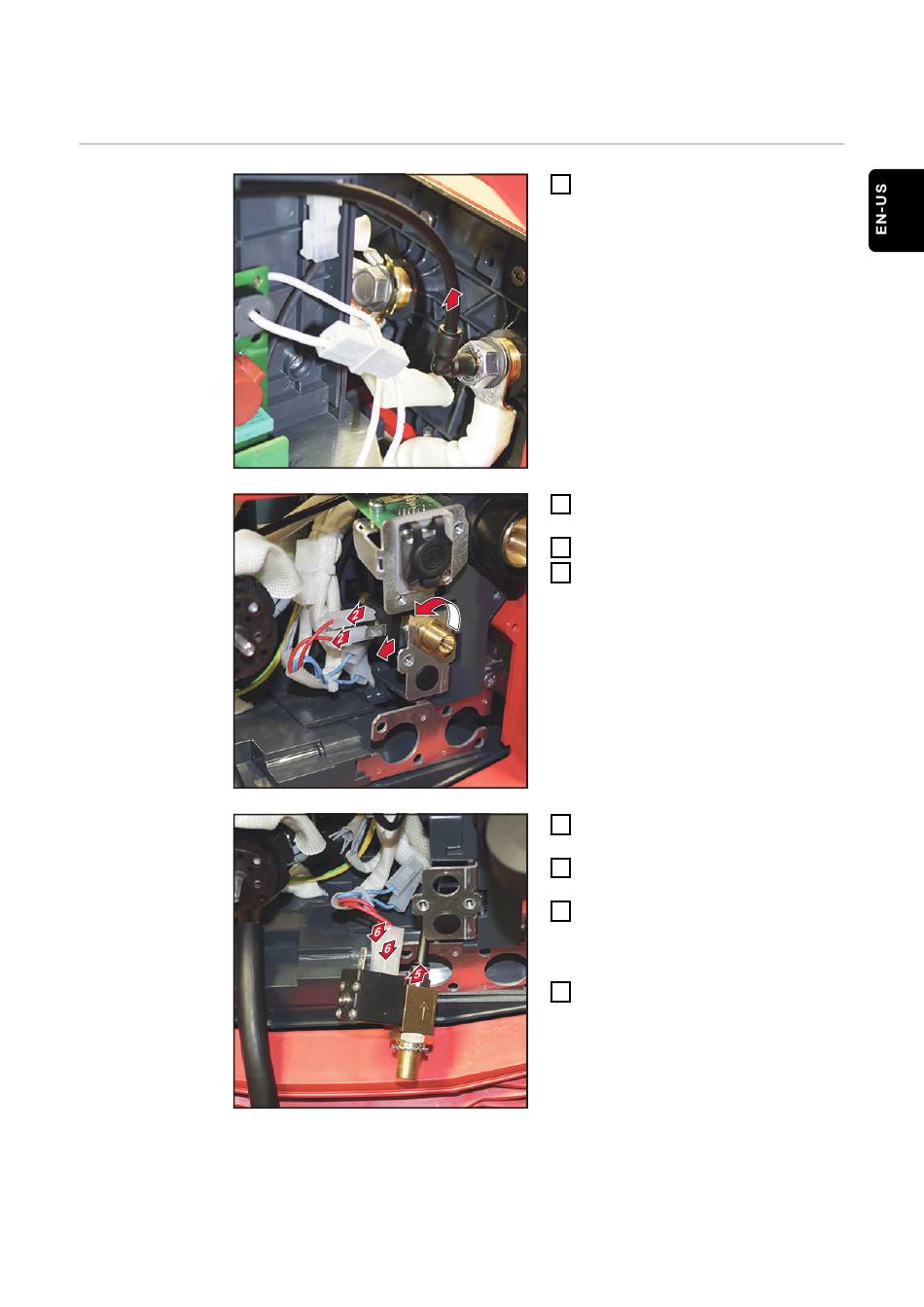

Disconnect the gas hose from the
front of the device
Disconnect the 2 cables (red) from
the gas valve
Remove the 17 mm hexagonal nut
Remove the gas valve and pull it
off the gas hose
The gas valve is no longer required.
Connect the control valve from the
scope of supply to the gas hose
Connect the 2 cables (red) to the
control valve
Insert the control valve with the
serrated washer on the inside into
the opening from the inside to the
outside
Screw on the 17 mm hexagonal nut
and tighten
Tightening torque = 10 Nm
13
