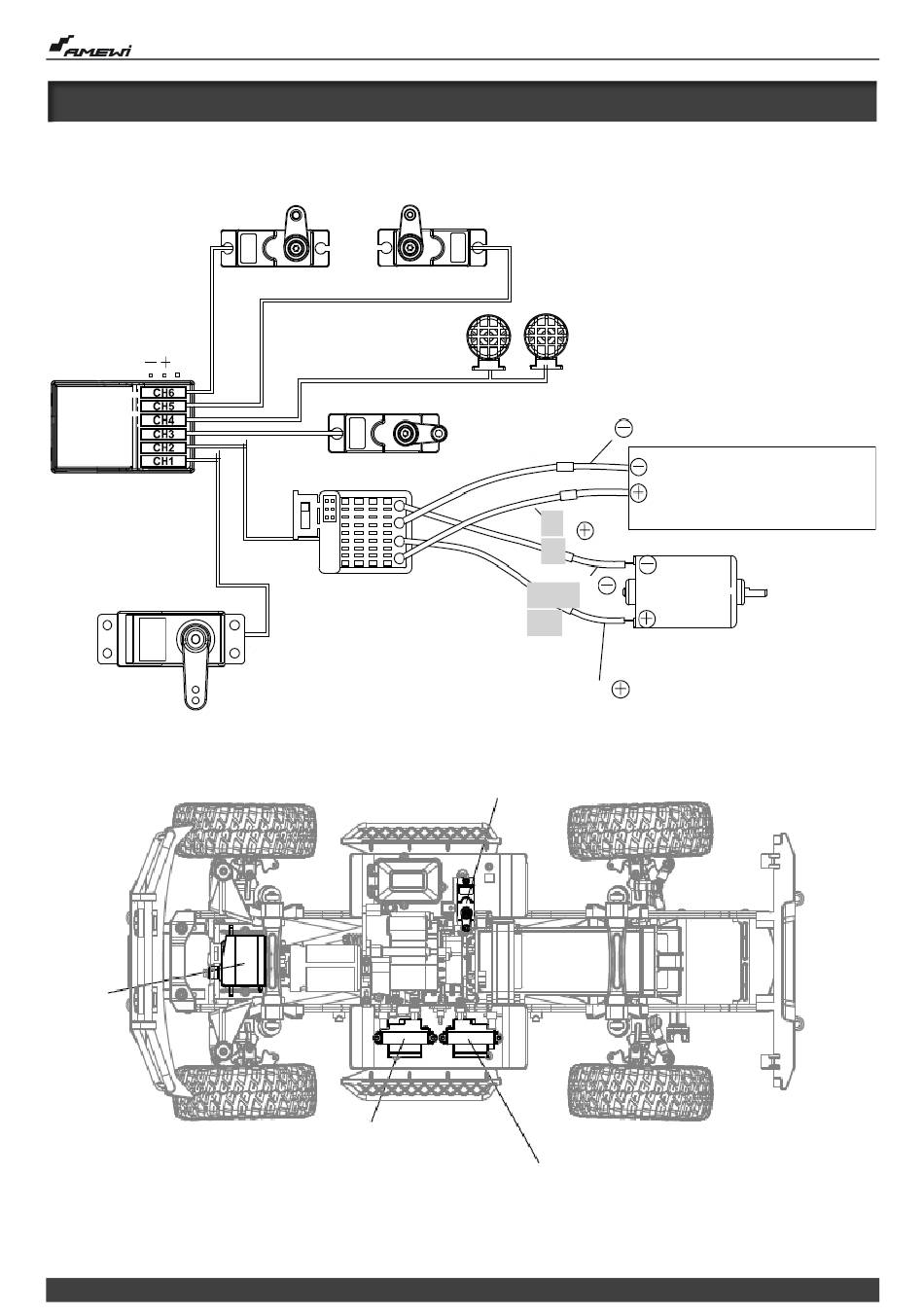

ANSCHLUSSDIAGRAMM /
Servo Sperre hinteres Differential
Rear Differential
Lock Servo
Empfänger
Receiver
Lenk
Servo
(Kanal 1)
Steering
Servo
(CH1)
Servo vordere Differentialsperre (Kanal 5)
Front differential lock Servo (CH 5)
amewi.com
CONNECTION DIAGRAM
Regler
ESC
Lenk Servo
Steering Servo
BEDIENUNGSANLEITUNG / INSTRUCTION MANUAL AMXROCK RCX10
Servo Sperre vorderes Differential
Front Differential Lock Servo
LED Beleuchtung
LED Light
Schaltgetriebe Servo
Shift Servo
Rot
Red
Schwarz
Black
Rot
Red
Schaltservo (3. Kanal)
Shift Servo (CH3)
Servo hintere Differentialsperre (Kanal 6)
Rear differential lock Servo (CH 6)
Schwarz
Black
Akku
Battery
Motor
