Boffi eclipse Montage- Und Serviceanleitung Seite 4

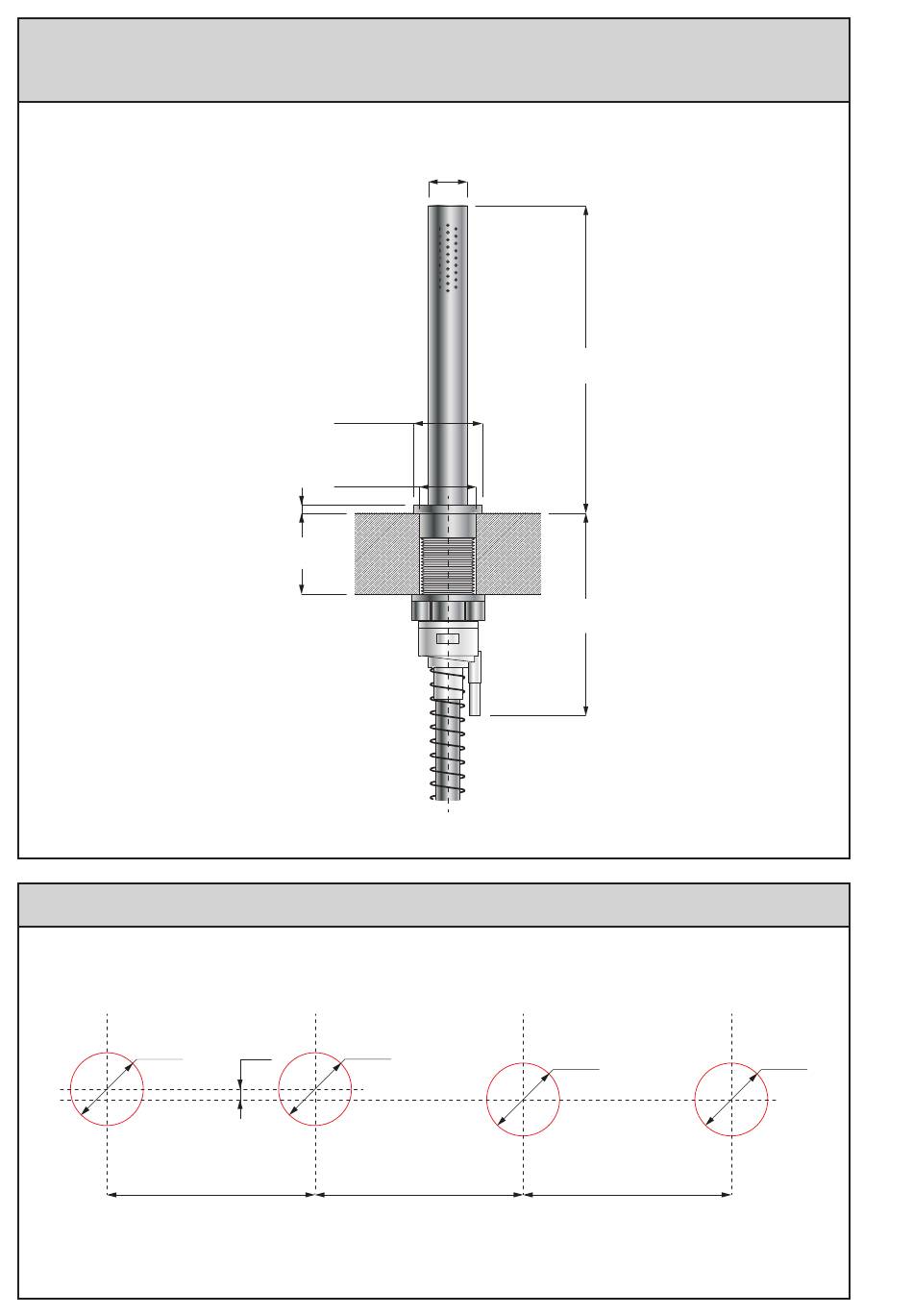

Dimensioni d'ingombro e quote di fissaggio
Overall dimensions and fixing points
Dimensions d'encombrement et fixations
5mm
13/64"
MAX. 50mm
MAX. 1" 31/32
Schema di foratura - Drilling's diagram
Schème de percement - Lochenschablone
Ø35mm
5mm
Ø1" 3/8
13/64"
100mm
3" 15/16
Maßen und Befestigungshöhe
Ø24mm
Ø15/16"
Ø42,5mm
Ø1" 43/64
Ø35mm
Ø1" 3/8
Ø35mm
Ø1" 3/8
100mm
3" 15/16
-4-
190mm
7" 31/64
125mm
4" 59/64
Ø35mm
Ø1" 3/8
100mm
3" 15/16
Ø35mm
Ø1" 3/8
