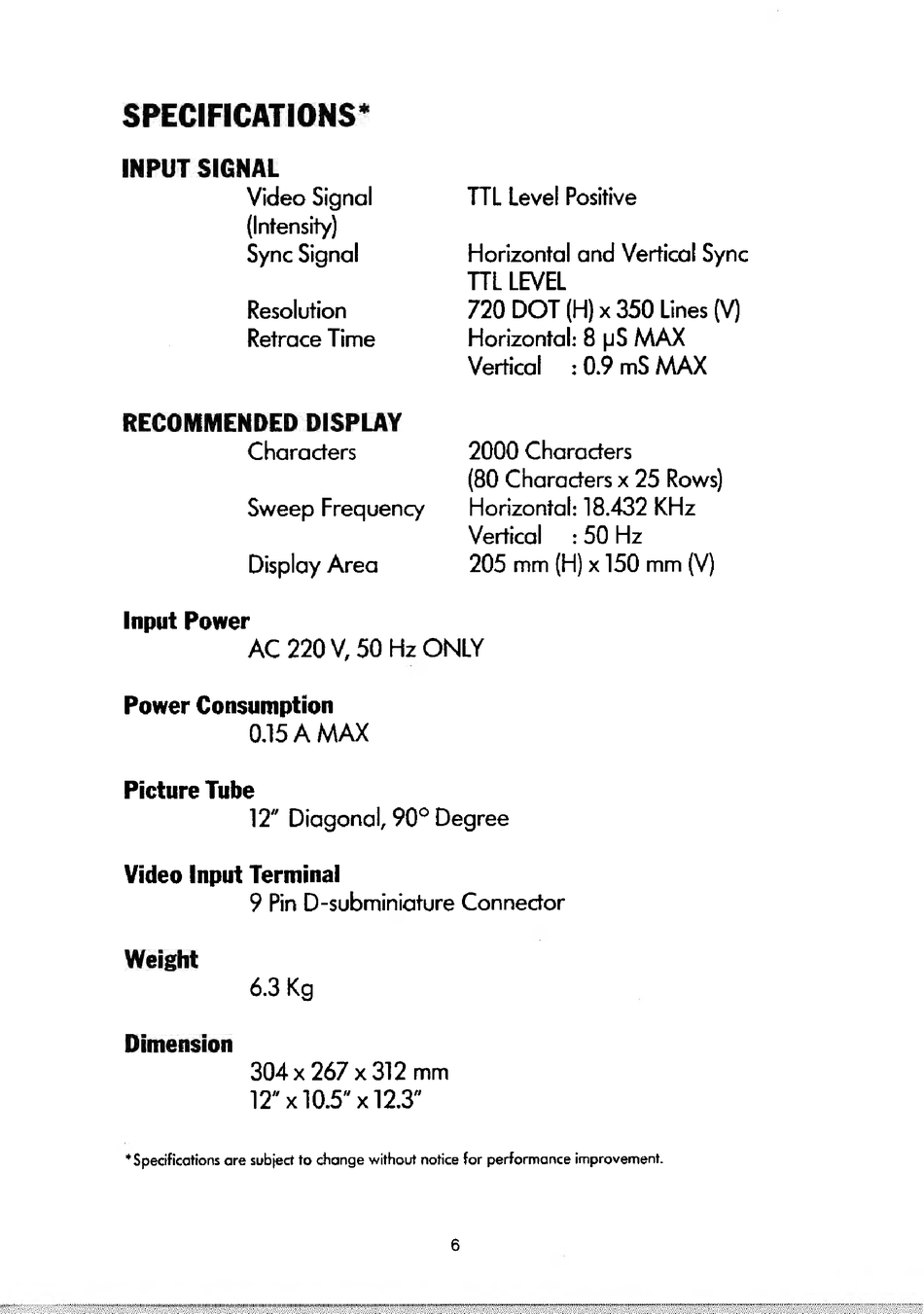

SPECIFICATIONS*
INPUT SIGNAL
Video Signal TTL Level Positive
(Intensity)
Sync Signal Horizontal and Vertical Sync
TTL LEVEL
Resolution 720 DOT (H} x 350 Lines (V)
Retrace Time Horizontal: 8 pS MAX
Vertical : 0.9 mS MAX
RECOMMENDED DISPLAY
Characters 2000 Characters
(80 Characters x 25 Rows)
Sweep Frequency —_ Horizontal: 18.432 KHz
Vertical =: 50 Hz
Display Area 205 mm (H) x 150 mm (Y)
Input Power
AC 220 V, 50 Hz ONLY
Power Consumption
0.15 A MAX
Picture Tube
12" Diagonal, 90° Degree
Video Input Terminal
9 Pin D-subminiature Connector
Weight
6.3 Kg
Dimension
304 x 267 x 312 mm
12" x 10.5" x 12.3"
* Specifications are subject to change without notice for performance improvement.
