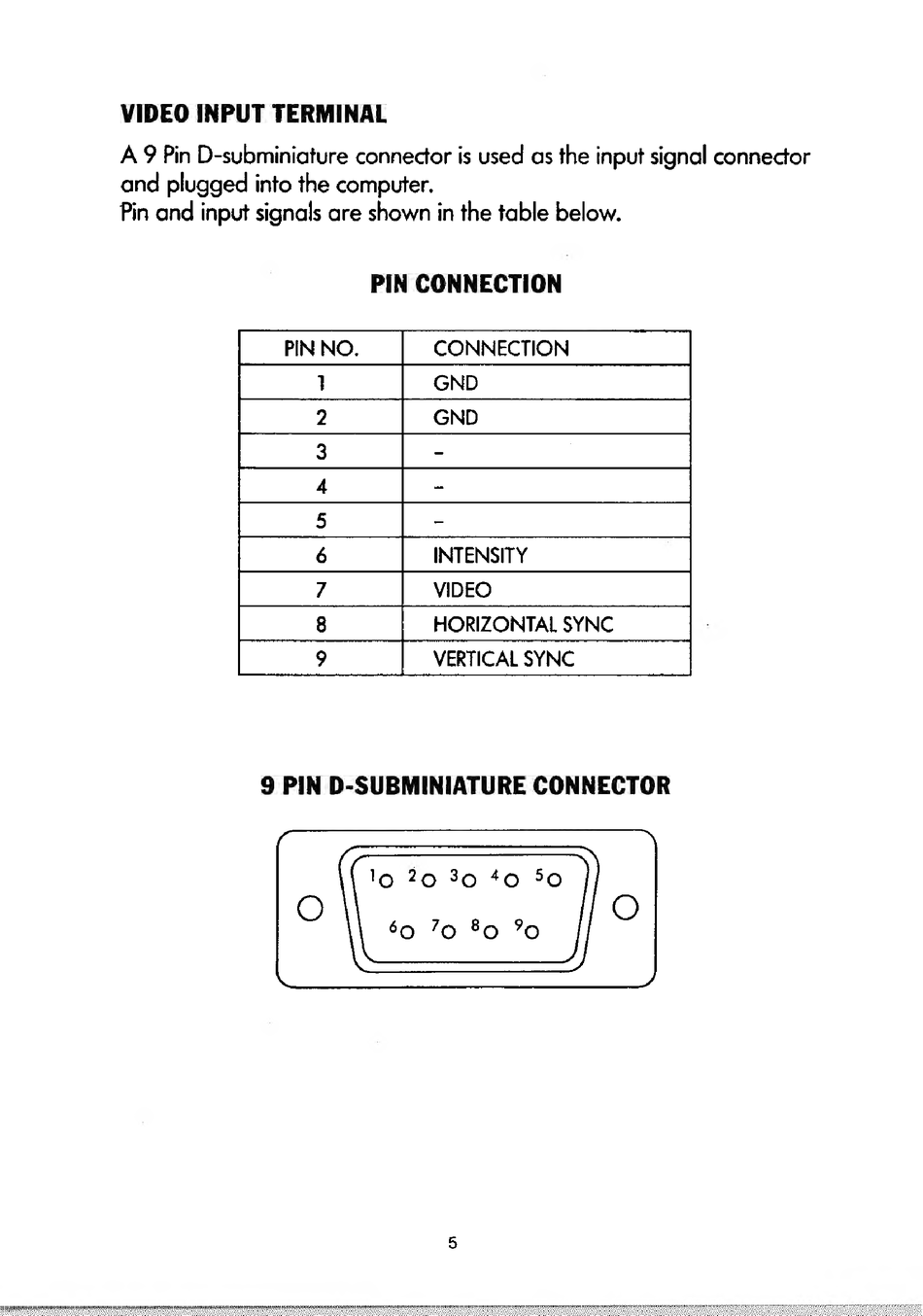

VIDEO INPUT TERMINAL
A 9 Pin D-subminiature connector is used as the input signal connector
and plugged into the computer.
Pin and input signals are shown in the table below.
PIN CONNECTION
INTENSITY
VIDEO
HORIZONTAL SYNC
VERTICAL SYNC
3
4
7
8
9 PIN D-SUBMINIATURE CONNECTOR
lo 20 30 40 50
609 70 80 %o
