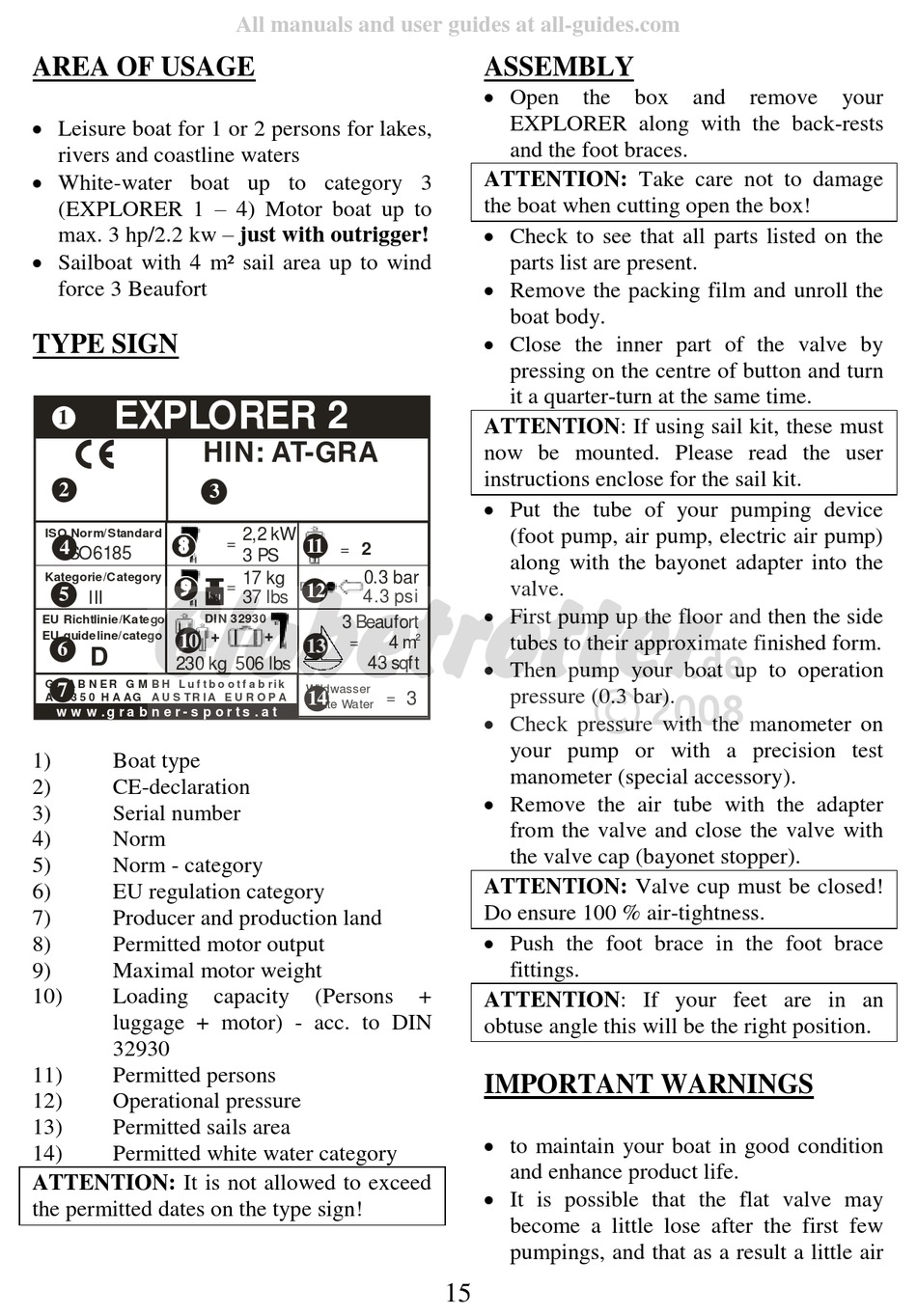

AREA OF USAGE

 Leisure boat for 1 or 2 persons for lakes,
rivers and coastline waters
 White-water boat up to category 3
(EXPLORER 1 – 4) Motor boat up to
max. 3 hp/2.2 kw – just with outrigger!
 Sailboat with 4 m² sail area up to wind
force 3 Beaufort

TYPE SIGN

EXPLORER 2
1
HIN: AT-GRA
2
ISO Norm/Standard
4
ISO 6185
Kategorie/Category
5
III
EU Richtlinie/Katego DIN 32930
EU guideline/catego
10
6
D
230 kg 506 lbs
G R A B N E R G M B H L u f t b o o t f a b r i k
7
A - 3 3 5 0 H A AG A U S TR I A E U R O P A
w w w . g r a b n e r - s p o r t s . a t
1) Boat type
2) CE-declaration
3) Serial number
4) Norm
5) Norm - category
6) EU regulation category
7) Producer and production land
8) Permitted motor output
9) Maximal motor weight
10) Loading
luggage + motor) - acc. to DIN
32930
11) Permitted persons
12) Operational pressure
13) Permitted sails area
14) Permitted white water category
ATTENTION: It is not allowed to exceed
the permitted dates on the type sign!
All manuals and user guides at all-guides.com
3
2,2 kW
=
11
2
=
3 PS
0.3 bar
17 kg
=
12
4.3 psi
37 lbs
3 Beaufort
+ +
=
13
43 sqft
Wildwasser
14
White Water
capacity (Persons

ASSEMBLY

 Open
EXPLORER along with the back-rests
and the foot braces.
ATTENTION: Take care not to damage
the boat when cutting open the box!
 Check to see that all parts listed on the
parts list are present.
 Remove the packing film and unroll the
boat body.
 Close the inner part of the valve by
pressing on the centre of button and turn
it a quarter-turn at the same time.
ATTENTION: If using sail kit, these must
now be mounted. Please read the user
instructions enclose for the sail kit.
 Put the tube of your pumping device
(foot pump, air pump, electric air pump)
along with the bayonet adapter into the
valve.
 First pump up the floor and then the side
2 tubes to their approximate finished form.
4 m
 Then pump your boat up to operation
pressure (0.3 bar).
3
=
 Check pressure with the manometer on
your pump or with a precision test
manometer (special accessory).
 Remove the air tube with the adapter
from the valve and close the valve with
the valve cap (bayonet stopper).
ATTENTION: Valve cup must be closed!
Do ensure 100 % air-tightness.
 Push the foot brace in the foot brace
fittings.
+
ATTENTION: If your feet are in an
obtuse angle this will be the right position.

IMPORTANT WARNINGS

 to maintain your boat in good condition
and enhance product life.
 It is possible that the flat valve may
become a little lose after the first few
pumpings, and that as a result a little air
15
