2. Unpacking operation

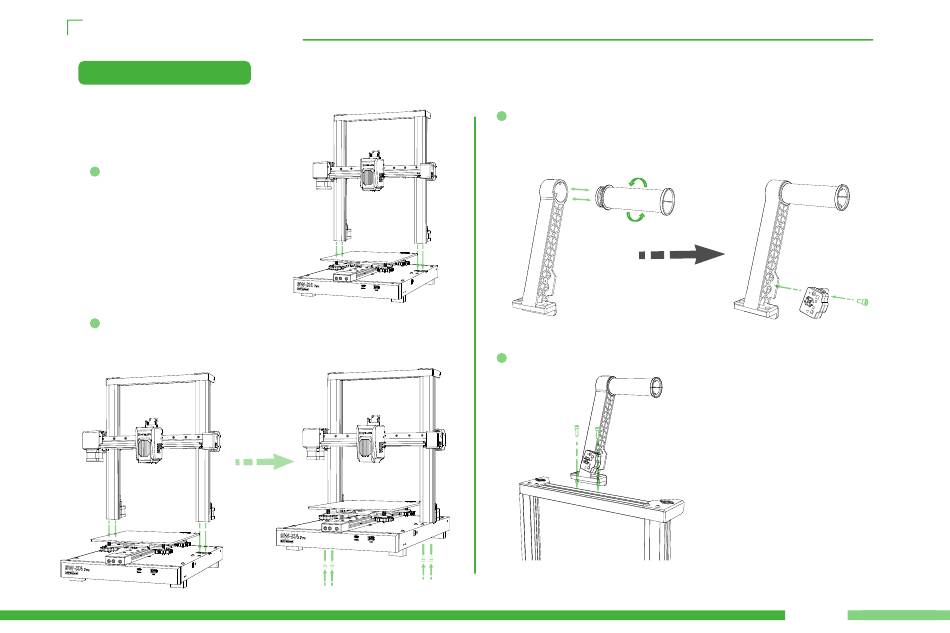

2.1 Product installation
Inse爀琀 the gant爀礀 into the slot on the
1
base. Ensure that the gant爀礀 direction
matches the bottom slot direction.
Use four M5*40 screws to lock the gant爀礀 on the base. When locking
2
the screws, make sure to keep the pro昀椀le close to the inside and then
lock it to prevent the appearance of external eight characters.
M5*40
M5*40
Assemble the material rack assembly as shown in the following 昀椀gure:
3
Thread the material pipe through the material rack and tighten it, and then
install the broken material detector assembly on the right side of the
material rack with a φ 4 x3xM3 screw.
Install the rack assembly to the top cross member using two M4*18 screws.
4
M4*18
φ4x3xM3
04
