Electrical heating coil for CDP dehumidifier

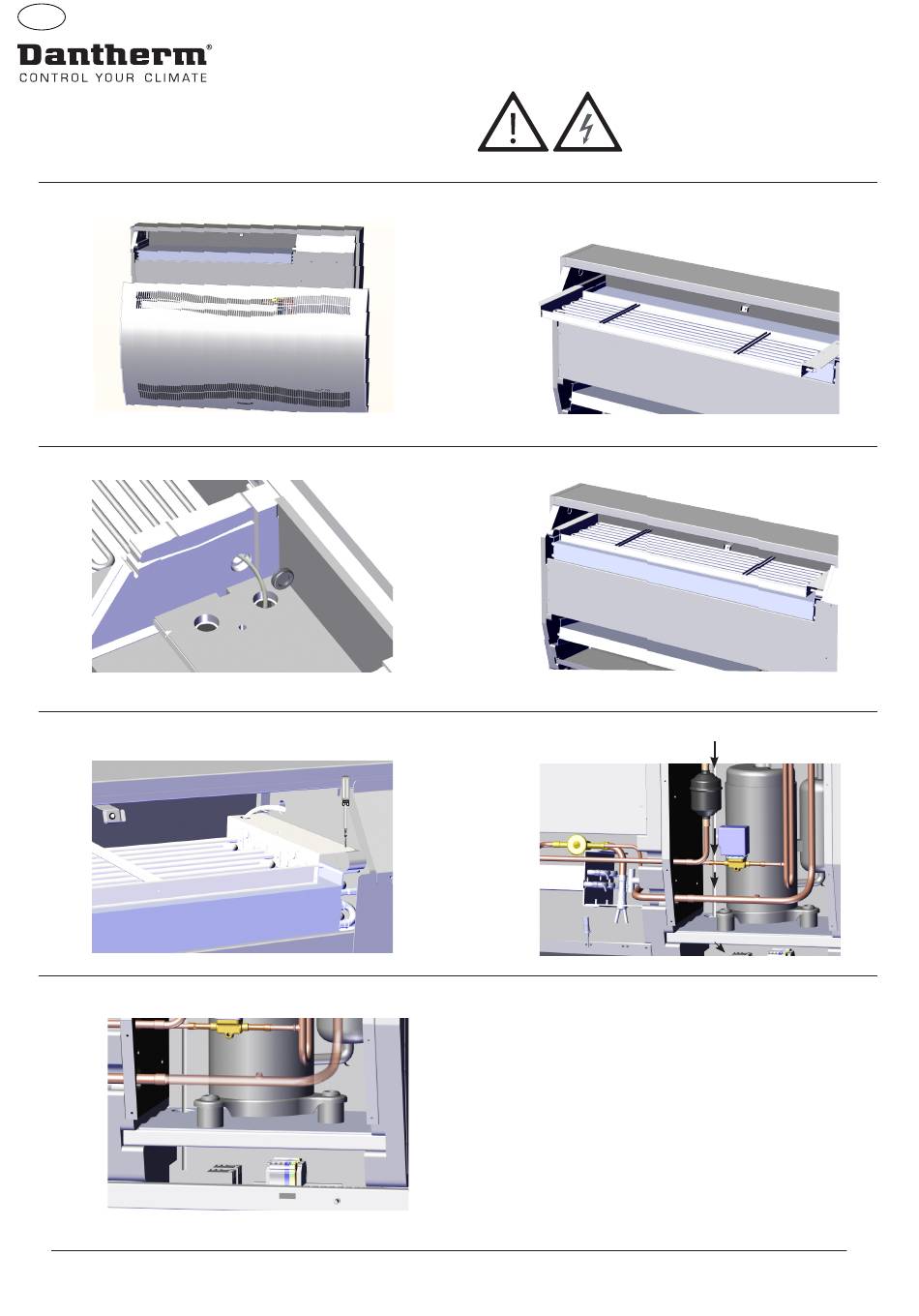

Installation procedure
1. Remove front cover
3. Remove rubber plug and pull wire to compressor compartment.
5. Secure heating coil with two screws left and right.
7. Gain access to terminal rail by removing rubber plug.
4
Disconnect power
2. Slide heating coil halfway in.1/2
4 . Slide heating coil all the way in place. 2/2
6. Pull wire through compressor compartment.
8. Connect wires to terminal rail and circuit board
according to diagram on page 30
