Fremdspannungsabstand:
bezogen
auf
Na = 50 mW
niederohmige
Eingánge
> 50 dB, typischer Wert 56 dB, Hoch-
ohmige
Eingánge:
> 50 dB, typischer
Wert 60 dB
bezogen auf Nennleistung: Eingang Mi-
krofon:
> 56 dB, typischer Wert 60 dB
Eingang Phono-Magnet:
> 62 dB, typi-
scher Wert 68 dB. Hochohmige Eingán-
ge:
> 76
dB, typischer
Wert
86 dB
Übersprechdämpfung:
> 45 dB
bei
1 kHz
Dear customer,
please read these instructions carefully
before
you
start using your
Dual
so
that you will not encounter
any prob-
lems resulting from faulty connections
or handling.
Operating instructions
Input selector switch
Monitor switch
Stereo / mono switch
Contour / linear switch
Volume control
Balance control
Bass control
Treble control
Loudspeaker switch
On / off switch
Headphone jack
Pilot lamp
Loudspeaker connection right
Loudspeaker connection left
Input phono crystal
Monitor connection
Band tape connection
Input tuner
Input phono magnet
Input microphone
see
6oVsea.._ta—e.edcd.o.n..*.

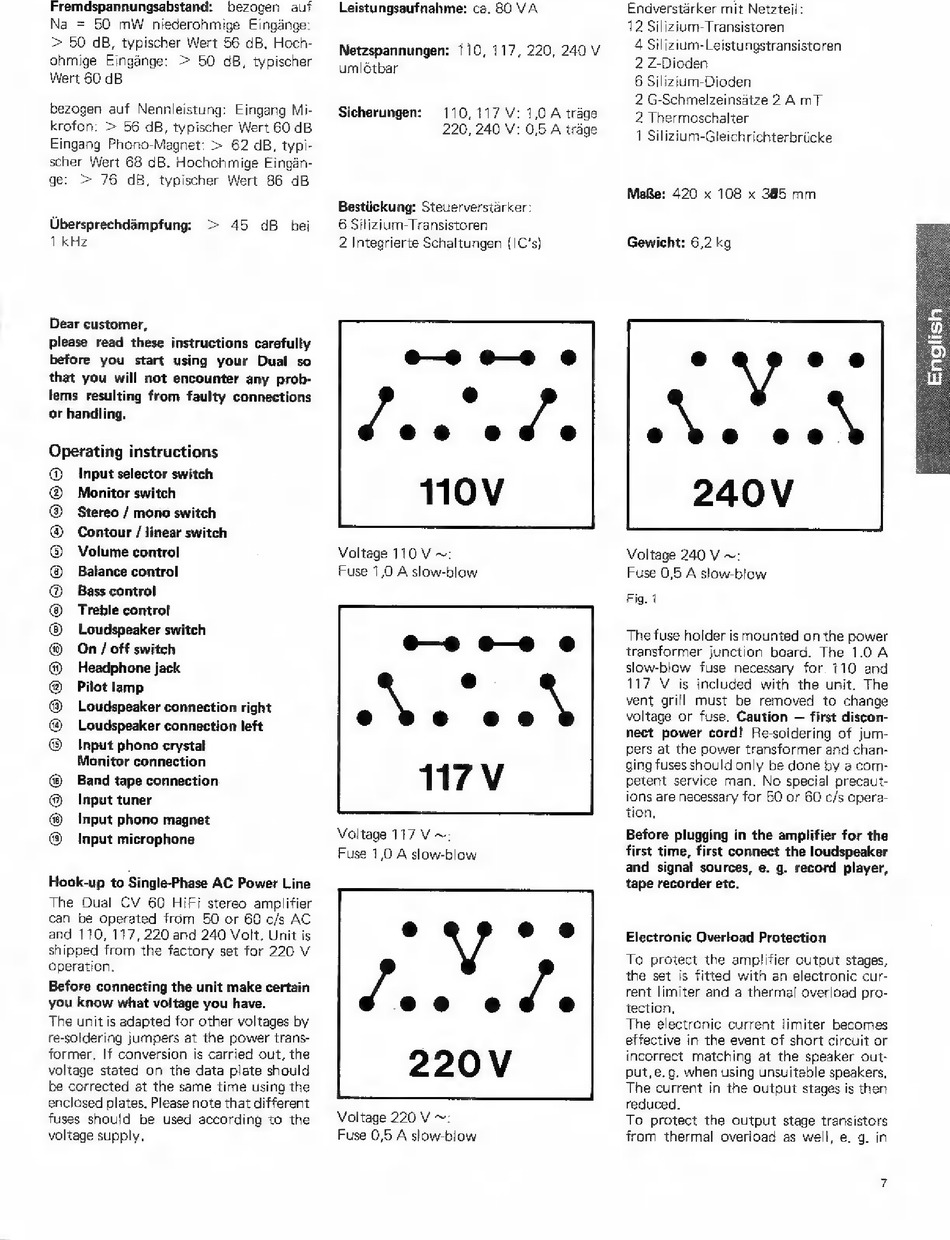

Hook-up to Single-Phase AC Power Line
The
Dual
CV 60 HiFi stereo amplifier
can be operated fróm 50 or 60 c/s AC
and 110, 117, 220 and 240 Volt. Unit is
shipped from the factory set for 220 V
operation,
Before connecting the unit make certain
you know what voltage you have.
The unit is adapted for other voltages by
re-soldering jumpers at the power trans-
former, If conversion is carried out, the
voltage stated on the data plate should
be corrected at the same time using the
enclosed plates, Please note that different
fuses should be used according to the
voltage supply.
Leistungsaufnahme: ca. 80 VA
Netzspannungen:
110, 117, 220, 240 V
umlötbar
Sicherungen:
110, 117 V: 1,0 A träge
220, 240 V: 0,5 A träge
Bestückung: Steuerverstärker:
6 Silizium-Transistoren
2 Integrierte Schaltungen (1C's)
Voltage 110 V ~
Fuse 1,0 A slow-blow
Voltage 117 V =:
Fuse 1,0 A slow-blow
Voltage 220 V =:
Fuse 0,5 A slow-blow
Endverstárker mit Netzteil:
12 Silizium-Transistoren
4 Silizium-Leistungstransistoren
2 Z-Dioden
6 Silizium-Dioden
2 G-Schmelzeinsátze 2 A mT
2 Thermoschalter
1 Silizium-Gleichrichterbrücke
Maße: 420 x 108 x 385 mm
Gewicht: 6,2 kg
Voltage 240 V ~:
Fuse 0,5 A slow-blow
Fig. 1
The fuse holder is mounted on the power
transformer junction
board. The 1.0 A
slow-blow fuse necessary for 110 and
117 V is included with the unit. The
vent grill must be removed
to change
voltage or fuse, Caution — first discon-
nect power cord! Re-soldering of jum-
pers at the power transformer and chan-
ging fuses should only be done by a com-
petent service man. No special precaut-
ions are necessary for 50 or 60 c/s opera-
tion,
Before plugging in the amplifier for the
first time, first connect the loudspeaker
and signal sources, e. g. record player,
tape recorder etc.
Electronic Overload Protection
To protect the amplifier output stages,
the set is fitted with an electronic cur-
rent limiter and a thermal overload pro-
tection,
The electronic current limiter becomes
effective in the event of short circuit or
incorrect
matching at the speaker out-
put, e. g. when using unsuitable speakers.
The current in the output stages is then
reduced.
To protect the output stage transistors
from thermal overload as well, e. g. in
