Changing gear cables
Please direct questions regarding the Rohloff Speedhub 500/14 directly to
Rohloff. Further specific information regarding the Speedhub (e.g. manuals)
can be found on their homepage (www.rohloff.de).
Important:
Always follow these instructions when changing your gear cables!
Never open the shiftbox before releasing the tension of the return
springs by unscrewing the cable retainer first! Pay special attention
to not bending parts through improper handling, to ensure a perma­
nently reliable operation of the ratchets. Ratchets and tooth ring
can be cleaned using compressed air. Only use low viscosity oil with
maximum SAE10 to lubricate the switch unit. Do not use highly viscous
lubricants or grease, as those can affect the proper function of the
ratchet mechanism! A change of gear cables is always conducted with
the shiftbox detached from the hub and removed shift cable index
housings.
Required tools & material:
» 2 shifter cables (max. nipple diameter 4,5mm)
» 9 mm wrench
» 2,5 mm Allen key

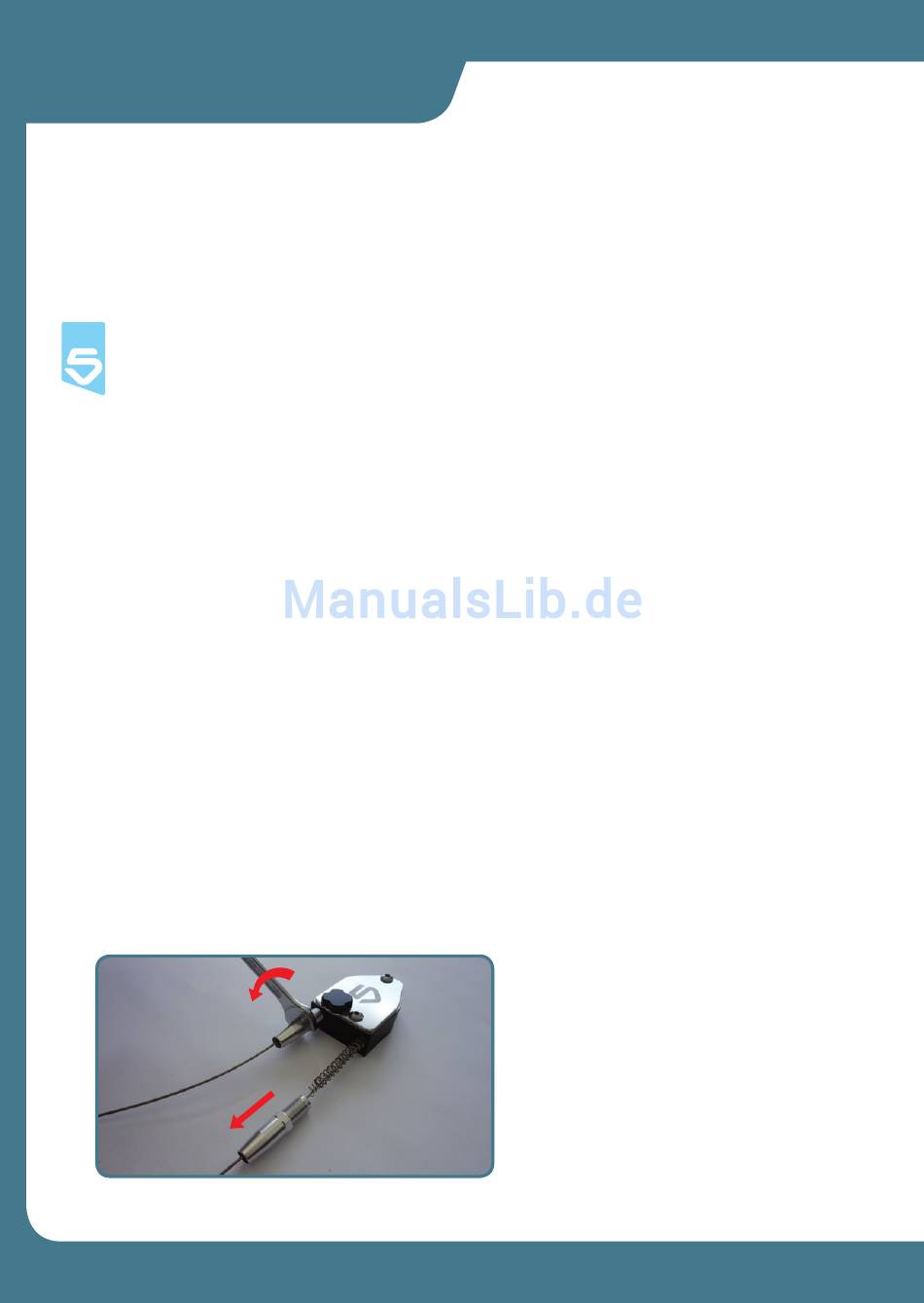

1. Unscrew the cable retainers using the wrench. The return springs will
lose their tension and become visible.
