LIMITLESS CUSTOM CURVES
(ONLY PH-1000/PH-1000 LINE)
The limitless curve feature is a unique
innovation. Using analogue technology,
we developed a unique design that allows
you to create unlimited equalisation curves
simply acting on 3 parameters - Bass
Turnover, Bass Shelf and Treble Cut - as it's
the most effective way to control and plot
the equalisation curve.

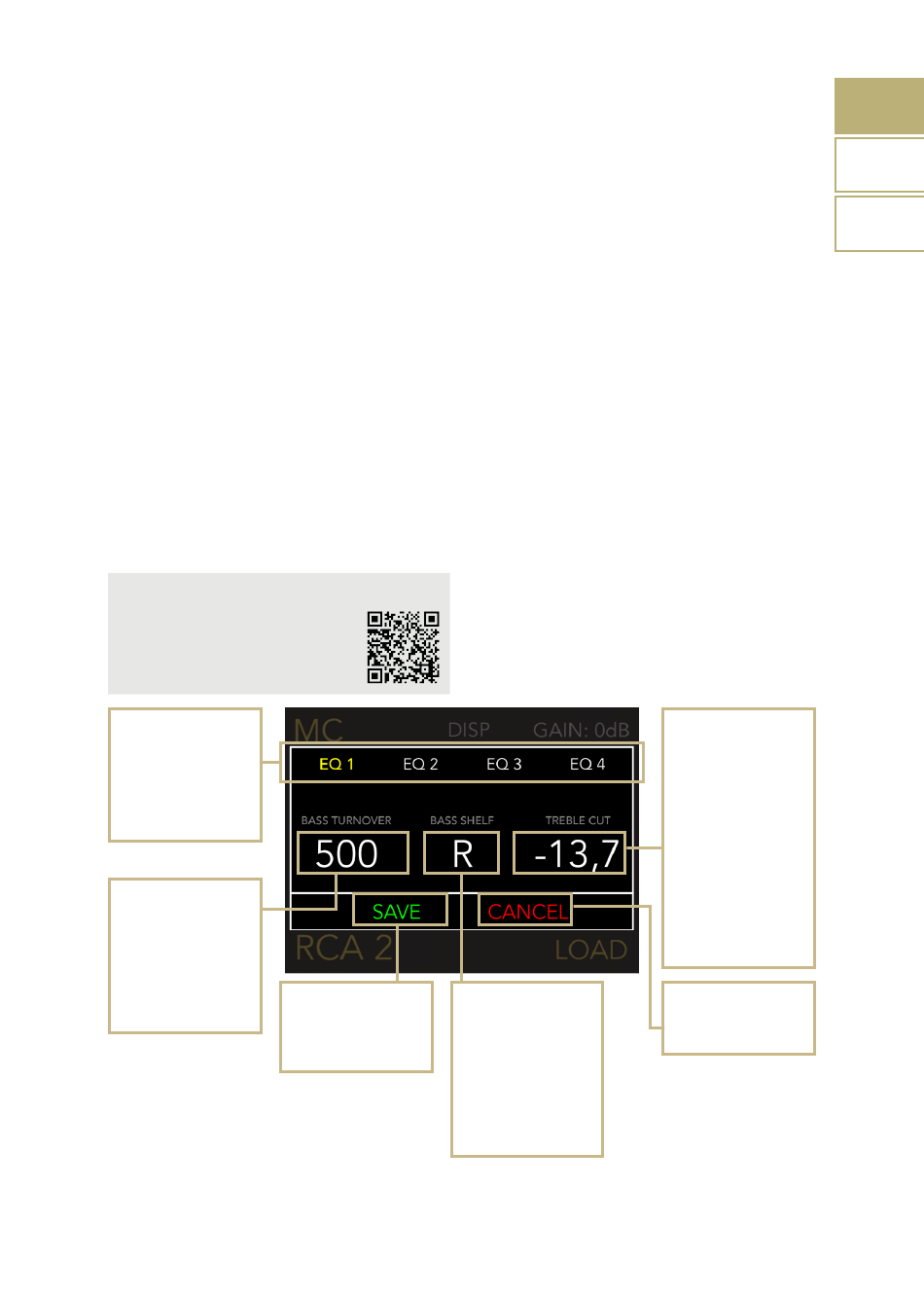

Browse the menu of the EQ curves till the
SETUP item and press the knob or the
ENTER key on the remote to access the
menu of the 4 customizable curves.
After modifying the parameters, press the
knob or the ENTER key on the remote to
save.
Now you can select the curve you just
created directly from the main menu.
Here's a complete list of parameters
for the most popular equalisation
curves:
www.goldnote.it/download/media/
PH-1000_EQ_Card.pdf
EQ preset
EQ 1
EQ 2
EQ 3
EQ 4
Bass Turnover
200 500
250 600
300 630
350 700
400 800
Save Bass Shelf
Save the values as a X = +12dB
custom EQ. C = +14dB
A = +16dB
B = +18dB
R = +20dB
N = Null
12
Bass Turnover (Hz)
This parameter controls the frequency at
which the EQ curve reaches 3dB. You can
adjust the frequency from 200Hz to 800Hz
(for the RIAA standard EQ curve, this
parameter is 500Hz).
Bass Shelf (dB)
This parameter controls the gain at 10Hz
and it's also called "low frequency shelving
filter", allowing you to adjust the gain from
+12dB to +20dB. It can also be set to N
which means it won't affect the curve (for the
RIAA standard EQ curve, this parameter is
R= +20dB).
Treble Cut (dB)
Also known as "10kHz gain roll-off", this
parameter determines the cut at 10kHz and
can be adjusted from 0dB to -24dB (for the
RIAA standard EQ curve, this parameter is
-13.7dB).
Treble Cut
0 -10,5
-5 -11
-5,5 -12
-5,7 -12,3
-6 -12,7
-7 -13,7
-8 -15
-8,5 -16
-10 -18
-10,3 -24
Cancel
Exit the menu.
