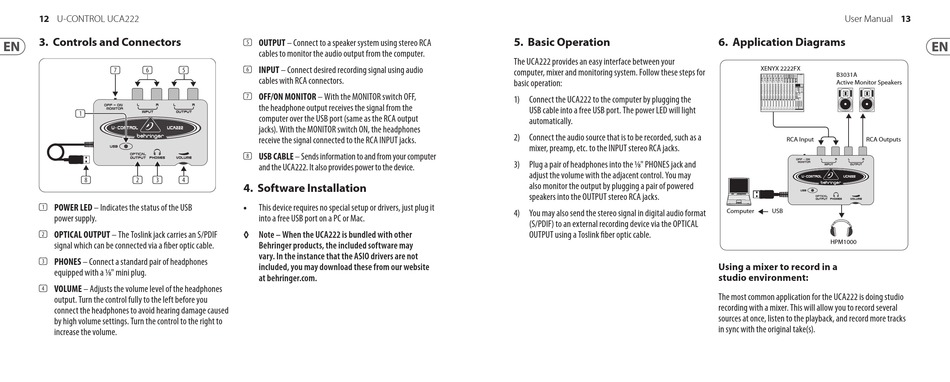

12 U-CONTROL UCA222
3. Controls and Connectors
(7) (6) (5)
(1)
(8) (2) (3) (4)
(1) POWER LED – Indicates the status of the USB
power supply.
(2) OPTICAL OUTPUT – The Toslink jack carries an S/PDIF
signal which can be connected via a fiber optic cable.
(3) PHONES – Connect a standard pair of headphones
equipped with a 1/8" mini plug.
(4) VOLUME – Adjusts the volume level of the headphones
output. Turn the control fully to the left before you
connect the headphones to avoid hearing damage caused
by high volume settings. Turn the control to the right to
increase the volume.
(5) OUTPUT – Connect to a speaker system using stereo RCA
cables to monitor the audio output from the computer.
(6) INPUT – Connect desired recording signal using audio
cables with RCA connectors.
(7) OFF/ON MONITOR – With the MONITOR switch OFF,
the headphone output receives the signal from the
computer over the USB port (same as the RCA output
jacks). With the MONITOR switch ON, the headphones
receive the signal connected to the RCA INPUT jacks.
(8) USB CABLE – Sends information to and from your computer
and the UCA222. It also provides power to the device.
4. Software Installation
• • This device requires no special setup or drivers, just plug it
into a free USB port on a PC or Mac.
◊ ◊ Note – When the UCA222 is bundled with other
Behringer products, the included software may
vary. In the instance that the ASIO drivers are not
included, you may download these from our website
at behringer.com.
5. Basic Operation
The UCA222 provides an easy interface between your
computer, mixer and monitoring system. Follow these steps for
basic operation:
1) Connect the UCA222 to the computer by plugging the
USB cable into a free USB port. The power LED will light
automatically.
2) Connect the audio source that is to be recorded, such as a
mixer, preamp, etc. to the INPUT stereo RCA jacks.
3) Plug a pair of headphones into the 1/8" PHONES jack and
adjust the volume with the adjacent control. You may
also monitor the output by plugging a pair of powered
speakers into the OUTPUT stereo RCA jacks.
4) You may also send the stereo signal in digital audio format
(S/PDIF) to an external recording device via the OPTICAL
OUTPUT using a Toslink fiber optic cable.
User Manual
6. Application Diagrams
XENYX 2222FX
B3031A
Active Monitor Speakers
RCA Input RCA Outputs
Computer USB
HPM1000
Using a mixer to record in a
studio environment:
The most common application for the UCA222 is doing studio
recording with a mixer. This will allow you to record several
sources at once, listen to the playback, and record more tracks
in sync with the original take(s).
