DeepMind 12

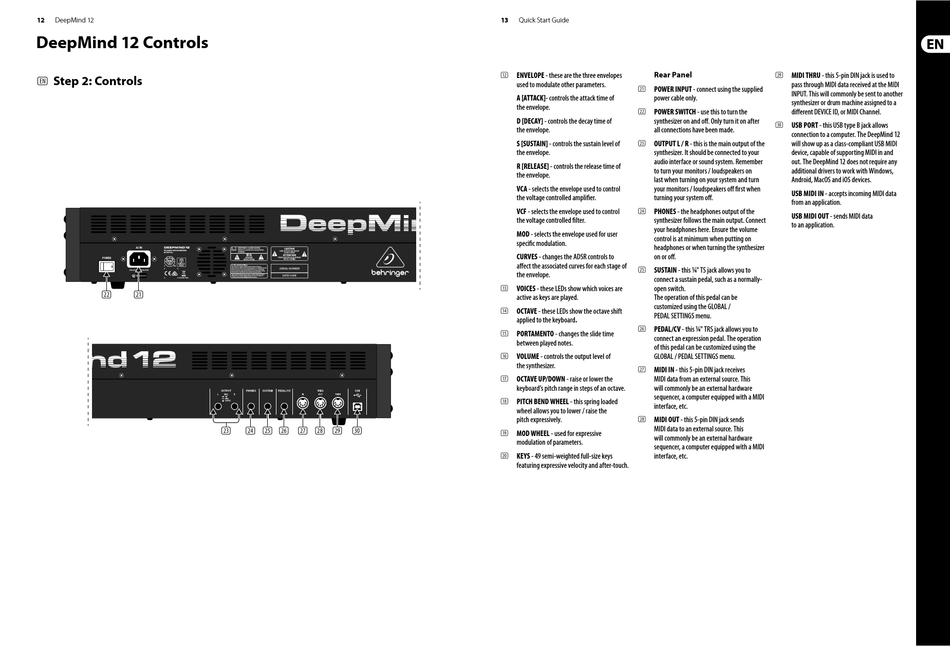

DeepMind 12 Controls
Step 2: Controls
(EN)
(22)
(21)
(23)
(24) (25) (26) (27) (28) (29) (30)
13
Quick Start Guide
Rear Panel
(12)
ENVELOPE - these are the three envelopes
used to modulate other parameters.
(21)
POWER INPUT - connect using the supplied
A [ATTACK]- controls the attack time of
power cable only.
the envelope.
(22)
POWER SWITCH - use this to turn the
D [DECAY] - controls the decay time of
synthesizer on and off . Only turn it on after
the envelope.
all connections have been made.
S [SUSTAIN] - controls the sustain level of
(23)
OUTPUT L / R - this is the main output of the
the envelope.
synthesizer. It should be connected to your
audio interface or sound system. Remember
R [RELEASE] - controls the release time of
to turn your monitors / loudspeakers on
the envelope.
last when turning on your system and turn
VCA - selects the envelope used to control
your monitors / loudspeakers off fi rst when
the voltage controlled amplifi er.
turning your system off .
(24)
VCF - selects the envelope used to control
PHONES - the headphones output of the
the voltage controlled fi lter.
synthesizer follows the main output. Connect
your headphones here. Ensure the volume
MOD - selects the envelope used for user
control is at minimum when putting on
specifi c modulation.
headphones or when turning the synthesizer
CURVES - changes the ADSR controls to
on or off .
aff ect the associated curves for each stage of
(25)
SUSTAIN - this ¼" TS jack allows you to
the envelope.
connect a sustain pedal, such as a normally-
(13)
VOICES - these LEDs show which voices are
open switch.
active as keys are played.
The operation of this pedal can be
customized using the GLOBAL /
(14)
OCTAVE - these LEDs show the octave shift
PEDAL SETTINGS menu.
applied to the keyboard.
(26)
PEDAL/CV - this ¼" TRS jack allows you to
(15)
PORTAMENTO - changes the slide time
connect an expression pedal. The operation
between played notes.
of this pedal can be customized using the
(16)
VOLUME - controls the output level of
GLOBAL / PEDAL SETTINGS menu.
the synthesizer.
(27)
MIDI IN - this 5-pin DIN jack receives
(17)
OCTAVE UP/DOWN - raise or lower the
MIDI data from an external source. This
keyboard's pitch range in steps of an octave.
will commonly be an external hardware
sequencer, a computer equipped with a MIDI
(18)
PITCH BEND WHEEL - this spring loaded
interface, etc.
wheel allows you to lower / raise the
pitch expressively.
(28)
MIDI OUT - this 5-pin DIN jack sends
MIDI data to an external source. This
(19)
MOD WHEEL - used for expressive
will commonly be an external hardware
modulation of parameters.
sequencer, a computer equipped with a MIDI
(20)
KEYS - 49 semi-weighted full-size keys
interface, etc.
featuring expressive velocity and after-touch.
(29)
MIDI THRU - this 5-pin DIN jack is used to
pass through MIDI data received at the MIDI
INPUT. This will commonly be sent to another
synthesizer or drum machine assigned to a
diff erent DEVICE ID, or MIDI Channel.
(30)
USB PORT - this USB type B jack allows
connection to a computer. The DeepMind 12
will show up as a class-compliant USB MIDI
device, capable of supporting MIDI in and
out. The DeepMind 12 does not require any
additional drivers to work with Windows,
Android, MacOS and iOS devices.
USB MIDI IN - accepts incoming MIDI data
from an application.
USB MIDI OUT - sends MIDI data
to an application.
