Wired Controller - EDIFIER S760D Bedienungsanleitung

Illustrations
1
Line In
5.1CH
2
3
4
R L
5
Coaxial
Optical 1
6
Optical 2
Optical 3
Power
7
On Off
8

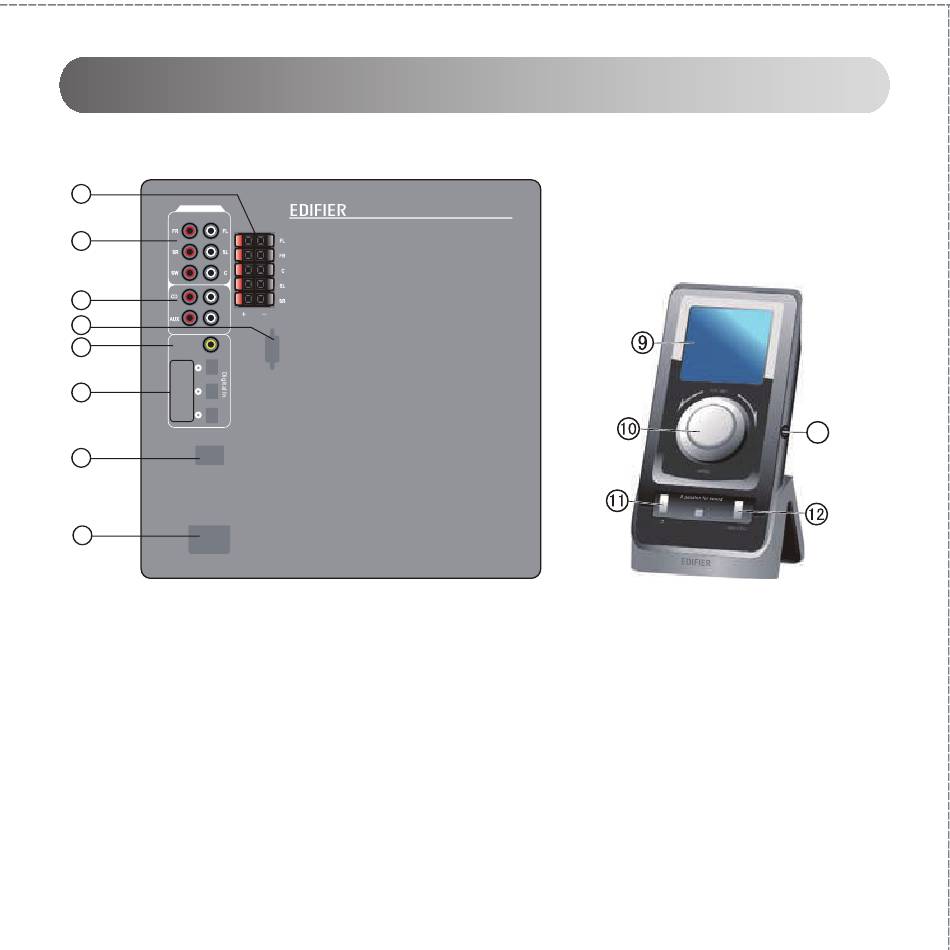

Rear panel of subwoofer
1. Speaker output ports
2. 5.1CH input connector ports
3. Stereo input connector ports (AUX/CD)
4. Wired controller connector port
5. Coaxial input connector
6. Optical connector ports
7. Master power switch
8. Power cord connector port
4
English
Speaker Out
Wired
Controller
S760D
Multimedia Speaker
9. LCD display window
10. Function dial/master volume dial
11. Standby/ON
12. Audio source selector
13. Headphone port
13

Wired controller
