ASSEMBLY
UNBOX & INSTALL LEGS

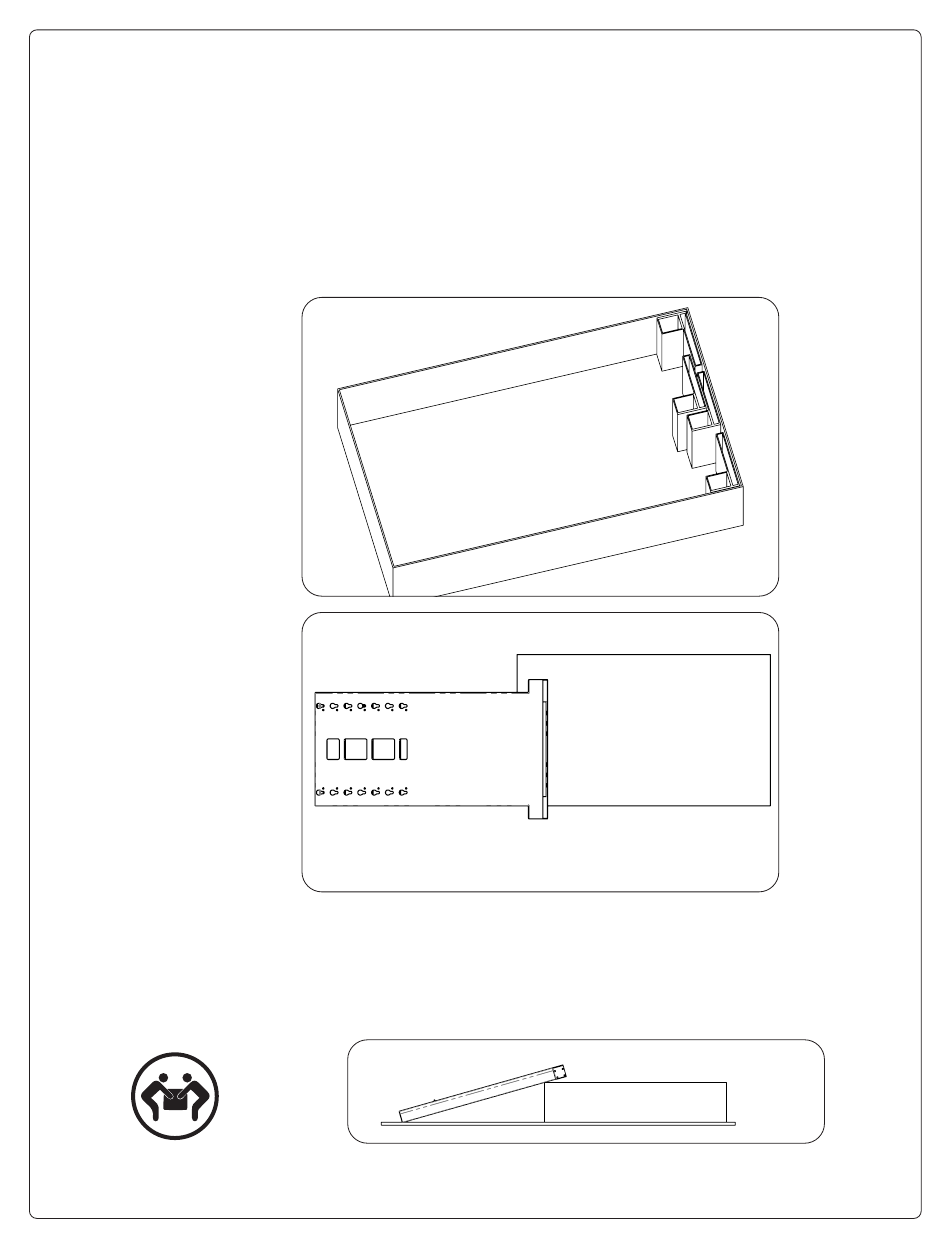

Empty box and arrange the four L shaped package inserts in the bottom
of the box as shown below.
Replace the box top. Remove Upper and Lower Rear Covers and position the
Header Wall face up on the end of the closed box where the L shaped package
inserts are reinforcing the box. Position the Header Wall as shown to allow
assembly of Legs.
Salamander Designs - XL Fixed Height Mobile Display Stands
Emptybox and arrange the four L shaped package inserts in the bottom of the box as shown.
Replace the box top. Remove Upper and Lower Rear Covers and position the Header Wall face up
on the end of the closed box where the L shaped package inserts are reinforcing the box. Position
the Header Wall as shown to allow assembly of Legs.
Replace the box top. Remove Upper and Lower Rear Covers and position the Header Wall face up
on the end of the closed box where the L shaped package inserts are reinforcing the box. Position
the Header Wall as shown to allow assembly of Legs.
501-692 [4.20] page 4 of 21
