INSTALLATION ON A SUBWOOFER

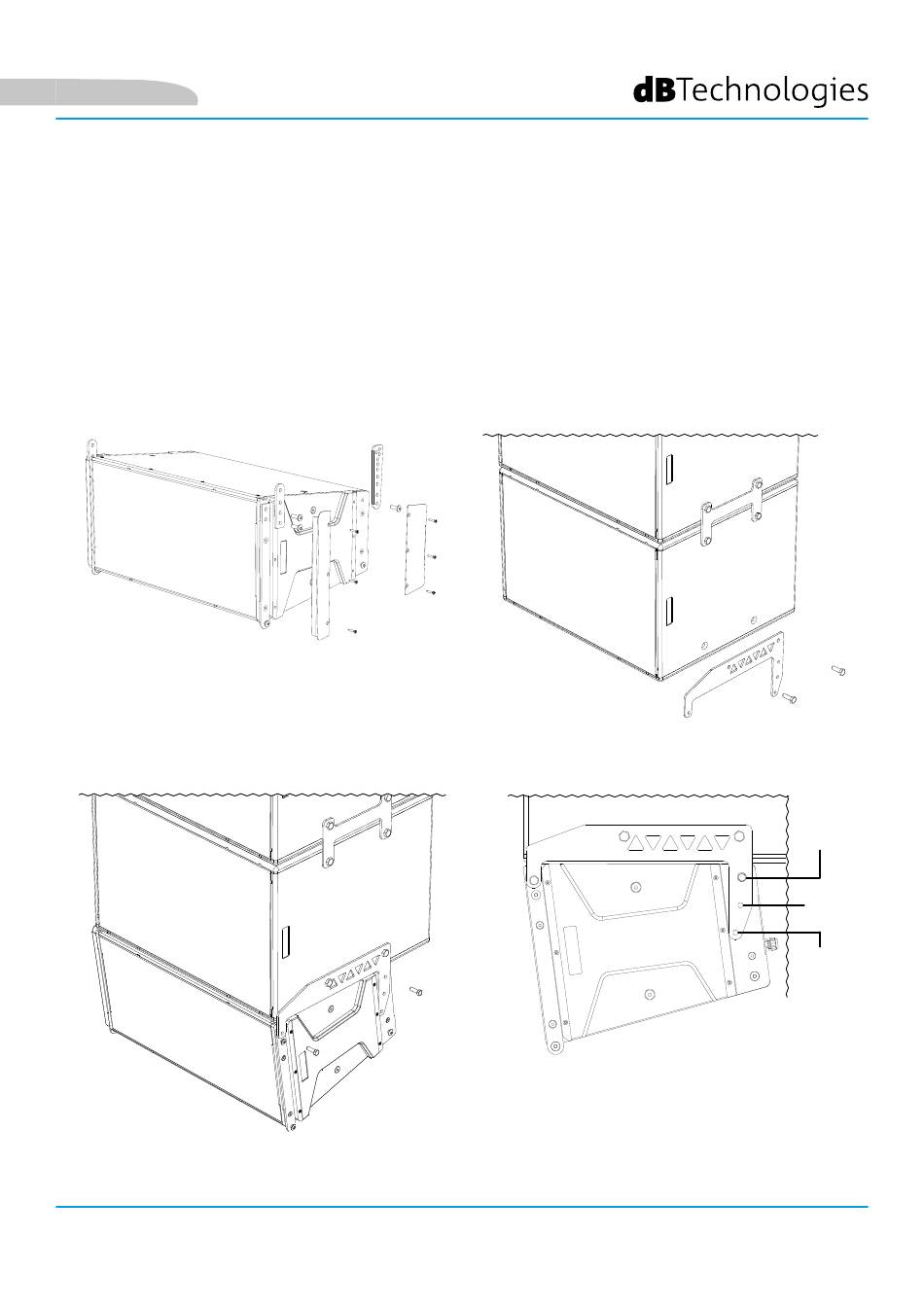

To connect the IS 210L speaker to an IS 115S subwoofer in a flown or stacked configuration, LP-6 brackets (not
included) will be needed. Proceed as follows:
1. Remove the side panels and connection brackets from the IS 210L speaker
2. Fasten the LP-6 brackets to the subwoofer
3. Fasten the speaker to the LP-6 brackets
4. Select the tilt angle from -7.5°, 0° or +7.5°
For more information, refer to the LP-6 bracket manual.
IS 210L
1.
3.
2.
4.
-7.5°
0°
+7.5°
