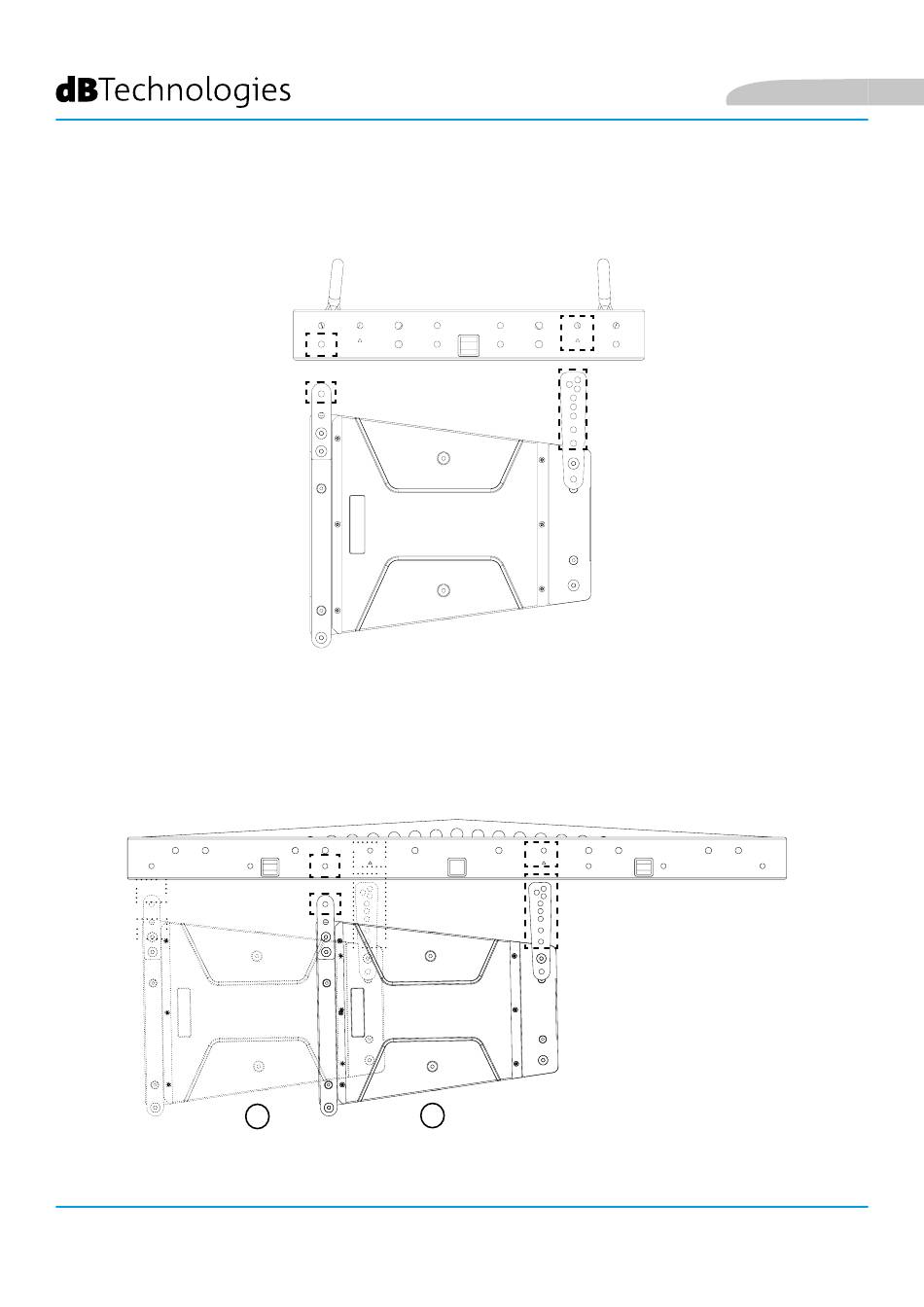

INSTALLATION ON A DRK-1 FLYBAR

Connect the speaker to the flybar by inserting the M8 screws and bolts supplied with the flybar into the holes
indicated. An arrow on the flybar indicates the hole to use for mounting the rear connection brackets. Select the
tilt angle on the rear connection brackets to suit the configuration.

INSTALLATION ON A DRK-2 FLYBAR

Connect the speaker to the flybar by inserting the M8 screws and bolts supplied with the flybar into the holes in-
dicated: configuration A for positive angles, configuration B for negative angles. An arrow on the flybar indicates
the hole to use for mounting the rear connection brackets. Select the tilt angle on the rear connection brackets to
suit the configuration.
A
B
