AFLAMO AV-WM100UNI-NH Benutzerhandbuch Seite 7

Model Number
AV-WM100UNI-NH
AV-WM120UNI-NH
AV-WM140UNI-NH
AV-WM160UNI-NH
AV-WM180UNI-NH
Note:
Appliance is NOT load-bearing. Carefully consider weight of finishing materials when constructing rough framing.
Ensure installation complies with all local building codes and requirements.
All viewing options (single-sided, two-sided [left or right], and three-sided) use the same framing dimensions.
Note:

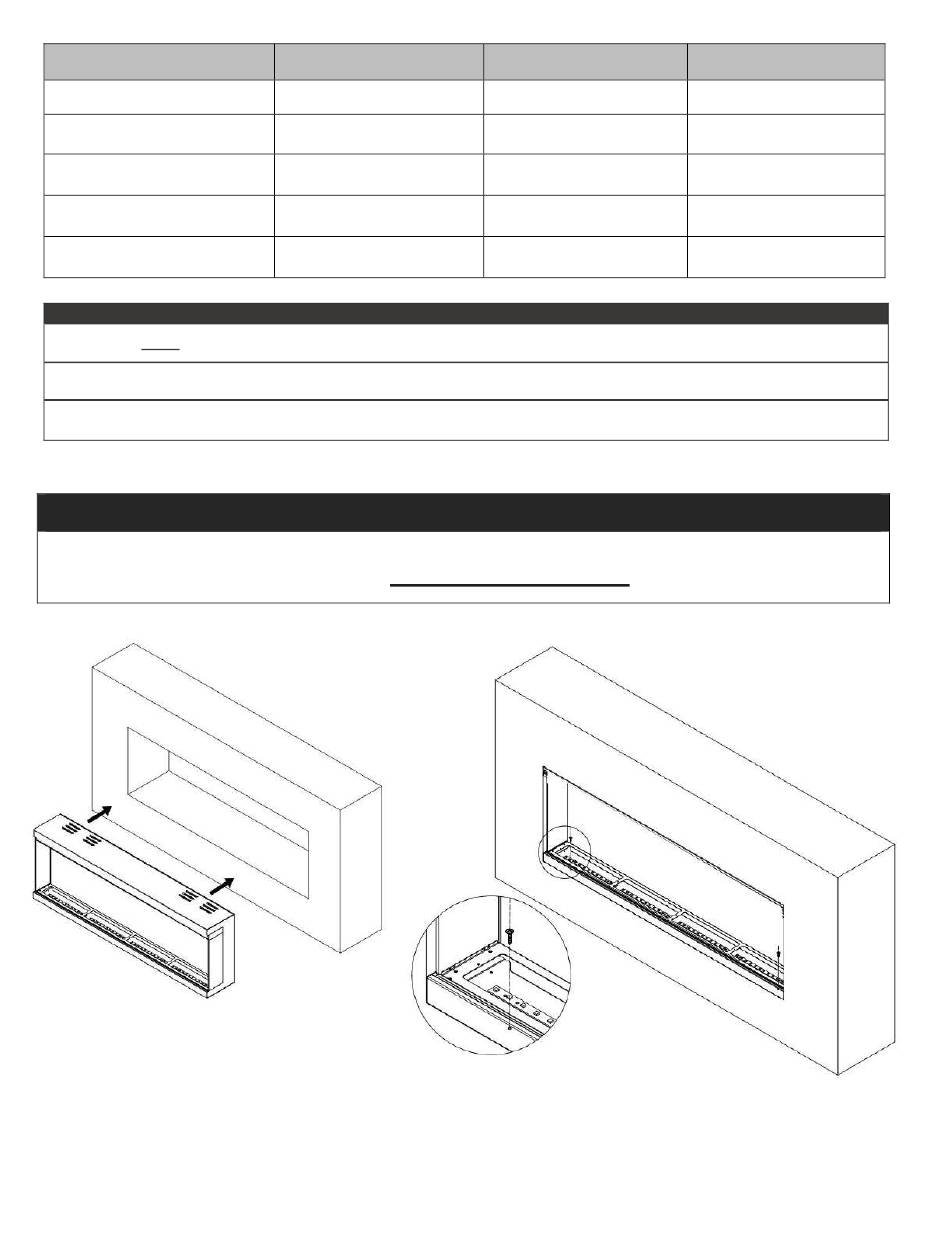

When installed fully recessed into the wall, please fix the fireplace with
supplied short wood screws (B) under the ember bed. see below illustration
W
1005mm
1205mm
1405mm
1605mm
1805mm
www.aflamo.com
D
250mm
250mm
250mm
250mm
250mm
H
470mm
470mm
470mm
470mm
470mm
