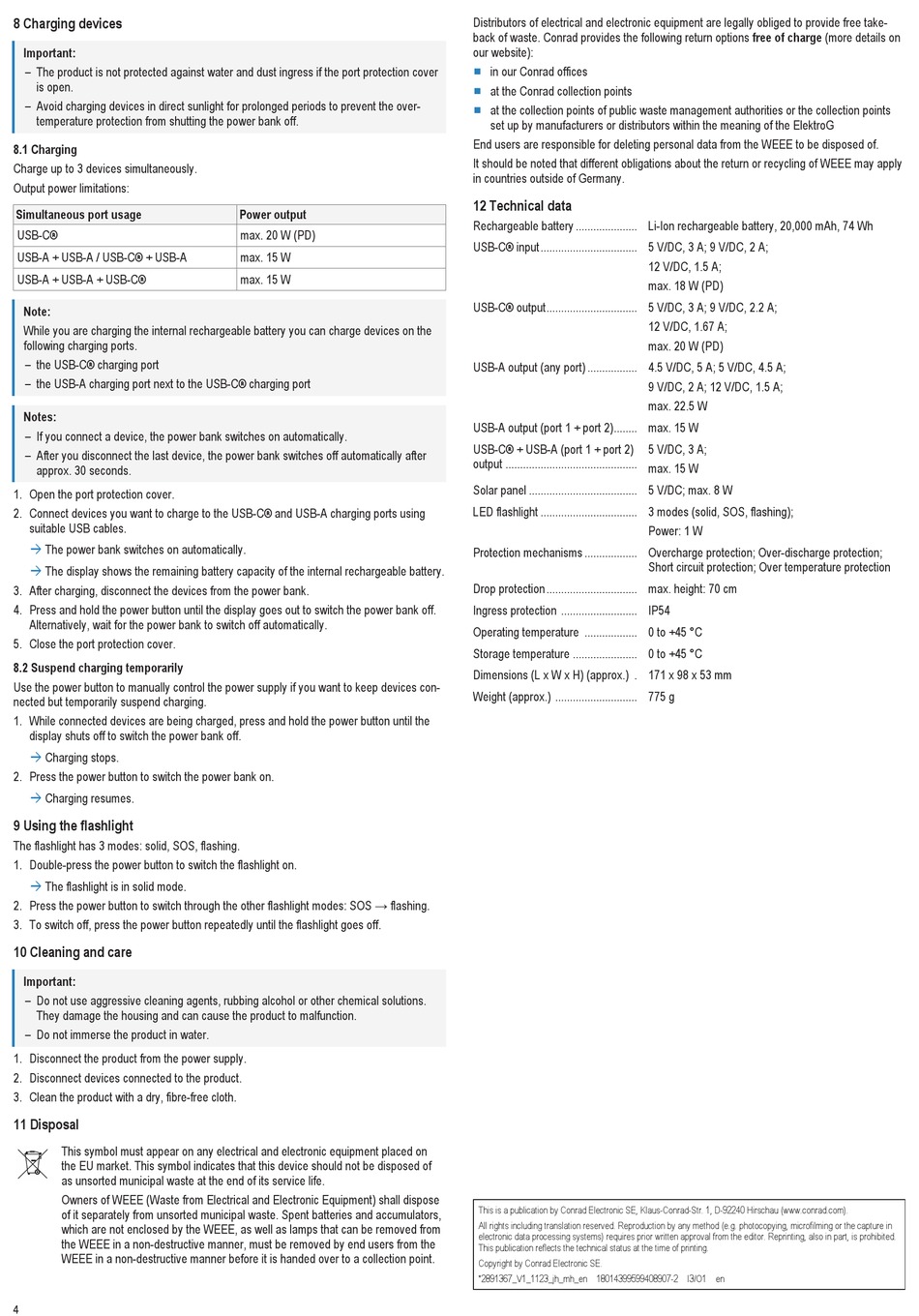

8 Charging devices

Important:
– The product is not protected against water and dust ingress if the port protection cover
is open.
– Avoid charging devices in direct sunlight for prolonged periods to prevent the over-
temperature protection from shutting the power bank off.
8.1 Charging
Charge up to 3 devices simultaneously.
Output power limitations:
Simultaneous port usage
USB-C®
USB-A + USB-A / USB-C® + USB-A
USB-A + USB-A + USB-C®
Note:
While you are charging the internal rechargeable battery you can charge devices on the
following charging ports.
– the USB-C® charging port
– the USB-A charging port next to the USB-C® charging port
Notes:
– If you connect a device, the power bank switches on automatically.
– After you disconnect the last device, the power bank switches off automatically after
approx. 30 seconds.
1. Open the port protection cover.
2. Connect devices you want to charge to the USB-C® and USB-A charging ports using
suitable USB cables.
à
The power bank switches on automatically.
à The display shows the remaining battery capacity of the internal rechargeable battery.
3. After charging, disconnect the devices from the power bank.
4. Press and hold the power button until the display goes out to switch the power bank off.
Alternatively, wait for the power bank to switch off automatically.
5. Close the port protection cover.
8.2 Suspend charging temporarily
Use the power button to manually control the power supply if you want to keep devices con-
nected but temporarily suspend charging.
1. While connected devices are being charged, press and hold the power button until the
display shuts off to switch the power bank off.
à
Charging stops.
2. Press the power button to switch the power bank on.
à Charging resumes.
9 Using the flashlight
The flashlight has 3 modes: solid, SOS, flashing.
1. Double-press the power button to switch the flashlight on.
à The flashlight is in solid mode.
2. Press the power button to switch through the other flashlight modes: SOS → flashing.
3. To switch off, press the power button repeatedly until the flashlight goes off.
10 Cleaning and care
Important:
– Do not use aggressive cleaning agents, rubbing alcohol or other chemical solutions.
They damage the housing and can cause the product to malfunction.
– Do not immerse the product in water.
1. Disconnect the product from the power supply.
2. Disconnect devices connected to the product.
3. Clean the product with a dry, fibre-free cloth.
11 Disposal
This symbol must appear on any electrical and electronic equipment placed on
the EU market. This symbol indicates that this device should not be disposed of
as unsorted municipal waste at the end of its service life.
Owners of WEEE (Waste from Electrical and Electronic Equipment) shall dispose
of it separately from unsorted municipal waste. Spent batteries and accumulators,
which are not enclosed by the WEEE, as well as lamps that can be removed from
the WEEE in a non-destructive manner, must be removed by end users from the
WEEE in a non-destructive manner before it is handed over to a collection point.
4
Power output
max. 20 W (PD)
max. 15 W
max. 15 W
Distributors of electrical and electronic equipment are legally obliged to provide free take-
back of waste. Conrad provides the following return options free of charge (more details on
our website):
■
in our Conrad offices
■
at the Conrad collection points
■
at the collection points of public waste management authorities or the collection points
set up by manufacturers or distributors within the meaning of the ElektroG
End users are responsible for deleting personal data from the WEEE to be disposed of.
It should be noted that different obligations about the return or recycling of WEEE may apply
in countries outside of Germany.

12 Technical data

Rechargeable battery ..................... Li-Ion rechargeable battery, 20,000 mAh, 74 Wh
USB-C® input................................. 5 V/DC, 3 A; 9 V/DC, 2 A;
USB-C® output............................... 5 V/DC, 3 A; 9 V/DC, 2.2 A;
USB-A output (any port) ................. 4.5 V/DC, 5 A; 5 V/DC, 4.5 A;
USB-A output (port 1 + port 2)........ max. 15 W
USB-C® + USB-A (port 1 + port 2)
output .............................................
Solar panel ..................................... 5 V/DC; max. 8 W
LED flashlight ................................. 3 modes (solid, SOS, flashing);
Protection mechanisms .................. Overcharge protection; Over-discharge protection;
Drop protection............................... max. height: 70 cm
Ingress protection .......................... IP54
Operating temperature .................. 0 to +45 °C
Storage temperature ...................... 0 to +45 °C
Dimensions (L x W x H) (approx.) . 171 x 98 x 53 mm
Weight (approx.) ............................ 775 g
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method (e.g. photocopying, microfilming or the capture in
electronic data processing systems) requires prior written approval from the editor. Reprinting, also in part, is prohibited.
This publication reflects the technical status at the time of printing.
Copyright by Conrad Electronic SE.
*2891367_V1_1123_jh_mh_en 18014399599408907-2 I3/O1 en
12 V/DC, 1.5 A;
max. 18 W (PD)
12 V/DC, 1.67 A;
max. 20 W (PD)
9 V/DC, 2 A; 12 V/DC, 1.5 A;
max. 22.5 W
5 V/DC, 3 A;
max. 15 W
Power: 1 W
Short circuit protection; Over temperature protection
