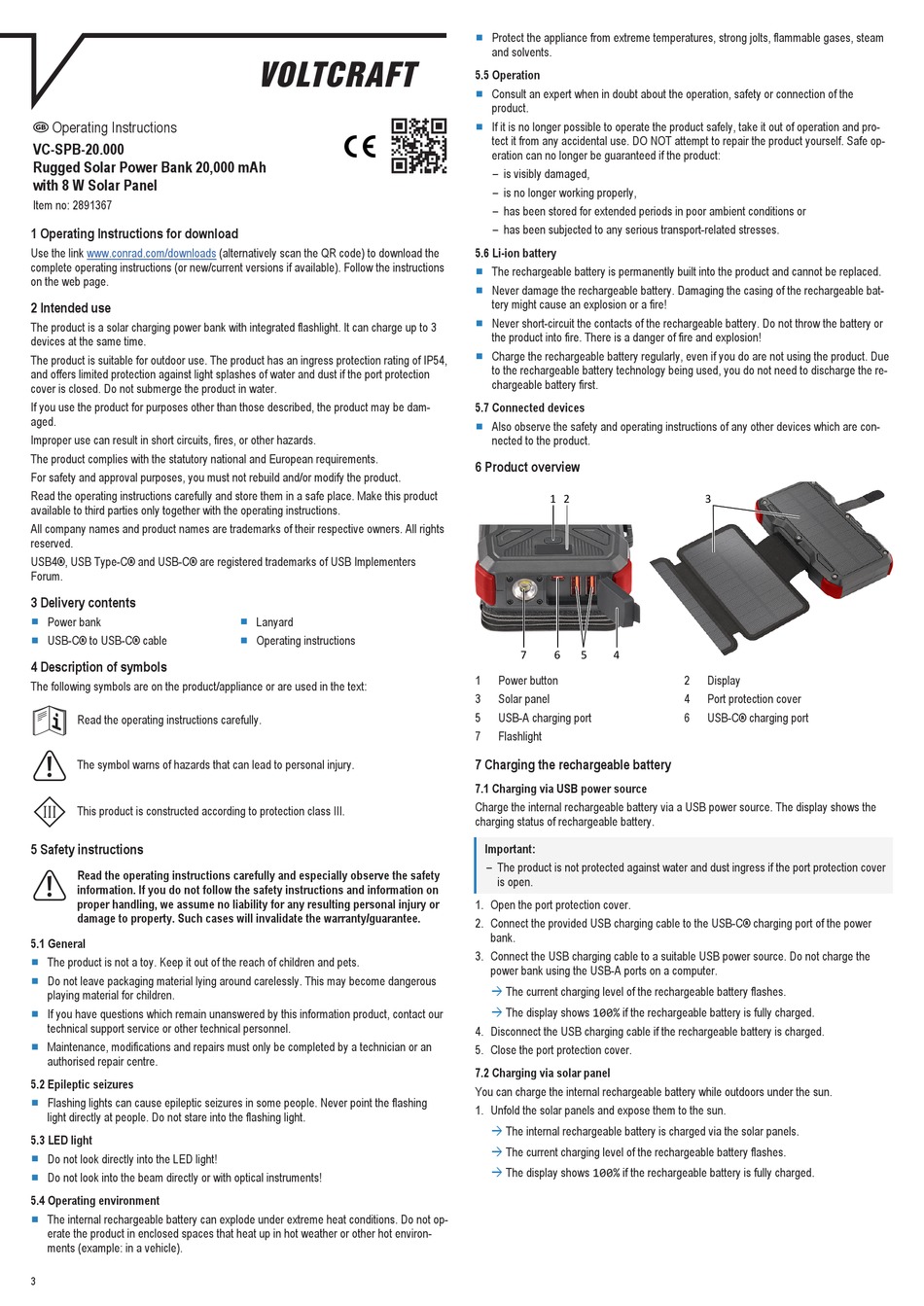

Operating Instructions
VC-SPB-20.000
Rugged Solar Power Bank 20,000 mAh
with 8 W Solar Panel
Item no: 2891367
1 Operating Instructions for download
Use the link
www.conrad.com/downloads
complete operating instructions (or new/current versions if available). Follow the instructions
on the web page.
2 Intended use
The product is a solar charging power bank with integrated flashlight. It can charge up to 3
devices at the same time.
The product is suitable for outdoor use. The product has an ingress protection rating of IP54,
and offers limited protection against light splashes of water and dust if the port protection
cover is closed. Do not submerge the product in water.
If you use the product for purposes other than those described, the product may be dam-
aged.
Improper use can result in short circuits, fires, or other hazards.
The product complies with the statutory national and European requirements.
For safety and approval purposes, you must not rebuild and/or modify the product.
Read the operating instructions carefully and store them in a safe place. Make this product
available to third parties only together with the operating instructions.
All company names and product names are trademarks of their respective owners. All rights
reserved.
USB4®, USB Type-C® and USB-C® are registered trademarks of USB Implementers
Forum.
3 Delivery contents
■
Power bank
■
USB-C® to USB-C® cable
4 Description of symbols
The following symbols are on the product/appliance or are used in the text:
Read the operating instructions carefully.
The symbol warns of hazards that can lead to personal injury.
This product is constructed according to protection class III.
5 Safety instructions
Read the operating instructions carefully and especially observe the safety
information. If you do not follow the safety instructions and information on
proper handling, we assume no liability for any resulting personal injury or
damage to property. Such cases will invalidate the warranty/guarantee.
5.1 General
■
The product is not a toy. Keep it out of the reach of children and pets.
■
Do not leave packaging material lying around carelessly. This may become dangerous
playing material for children.
■
If you have questions which remain unanswered by this information product, contact our
technical support service or other technical personnel.
■
Maintenance, modifications and repairs must only be completed by a technician or an
authorised repair centre.
5.2 Epileptic seizures
■
Flashing lights can cause epileptic seizures in some people. Never point the flashing
light directly at people. Do not stare into the flashing light.
5.3 LED light
■
Do not look directly into the LED light!
■
Do not look into the beam directly or with optical instruments!
5.4 Operating environment
■
The internal rechargeable battery can explode under extreme heat conditions. Do not op-
erate the product in enclosed spaces that heat up in hot weather or other hot environ-
ments (example: in a vehicle).
3
(alternatively scan the QR code) to download the
■
Lanyard
■
Operating instructions
■
Protect the appliance from extreme temperatures, strong jolts, flammable gases, steam
and solvents.
5.5 Operation
■
Consult an expert when in doubt about the operation, safety or connection of the
product.
■
If it is no longer possible to operate the product safely, take it out of operation and pro-
tect it from any accidental use. DO NOT attempt to repair the product yourself. Safe op-
eration can no longer be guaranteed if the product:
– is visibly damaged,
– is no longer working properly,
– has been stored for extended periods in poor ambient conditions or
– has been subjected to any serious transport-related stresses.
5.6 Li-ion battery
■
The rechargeable battery is permanently built into the product and cannot be replaced.
■
Never damage the rechargeable battery. Damaging the casing of the rechargeable bat-
tery might cause an explosion or a fire!
■
Never short-circuit the contacts of the rechargeable battery. Do not throw the battery or
the product into fire. There is a danger of fire and explosion!
■
Charge the rechargeable battery regularly, even if you do are not using the product. Due
to the rechargeable battery technology being used, you do not need to discharge the re-
chargeable battery first.
5.7 Connected devices
■
Also observe the safety and operating instructions of any other devices which are con-
nected to the product.
6 Product overview
1 2
7
6
5
4
1
Power button
3
Solar panel
5
USB-A charging port
7
Flashlight
7 Charging the rechargeable battery
7.1 Charging via USB power source
Charge the internal rechargeable battery via a USB power source. The display shows the
charging status of rechargeable battery.
Important:
– The product is not protected against water and dust ingress if the port protection cover
is open.
1. Open the port protection cover.
2. Connect the provided USB charging cable to the USB-C® charging port of the power
bank.
3. Connect the USB charging cable to a suitable USB power source. Do not charge the
power bank using the USB-A ports on a computer.
à
The current charging level of the rechargeable battery flashes.
à
The display shows 100% if the rechargeable battery is fully charged.
4. Disconnect the USB charging cable if the rechargeable battery is charged.
5. Close the port protection cover.
7.2 Charging via solar panel
You can charge the internal rechargeable battery while outdoors under the sun.
1. Unfold the solar panels and expose them to the sun.
à
The internal rechargeable battery is charged via the solar panels.
à
The current charging level of the rechargeable battery flashes.
à
The display shows 100% if the rechargeable battery is fully charged.
3
2
Display
4
Port protection cover
6
USB-C® charging port
