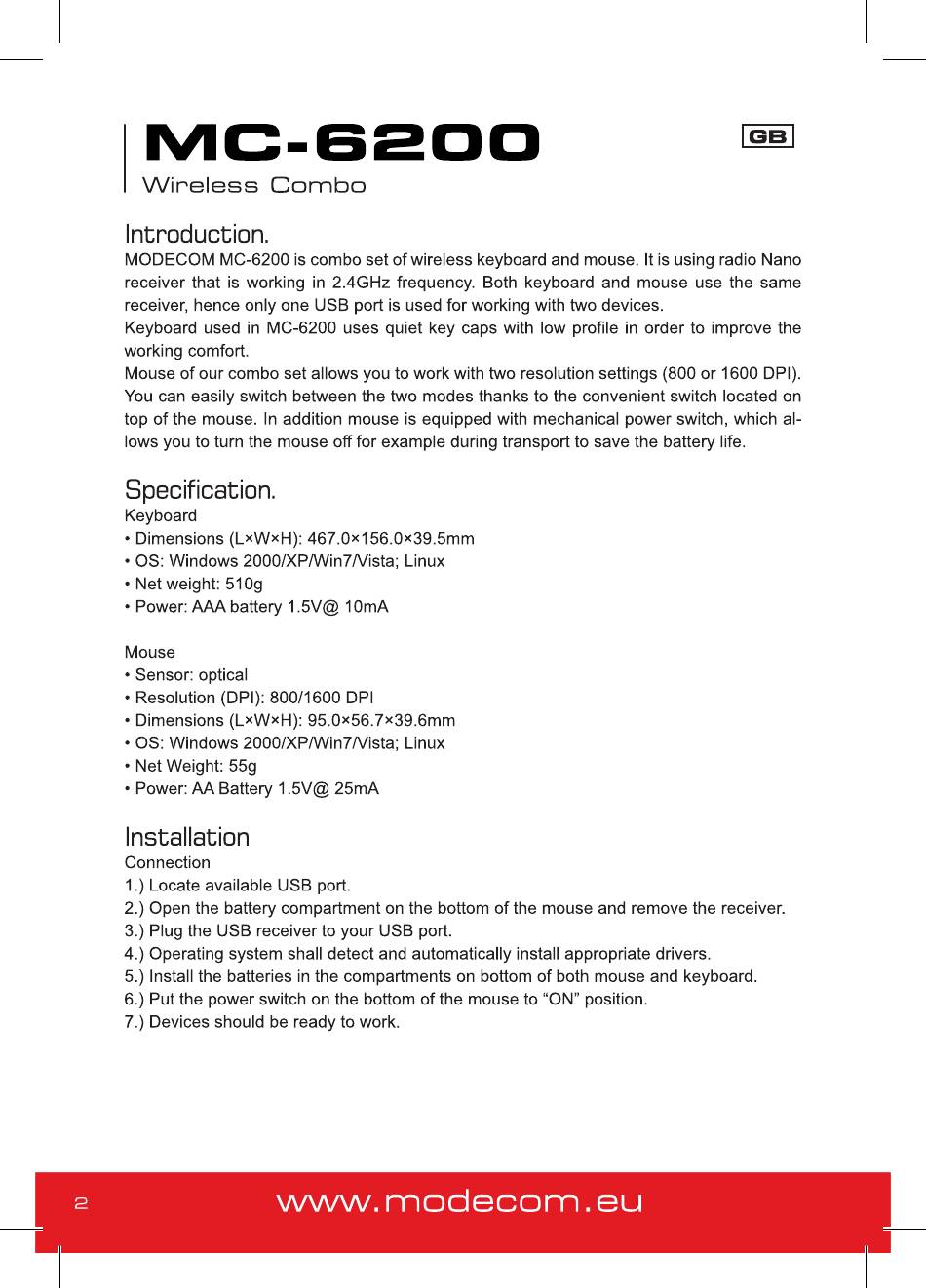

Modecom MC-6200 Bedienungsanleitung Seite 2

MC-SZOO
Wireless Combo
Introduction.
MODECOM MC-6200 is combo set of wireless keyboard and mouse. It is using radio Nano
receiver that is working in 2.4GHz frequency. Both keyboard and mouse use the same
receiver, hence only one USB port is used for working with two devices.
Keyboard used in MC-6200 uses quiet key caps with low profile in order to improve the
working comfort.
Mouse of our combo set allows you to work with two resolution settings (800 or 1600 DPI).
You can easily switch between the two modes thanks to the convenient switch located on
top Of the mouse. In addition mouse is equipped with mechanical power switch, which al-
lows you to turn the mouse off for example during transport to save the battery life.
Specification.
Keyboard
• Dimensions (LxWxH): 467.0x156.Ox39.5mm
• OS: Windows 2000/XP/Win7/Vista;
• Net weight: 510g
• Power: AAA battery 1.5V@ 10mA
Mouse
• Sensor: optical
• Resolution (DPI): 800/1600 DPI
• Dimensions (LxWxH): 95.0x56.7x39.6mm
• OS: Windows 2000/XP/Win7/Vista;
• Net Weight: 55g
• Power: AA Battery 1.5V@ 25mA
Installation
Connection
1 .) Locate available USB port.
2.) Open the battery compartment on the bottom of the mouse and remove the receiver.
3.) Plug the USB receiver to your USB port.
4.) Operating system shall detect and automatically
5.) Install the batteries in the compartments on bottom of both mouse and keyboard.
6.) Put the power switch on the bottom Of the mouse to "ON" position.
7.) Devices should be ready to work.
www.
Linux
Linux
install appropriate drivers.
modecom . eu
