Aritech DM2080I-N Installationsanweisungen

DM2080I-N Addressable
Manual Call Point Installation
Sheet
EN DE IT
EN: Installation Sheet
Description
This document contains the installation information for the UTC
Fire & Security DM2080I-N series addressable manual call
points. All models feature an integrated loop isolator and are
designed exclusively for indoor use only.
Connection

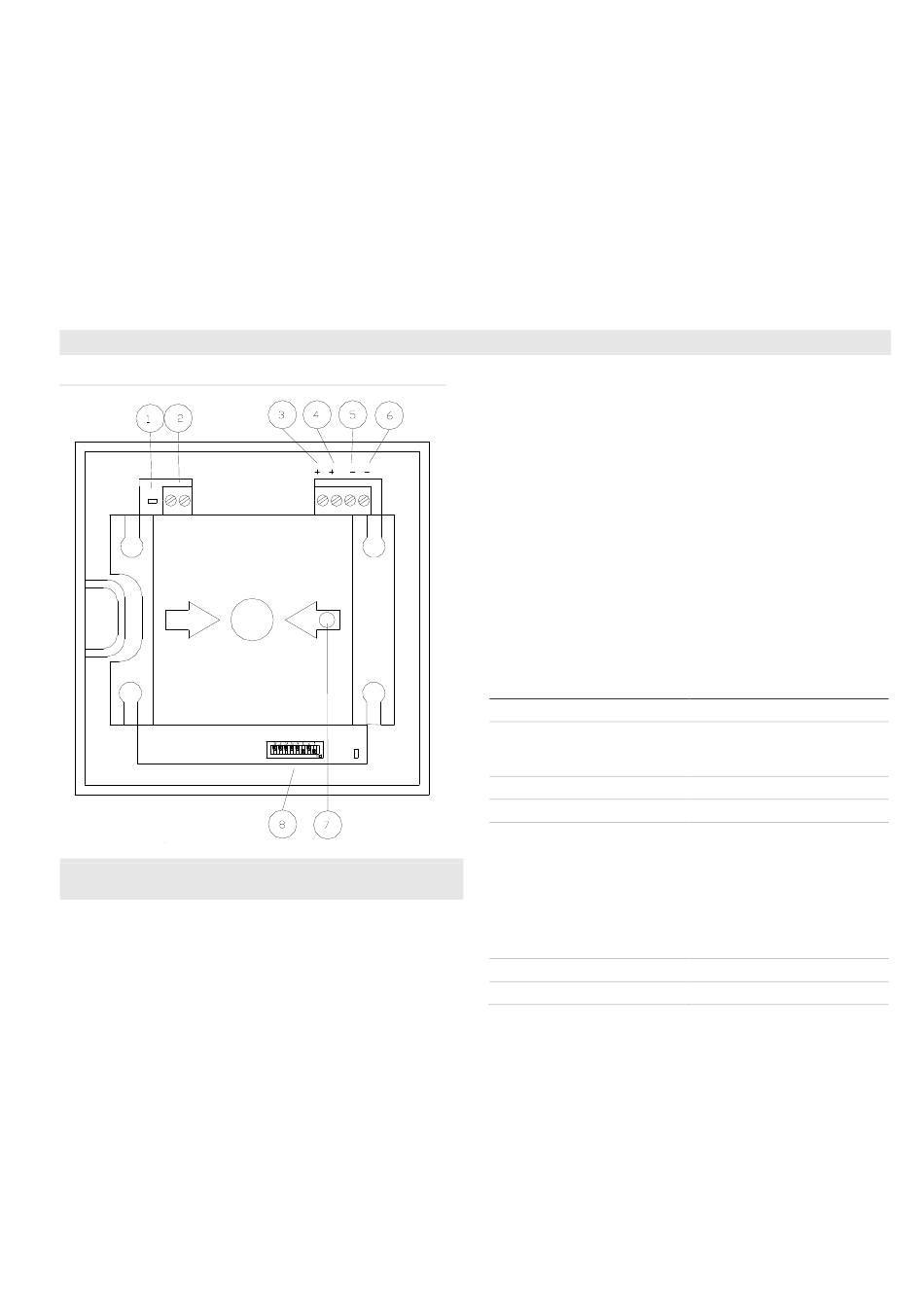

Connection, indication and location details are shown in Figure
1:
1. LED display "activated isolator"
2. Shielding
3. Loop IN (+)
www.acornfiresecurity.com
4.
5.
6.
7.
8.
Addressing
Every device requires a physical numerical address between 1
and 128 for identification purposes. This is set using DIP
switches 1-8. See the last page of this document for physical
address setting.
Maintenance
Basic maintenance is reduced to a yearly inspection. Do not
modify internal wiring or circuitry.
Technical data
Operating voltage
Current consumption:
Protection class
Operating temperature
Colour:
Dimensions (W × H × D)
Weight
www.acornfiresecurity.com
Loop OUT (+)
Loop IN (-)
Loop OUT (-)
LED display "Alarm"
DIP switches
Standby
Alarm
DM2080BI-N
DM2080FI-N
DM2080GI-N
DM2080I-N
DM2080YAI-N
DM2080YI-N
17 - 28 VDC
< 1 mA
< 4 mA
IP42
-10 to +50°C
Blue w/ Hausalarm
Red w/ House on fire symbol &
Feuerwehr
Green w/ Running man symbol
Red w/ House on fire symbol
Yellow w/ Amok Alarm
Yellow w/ Löschanlage
125 × 125 × 36 mm
225 g
