Operating Instructions MSA 2 MULTI
6

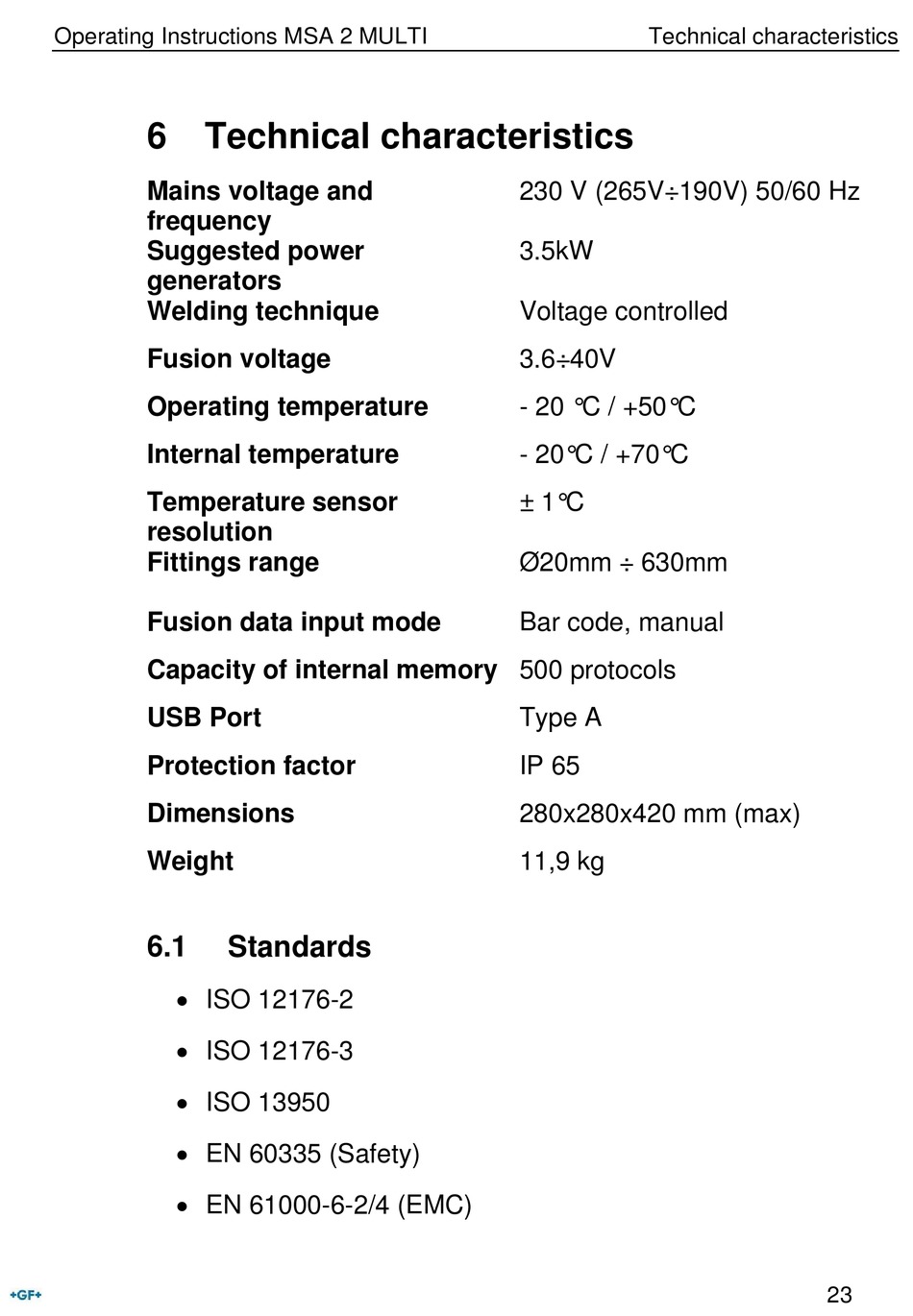

Technical characteristics

Mains voltage and
frequency
Suggested power
generators
Welding technique
Fusion voltage
Operating temperature
Internal temperature
Temperature sensor
resolution
Fittings range
Fusion data input mode
Capacity of internal memory 500 protocols
USB Port
Protection factor
Dimensions
Weight
6.1
 ISO 12176-2
 ISO 12176-3
 ISO 13950
 EN 60335 (Safety)
 EN 61000-6-2/4 (EMC)

Standards

Technical characteristics
230 V (265V÷190V) 50/60 Hz
3.5kW
Voltage controlled
3.6÷40V
- 20 °C / +50°C
- 20°C / +70°C
± 1°C
Ø20mm ÷ 630mm
Bar code, manual
Type A
IP 65
280x280x420 mm (max)
11,9 kg
23
