2.3

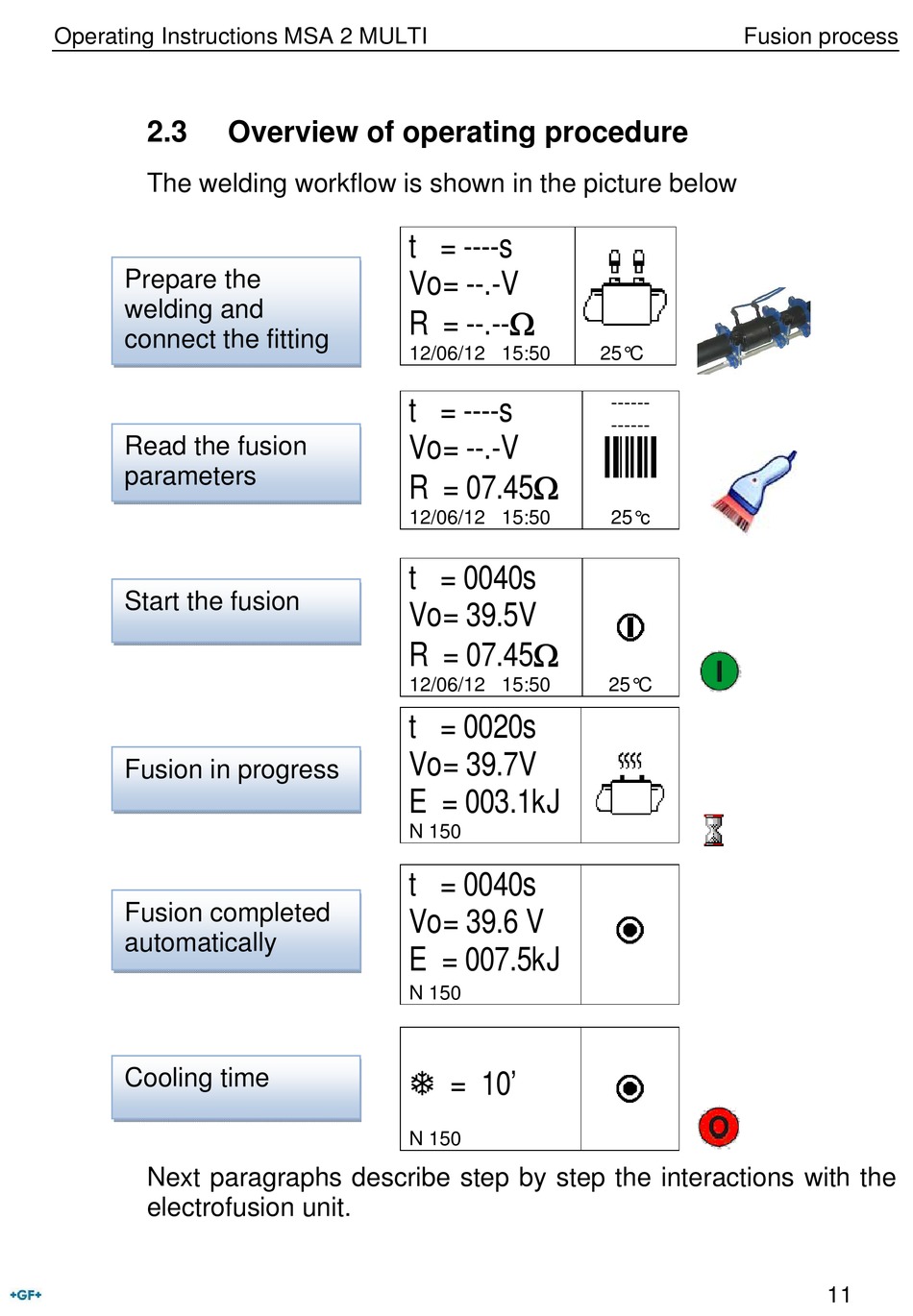

The welding workflow is shown in the picture below
Prepare the
welding and
connect the fitting
Read the fusion
parameters
Start the fusion
Fusion in progress
Fusion completed
automatically
Cooling time
Next paragraphs describe step by step the interactions with the
electrofusion unit.

Overview of operating procedure

t = ----s
Vo= --.-V
R = --.--
12/06/12 15:50
t = ----s
Vo= --.-V
R = 07.45
12/06/12 15:50
t = 0040s
Vo= 39.5V
R = 07.45
12/06/12 15:50
t = 0020s
Vo= 39.7V
E = 003.1kJ
N 150
t = 0040s
Vo= 39.6 V
E = 007.5kJ
N 150
 = 10'
N 150
Fusion process
25°C
------
------
25°c
25°C
