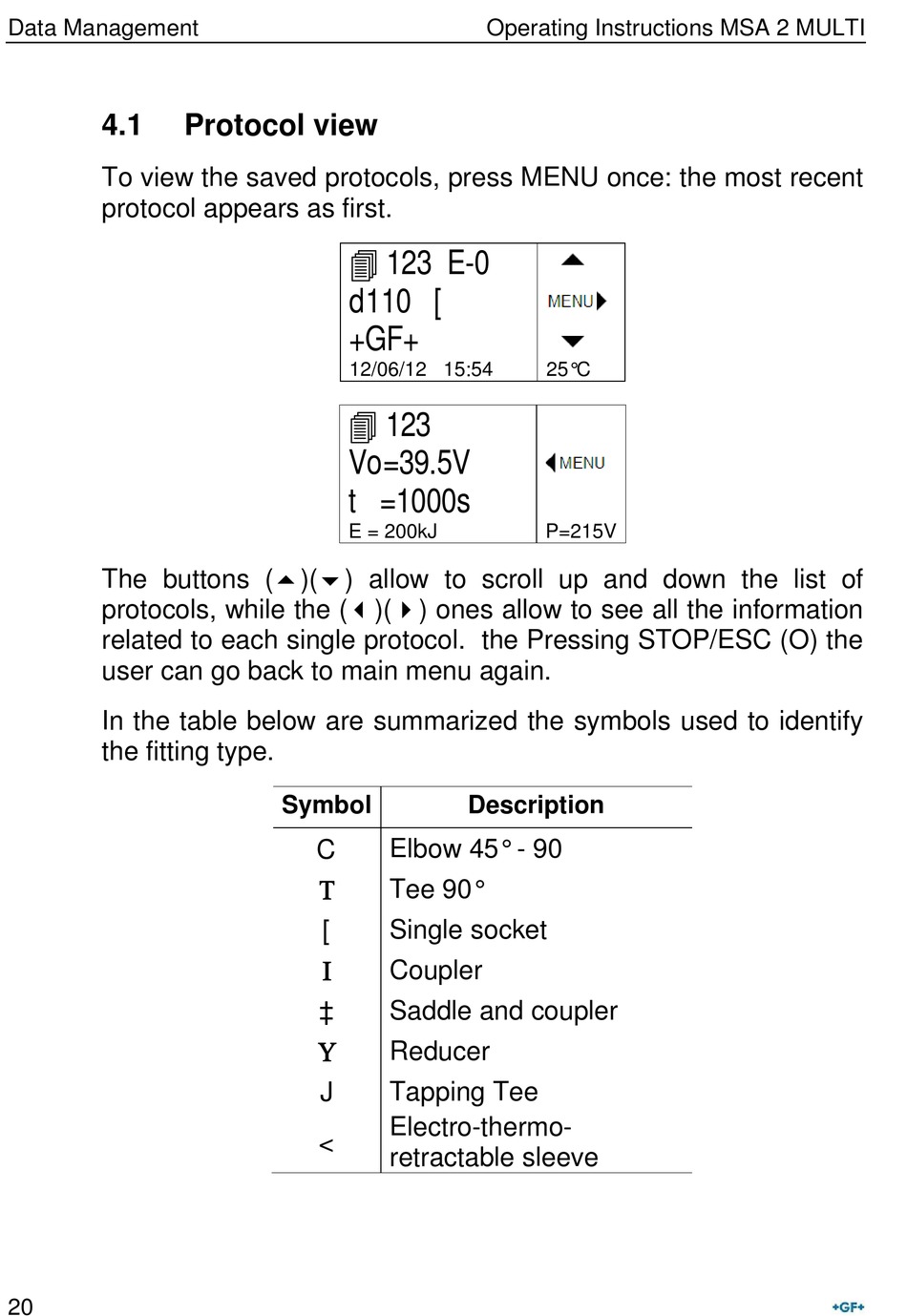

4.1
To view the saved protocols, press MENU once: the most recent
protocol appears as first.
The buttons ()() allow to scroll up and down the list of
protocols, while the ()() ones allow to see all the information
related to each single protocol. the Pressing STOP/ESC (O) the
user can go back to main menu again.
In the table below are summarized the symbols used to identify
the fitting type.
20

Protocol view

 123 E-0
d110 [
+GF+
12/06/12 15:54
 123
Vo=39.5V
t =1000s
E = 200kJ
Symbol
C

[

‡

J
<
Operating Instructions MSA 2 MULTI
25°C
P=215V
Description
Elbow 45° - 90
Tee 90°
Single socket
Coupler
Saddle and coupler
Reducer
Tapping Tee
Electro-thermo-
retractable sleeve
