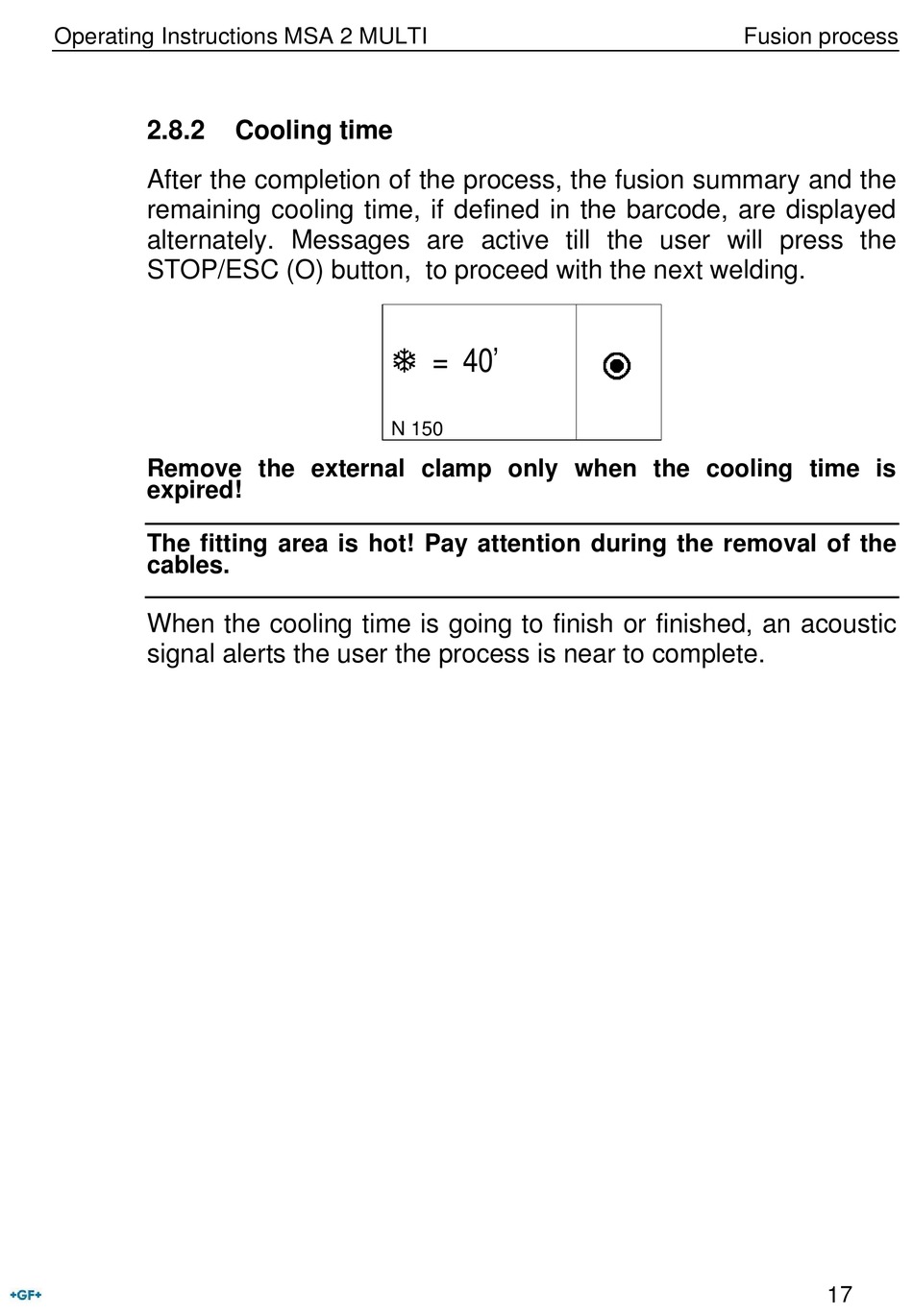

Operating Instructions MSA 2 MULTI
2.8.2
After the completion of the process, the fusion summary and the
remaining cooling time, if defined in the barcode, are displayed
alternately. Messages are active till the user will press the
STOP/ESC (O) button, to proceed with the next welding.
Remove the external clamp only when the cooling time is
expired!
The fitting area is hot! Pay attention during the removal of the
cables.
When the cooling time is going to finish or finished, an acoustic
signal alerts the user the process is near to complete.
Cooling time
= 40'
N 150
Fusion process
17
