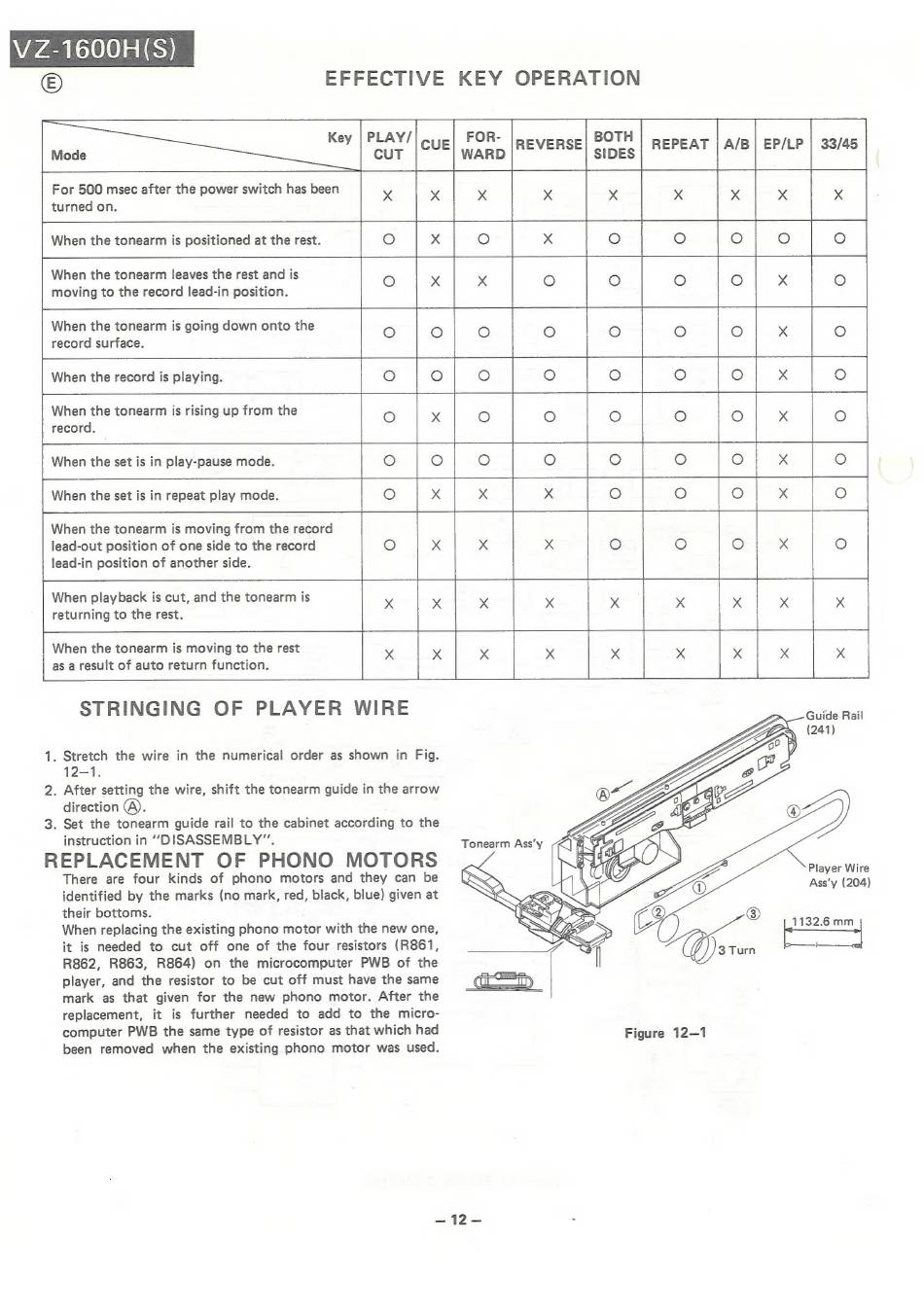

V4 161010) a es)
©
EFFECTIVE
KEY
OPERATION
For 500 msec after the power switch has been
turned on.
When the tonearm is positioned at the rest.
When the tonearm leaves the rest and is
moving to the record lead-in position.
When the tonearm is going down onto the
record surface.
When the record is playing.
When the tonearm is rising up from the
record.
When the set is in play-pause mode.
——
When the set is in repeat play mode.
=
When the tonearm is moving from the record
Xx
Xx
returning to the rest.
When the tonearm is moving to the rest
as a result of auto return function.
STRINGING
OF PLAYER
WIRE
1. Stretch the wire in the numerical
order as shown
in Fig.
12-1.
2. After setting the wire, shift the tonearm guide in the arrow
direction (A).
3. Set the tonearm guide rail to the cabinet according to the
instruction in ''DISASSEMBLY".
REPLACEMENT
OF
PHONO
MOTORS
There
are four kinds
of phono
motors and they can be
identified by the marks (no mark, red, black, blue) given at
their bottoms.
When replacing the existing phono motor with the new one,
it is needed
to cut off one of the four resistors (R861,
R862,
R863,
R864)
on
the microcomputer
PWB
of the
player, and the resistor to be cut off must have the same
mark
as that given for the new
phono motor.
After the
replacement,
it is further
needed
to add to the micro-
computer PWB the same type of resistor as that which had
been
removed
when the existing phono motor was used.
—12—
lead-out position of one side to the record
Oo
Xx
Xx
lead-in position of another side.
ts
When playback is cut, and the tonearm is
X
Xx
xX
O
x
©
O
xX
O
X
Xx
Xx
X
Player Wire
Ass'y (204)
Figure
12—1
