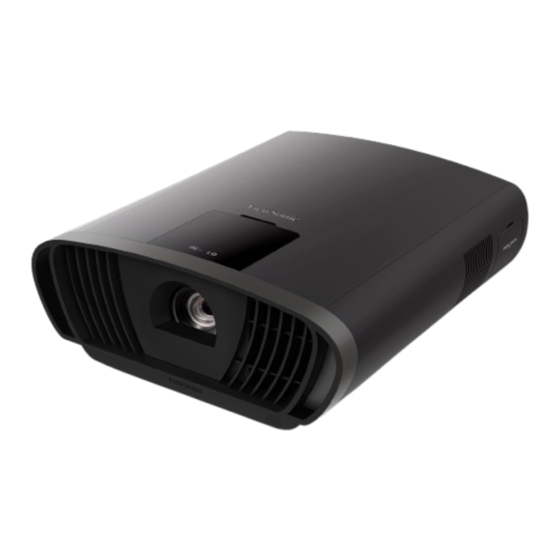

ViewSonic X-Serie Schnellstart Handbuch

X series
Lamp Free Smart Theater
Quick Start Guide
Quick Start Guide
クイックスタートガイド
4
LENS SHIFT
LENS SHIFT
1
Quick Start Guide
OK OK
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
5 Screws: M6 x 8 (Max. L = 8 mm)
Unit: mm
382.02 mm
416 mm
2
1 2
3
4
5
100-240 Vac
50/60 Hz
• 16:9 image on a 16:9 screen
183 mm
+
16:9 image on a 16:9 Screen
(a) Screen Size (b) Projection distance
(c) Image
height
m i . n m a . x
inch cm inch cm inch cm inch cm
40 101.6 41.84 106.3 50.20 127.5 19.61 49.8
463 mm
60 152.4 62.75 159.4 75.30 191.3 29.42 74.7
70 177.8 73.21 186.0 87.85 223.2 34.32 87.2
80 203.2 83.67 212.5 100.41 255.0 39.22 99.6
90 228.6 94.13 239.1 113.0 286.9 44.12 112.1
100 254.0 104.59 265.7 125.51 318.8 49.03 124.5
120 304.8 125.51 318.8 150.61 382.5 58.83 149.4
150 381.0 156.88 398.5 188.26 478.2 73.54 186.8
200 508.0 209.18 531.3 251.01 637.6 98.05 249.1
All measurements are approximate and may vary from the actual sizes. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
3
COMPUTER IN RS232
OK OK
OK
AUDIO 12V TRIGGER USB (3.0)
OUT AUX RS232 COMPUTER IN
OK OK
OK
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
a
4. Follow all instructions.
5. Do not use this unit near water.
6. Clean with a soft, dry cloth.
7. Do not block any ventilation openings. Install the unit in accordance with
the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other devices (including amplifiers) that produce heat.
b
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other.
A grounding type plug has two blades and a third grounding prong. The
wide blade and the third prong are provided for your safety. If the
provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at
plugs. Convenience receptacles and the point where they exit from the
unit. Be sure that the power outlet is located near the unit so that it is
(d) Vertical offset easily accessible.
m i . n m a . x
11. Only use attachments/accessories specified by the manufacturer.
inch cm inch cm
12. Use only with the cart, stand, tripod, bracket, or table
0 0.0 12.75 32.4
specified by the manufacturer, or sold with the unit.
0 0.0 19.12 48.6
0 0.0 22.31 56.7 When a cart is used, use caution when moving the
0 0.0 25.49 64.8
cart/unit combination to avoid injury from tipping over.
0 0.0 28.68 72.8
13. Unplug this unit when unused for long periods of time.
0 0.0 31.87 80.9
0 0.0 38.24 97.1
14. Refer all servicing to qualified service personnel. Servicing is required
0 0.0 47.80 121.4
when the unit has been damaged in any way, such as: if the
0 0.0 63.73 161.9
power-supply cord or plug is damaged, if liquid is spilled onto or objects
fall into the unit, if the unit is exposed to rain or moisture, or if the unit
does not operate normally or has been dropped.
VGA IN HDBaseT Transmit
YPbPr ter
LAN RJ45 HDMI
RS-232 RJ45
HDMI 4 HDMI 3 HDMI 2 HDMI 1
5V/2A HDCP 2.2 HDCP 2.2 HDCP 2.2 HDCP 2.2 LAN CONTROL S / PDIF WIRE IR SERVICE
