STARTER
FOR LED TUBES
DUMMY STARTER
INCLUDED
TECHNICAL DATA
VT-061
MODEL
21650,21651,21652 21653,21654,21655 21656,21657,21658 21686,21687,21798 21672,21673,21688 21674,21675,21799
SKU
9W
WATTS
LUMENS
850LM@Sphere360° 1850LM@Sphere360° 2100LM@Sphere360° 850LM@Sphere360° 1850LM@Sphere360° 3000LM@Sphere360°
>80
CRI
>0.5
DF
160°
BEAMANGLE
Plastic
BODY TYPE
IP20
IP RATING
G13
HOLDER
25,000 Hours
LONG LIFE
>15,000
ON/OFF CYCLES
600x28mm
DIMENSION
INPUT POWER
AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz AC:220-240V,50Hz
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instructions carefully
before starting the installing and keep this manual handy for future reference. If you have any another query, please contact
our dealer or local vendor from whom you have purchased the product. They are trained and ready to serve you at the
best. The warranty is valid for 5 years from the date of purchase. The warranty does not apply to damage caused by
incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any surface due to
incorrect removal and installation of the product. The products are suitable for 10-12 Hours Daily operation. Usage of
product for 24 Hours a day would void the warranty. This product is warranted for manufacturing defects only. The LED
tube can be used in hotels, o ces, factories, conference rooms, meeting rooms, commercial complexes, residential
buildings, schools, colleges, universities, hospitals, etc.
PACKAGE CONTENT
• LED Tube (1PC)
• Instruction Manual (1PC)
• Dummy Starter (1PC)
IN CASE OF ANY QUERY/ISSUE WITH THE PRODUCT, PLEASE REACH OUT TO US AT: SUPPORT@V-TAC.EU FOR MORE PRODUCTS RANGE, INQUIRY PLEASE
CONTACT OUR DISTRIBUTOR OR NEAREST DEALERS. V-TAC EUROPE LTD. BULGARIA, PLOVDIV 4000, BUL.L.KARAVELOW 9B
INSTRUCTION MANUAL

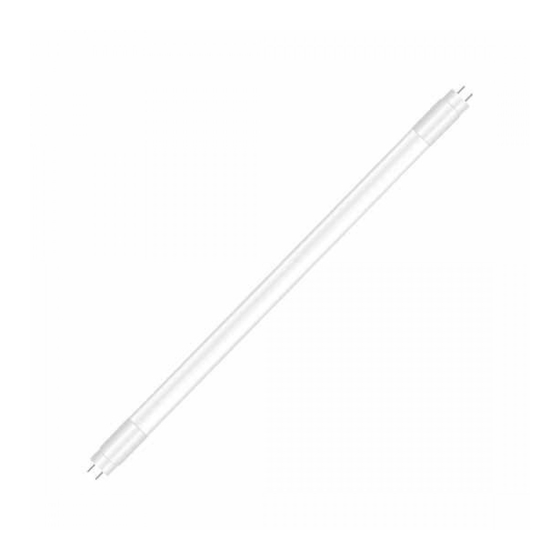

T8 LED TUBES
VT-121
18W
>80
>0.7
160°
Plastic
IP20
G13
25,000 Hours
25,000 Hours
>15,000
>15,000
1200x28mm
1500x28mm
180°
ROTATING
VT-151
VT-062
20W
7.5W
>80
>80
>0.7
>0.5
160°
160°
Plastic
Plastic
IP20
IP20
G13
G13
25,000 Hours
>15,000
600x28mm
WEEE Number : 80133970
H
W
VT-122
VT-152
16.5W
24W
>80
>80
>0.7
>0.7
160°
160°
Plastic
Plastic
IP20
IP20
G13
G13
25,000 Hours
25,000 Hours
>15,000
>15,000
1200x28mm
1500x28mm
